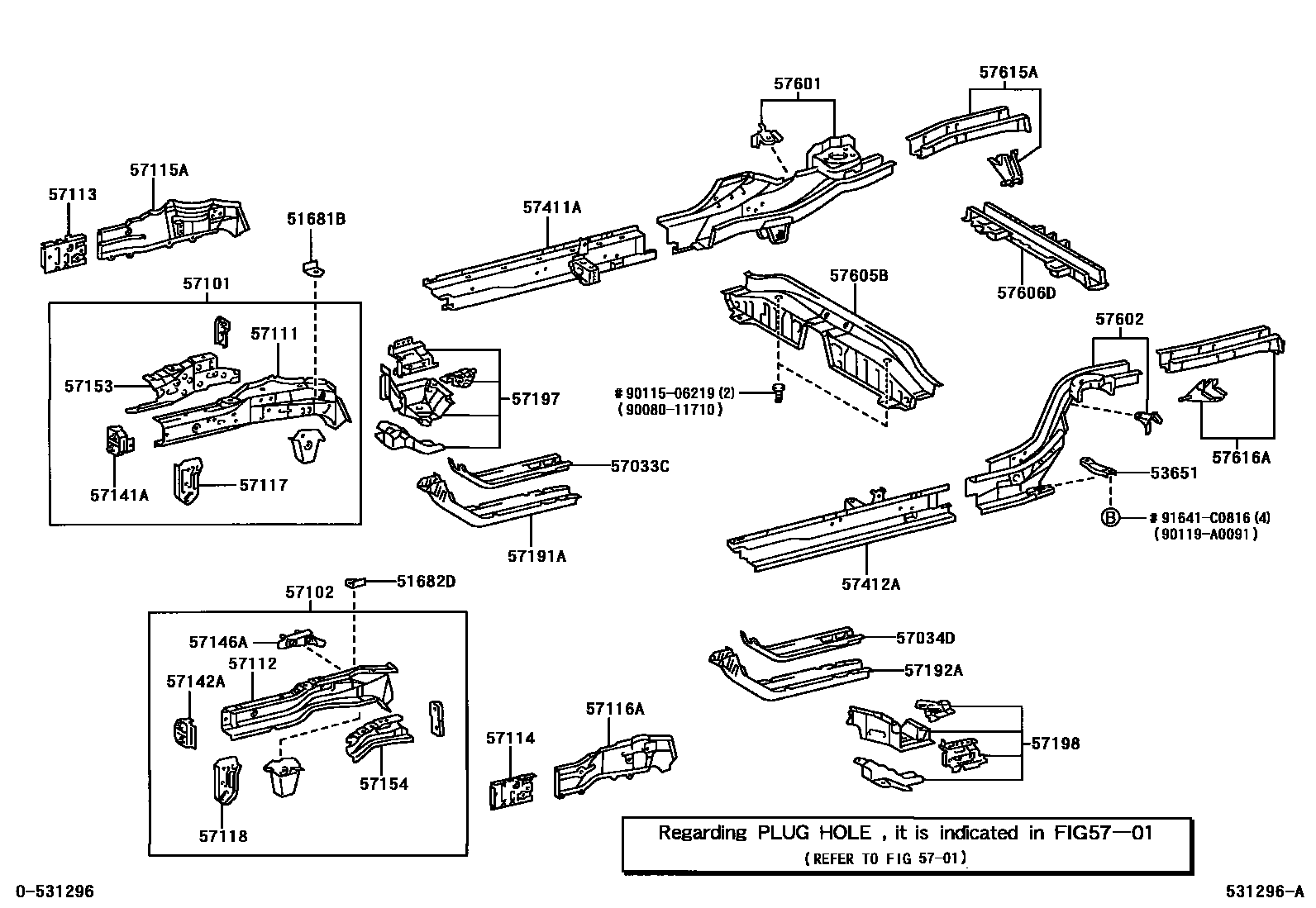

FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

5701

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-13010iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-13010iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02902iZZE130..JPP200204-200405

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57112-1A900iZZE130..JPP200204-200405

57111MEMBER, FRONT SIDE, RH

main57111-02050iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57112MEMBER, FRONT SIDE, LH

main57112-02080iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02040iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02040iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-02020iZZE130..JPP200405

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-02010iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-13020iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12060iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-13010iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-13010iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57197BOX, TORQUE, FRONT RH

main57197-12900iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57198BOX, TORQUE, FRONT LH

main57198-12900iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12590iZZE130..JPP200405

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12600iZZE130..JPP200204-200405

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02914iZZE130..5F;ZZE130..CND200308-200405

main57601-1A912iZZE130..JPP200204-200308

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02911iZZE130..5F;ZZE130..CND200308-200405

main57602-1A912iZZE130..JPP200204-200308

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12240iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-12180iZZE130..JPP200204-200402

main57606-12181iZZE130..JPP200402-200405

main57606-13151iZZE130..JPP200405

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12910iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-02907iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

9008011710

main90080-11710

9011506219

main90115-06219

90119A0091

main90119-A0091

91641C0816

main91641-C0816

37 parts on this diagram · 1 diagram in section
