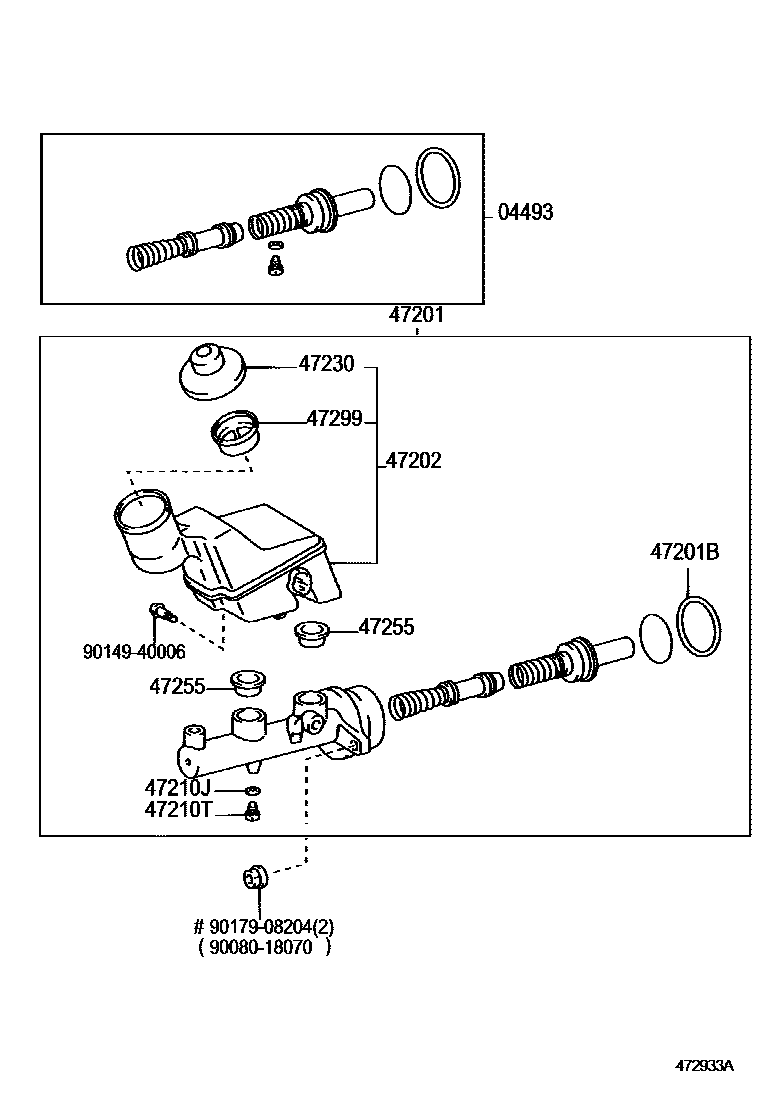

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-01020iZZE130..JPP..4FC200204-200405

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02290iZZE130..JPP..5F200304-200405

W(ABS)

main47201-02300iZZE130..JPP..4FC200204-200405

W(ABS)

main47201-02310iZZE130..JPP..5F200304-200405

main47201-02320iZZE130..JPP..4FC200204-200405

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE130..JPP200204-200405

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02130iZZE130..JPP..5F200304-200405

main47220-02140iZZE130..JPP..4FC200204-200405

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE130..JPP200204-200405

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iZZE130..JPP200204-200405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iZZE130..JPP200204-200405

sub47230-01031

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iZZE130..JPP200204-200405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZZE130..JPP200204-200405

9008018070

main90080-18070

9014940006

main90149-40006

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
