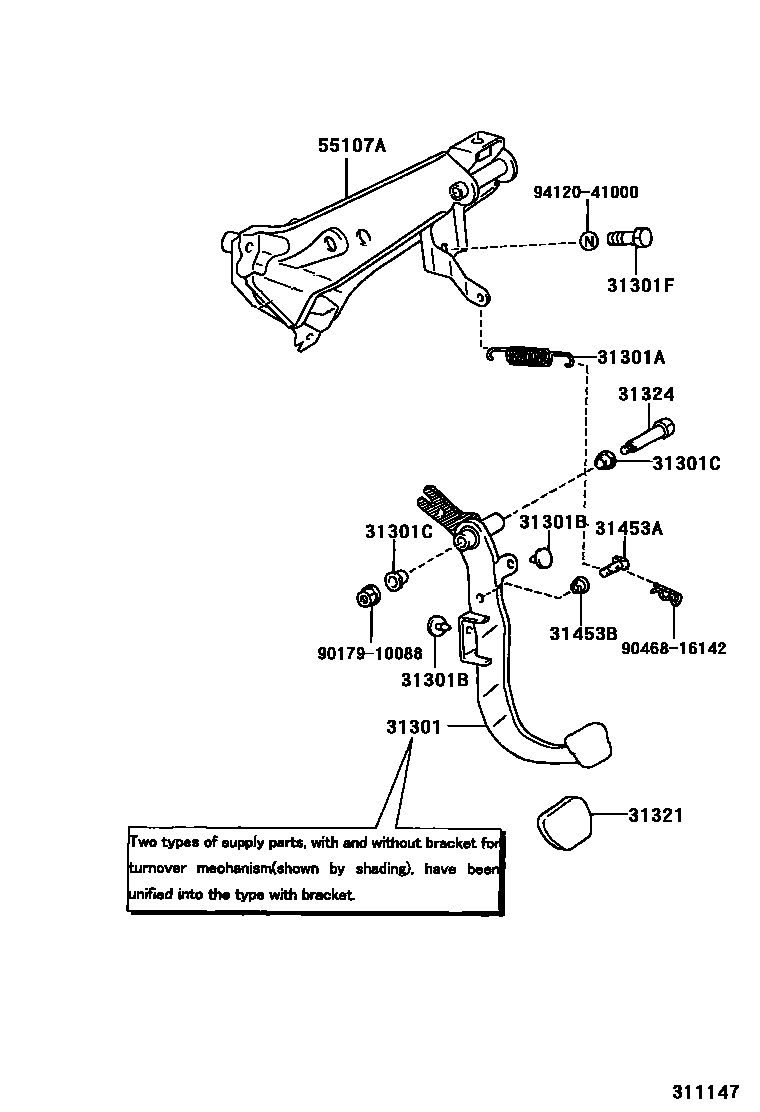

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12500iZZE130..5F200304-200405

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14050iZZE130..5F200304-200405

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZE130..5F200304-200405

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZE130..5F200304-200405

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZE130..5F200304-200405

31321PAD, CLUTCH PEDAL

main31321-52010iZZE130..5F200304-200405

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZE130..5F200304-200405

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iZZE130..5F200304-200405

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE130..5F200304-200405

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12250iZZE130..JPP..5F200304-200405

sub55107-12260

9017910088

main90179-10088

9046816142

main90468-16142

9412041000

main94120-41000

13 parts on this diagram · 2 diagrams in section
