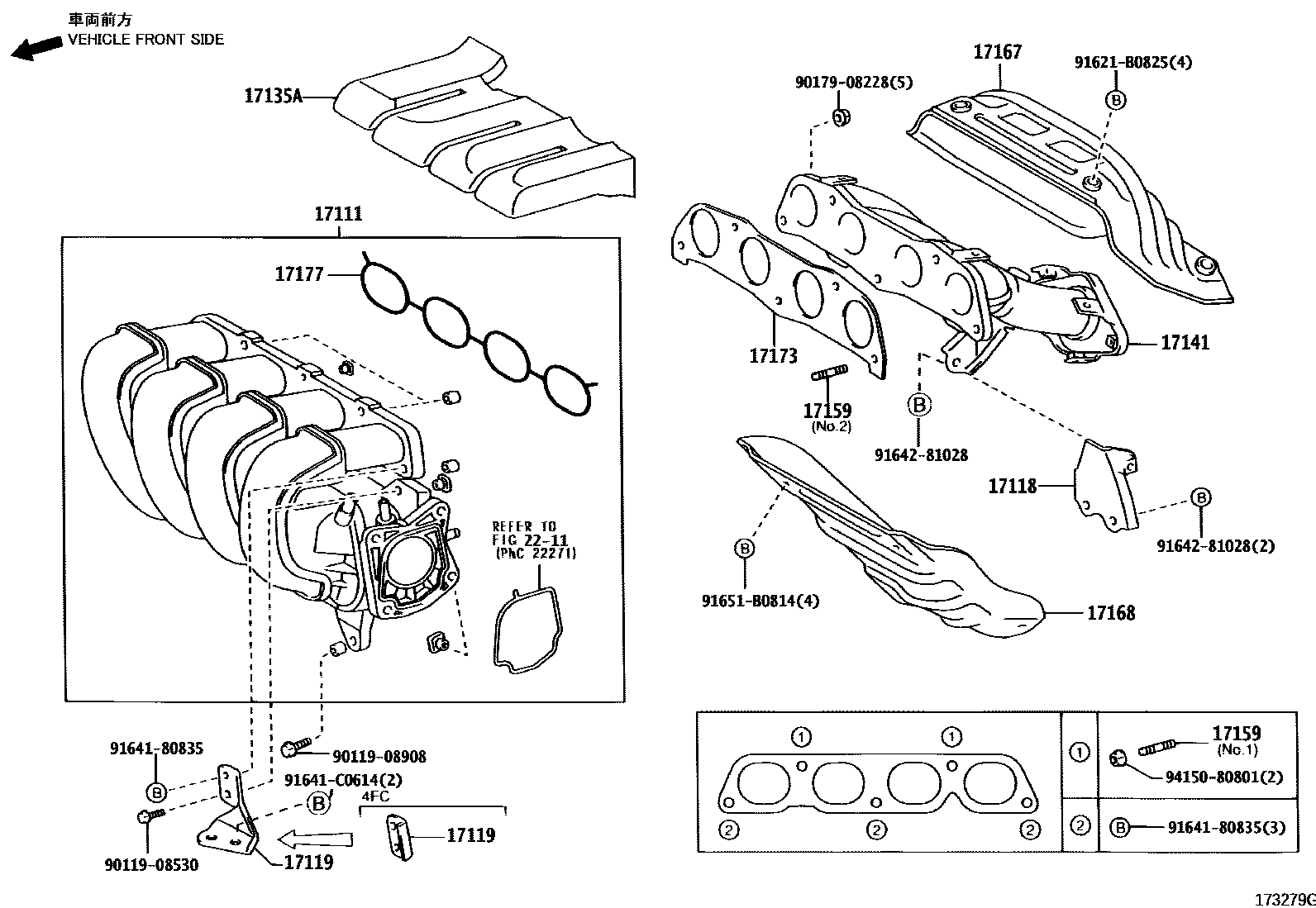

MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
9011908530
main90119-08530
9011908908
main90119-08908
9017908228
main90179-08228
91621B0825
main91621-B0825
9164180835
main91641-80835
91641C0614
main91641-C0614
9164281028
main91642-81028
91651B0814
main91651-B0814
9415080801
main94150-80801
20 parts on this diagram · 1 diagram in section
