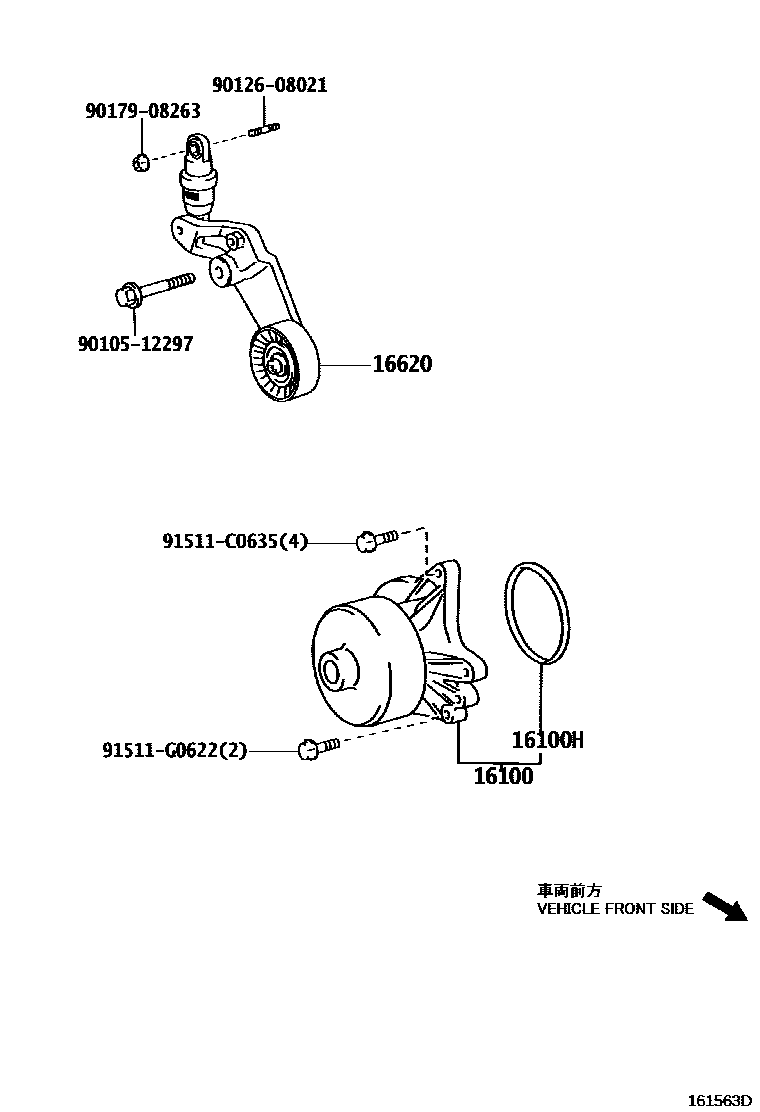

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-29175i1ZZFE..ZZE130..JPP200204-200405

sub16100-29415

main16100-29415i1ZZFE..ZZE130..JPP200405

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZE130..JPP200204-200405

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22011i1ZZFE..ZZE130..JPP200405-200412

sub16620-22012

main16620-22012i1ZZFE..ZZE130..JPP200204-200609

sub16620-22013

main16620-22013i1ZZFE..ZZE130..JPP200609

sub16620-0W093

9010512297

main90105-12297

9012608021

main90126-08021

9017908263

main90179-08263

91511C0635

main91511-C0635

91511G0622

main91511-G0622

8 parts on this diagram · 1 diagram in section
