WIRING & CLAMP

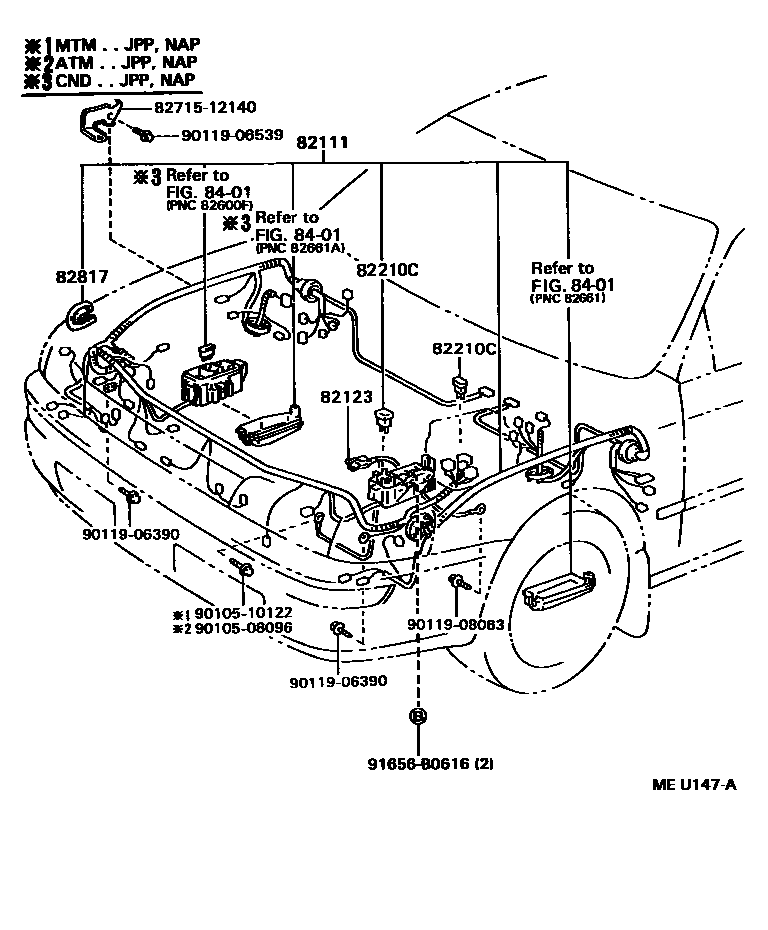

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-13330i199206-199402
W(*RW)
main82111-13331i199402-199411
W(*RW)
main82111-13332i199411-199508
W(*RW)
main82111-13390i199508-199608
W(*RW)
main82111-1E170i199508-199608
BRAZIL SPEC & W(*CRC)
main82111-1E180i199508-199608
BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)
main82111-1E190i199508-199608
W(*CRC)
main82111-1E200i199508-199608
W(ABS)
main82111-1E500i199206-199401
FINLAND OR DENMARK SPEC
main82111-1E501i199401-199405
BRAZIL SPEC
main82111-1E502i199411-199508
BRAZIL SPEC
main82111-1E510i199206-199401
FINLAND SPEC & W(*CRC) OR DENMARK SPEC & W(*CRC)
main82111-1E511i199401-199411
BRAZIL SPEC & W(*CRC)
main82111-1E512i199411-199508
BRAZIL SPEC & W(*CRC)
main82111-1E520i199206-199308
W(ABS)
main82111-1E530i199206-199401
main82111-1E531i199401-199411
main82111-1E532i199411-199508
main82111-1E540i199206-199401
W(*CRC)
main82111-1E541i199401-199411
W(*CRC)
main82111-1E542i199411-199508
W(*CRC)
main82111-1E550i199206-199308
W(ABS)
main82111-1E560i199206-199401
W(ANTI THEFT DEVICE)
main82111-1E561i199401-199408
W(ANTI THEFT DEVICE)
main82111-1E562i199408-199411
W(ANTI THEFT DEVICE)
main82111-1E563i199411-199508
W(ANTI THEFT DEVICE)
main82111-1H040i199308-199401
W(ABS)
main82111-1H041i199401-199411
BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)
main82111-1H042i199411-199505
BRAZIL SPEC & W(ABS)
main82111-1H043i199505-199508
BRAZIL SPEC & W(ABS & *66)
main82111-1H050i199308-199401
W(ABS)
main82111-1H051i199401-199411
W(ABS)
main82111-1H052i199411-199505
W(ABS)
main82111-1H053i199505-199508
W(ABS)
main82111-1H480i199508-199608
BRAZIL SPEC
main82111-1H490i199508-199608
main82111-1H500i199508-199608
W(ANTI THEFT DEVICE)
82123WIRE, ENGINE, NO.3
main82123-12220i199505
main82123-12230i199206-199505
main82123-12240i199206-199505
main82123-12250i199505
82210CFUSIBLE LINK
main90982-08188×2i199206
30A,TERM.:FEMALE,PNK
main90982-08228i199408-199508
50A,TERM.:MALE,RED
main90982-08246i199206
100A,TERM.:MALE,BLUE
main90982-08257i199206
40A,TERM.:MALE,GRN
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-1A090×2i199206-199411
8401
8271512140BRACKET,WIRING HARNESS CLAMP
main82715-12140
9010508096
main90105-08096
9010510122
main90105-10122
9011906390
main90119-06390
9011906539
main90119-06539
9011908063
main90119-08063
91656B0616
main91656-B0616

12 parts on this diagram · 9 diagrams in section
