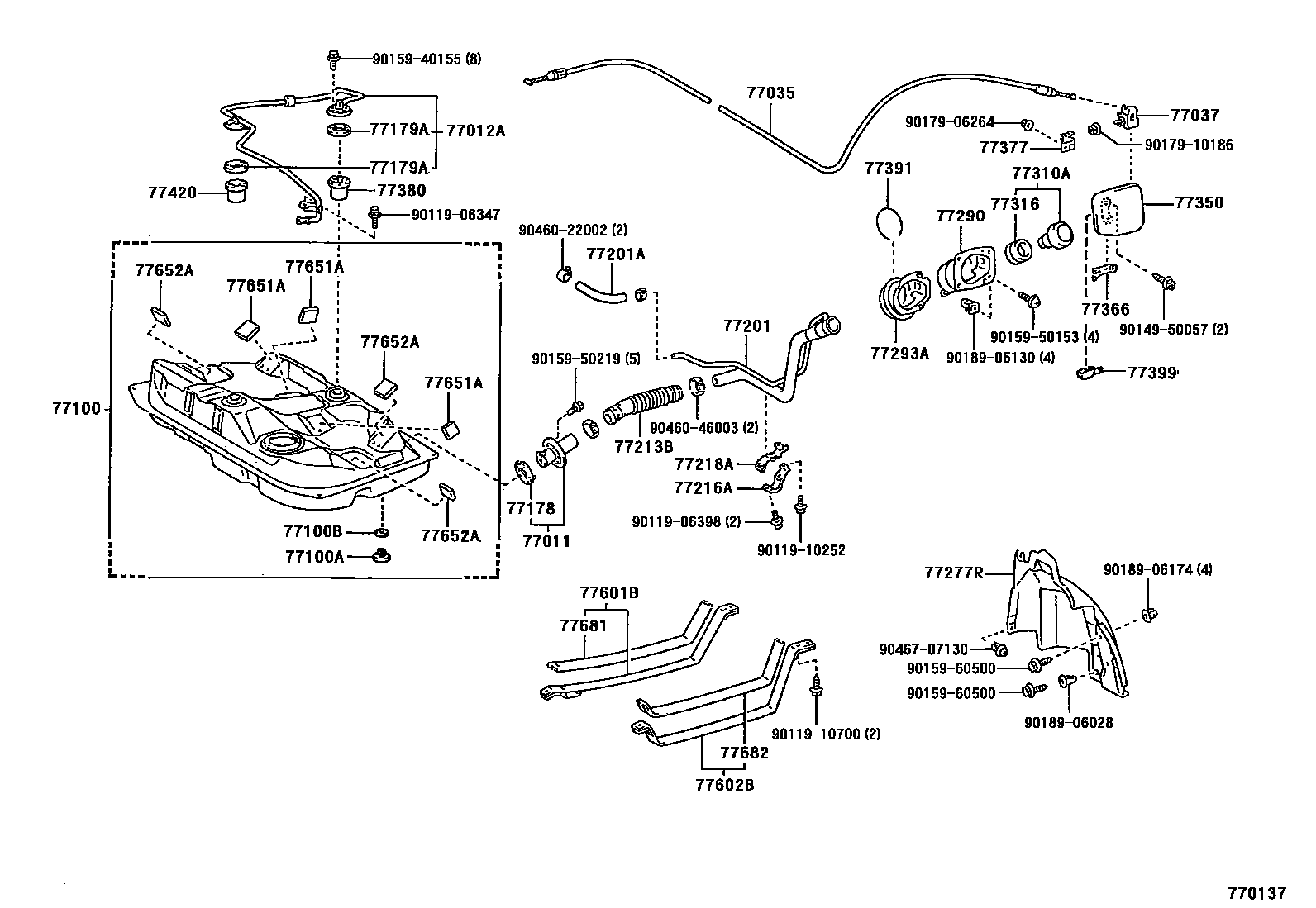

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100APLUG(FOR FUEL TANK)
FINLAND SPEC OR DENMARK SPEC
BRAZIL SPEC
77100BGASKET(FOR FUEL TANK)
BRAZIL SPEC
FINLAND SPEC OR DENMARK SPEC
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=220
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77399HANGER, FUEL TANK CAP
77420VALVE ASSY, FUEL CUT OFF, NO.2
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77651ACUSHION, FUEL TANK, NO.1
60X60
60 X 60
60 X 100
100X60
77652ACUSHION, FUEL TANK, NO.2
9011906347
main90119-06347
9011906398
main90119-06398
9011910252
main90119-10252
9011910700
main90119-10700
9014950057
main90149-50057
9015940155
main90159-40155
9015950153
main90159-50153
9015950219
main90159-50219
9015960500
main90159-60500
9017906264
main90179-06264
9017910186
main90179-10186
9018905130
main90189-05130
9018906028
main90189-06028
9018906174
main90189-06174
9046022002
main90460-22002
9046046003
main90460-46003
9046707130
main90467-07130
49 parts on this diagram · 3 diagrams in section
