REAR SEAT & SEAT TRACK

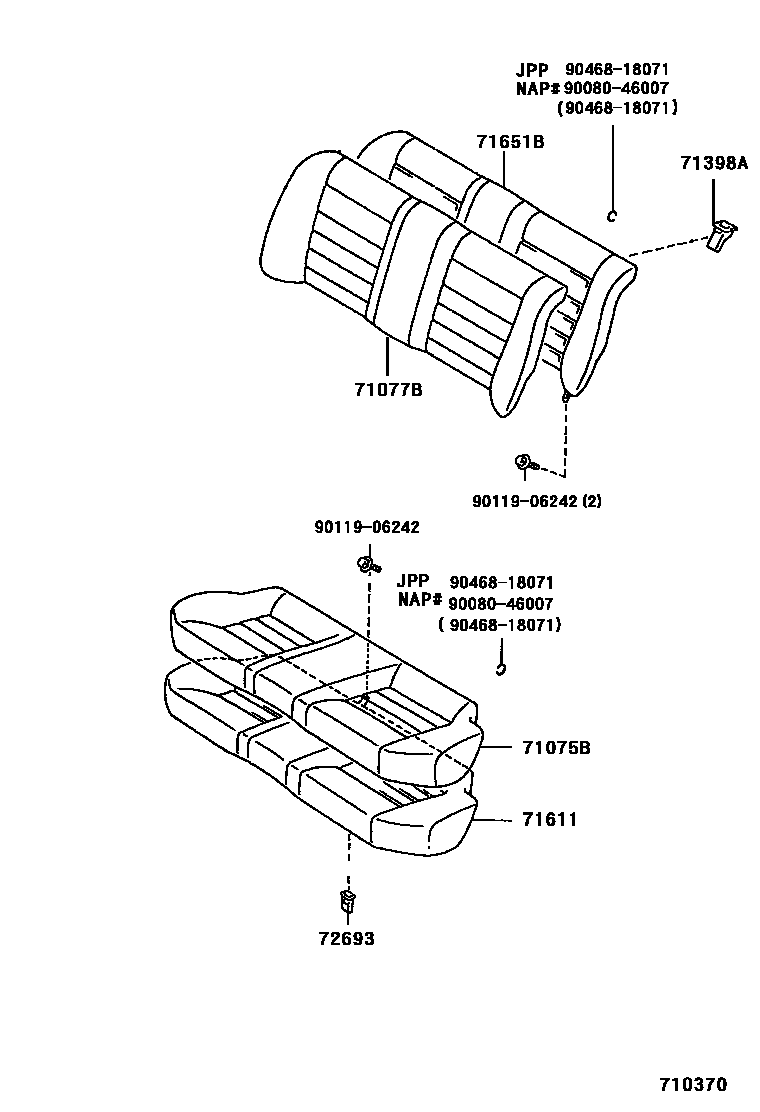

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71065-1E080-B1i199206-199308
SHADOW GRAY,TRIM1#
main71065-1E080-J1i199206-199308
DARK BLUE,TRIM8#
main71065-1E080-K1i199206-199308
TAUPE,TRIM9#
main71065-1E081-B1i199308-199408
SHADOW GRAY,TRIM1#
main71065-1E081-B2i199408-199508
SHADOW GRAY,TRIM1#
main71065-1E081-J1i199308-199408
DARK BLUE,TRIM8#
main71065-1E081-J2i199408-199508
DARK BLUE,TRIM8#
main71065-1E081-K2i199308-199408
TAUPE,TRIM9#
main71065-1E081-K3i199408-199508
TAUPE,TRIM9#
main71065-1E140-B1i199206-199308
SHADOW GRAY,TRIM1#
main71065-1E140-J1i199206-199308
DARK BLUE,TRIM8#
main71065-1E140-K1i199206-199308
TAUPE,TRIM9#
main71065-1E141-B1i199308-199508
SHADOW GRAY,TRIM1#
main71065-1E141-J2i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main71065-1E141-K1i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main71065-1E142-B2i199508-199704
SHADOW GRAY,TRIM1#
main71065-1E142-E0i199508-199704
OAK,TRIM4#
main71065-1E142-J3i199508-199704
DARK BLUE,TRIM8#
main71065-1E150-B1i199206-199210
SHADOW GRAY,TRIM1#
main71065-1E150-J1i199206-199210
DARK BLUE,TRIM8#
main71065-1E150-K0i199206-199308
TAUPE,TRIM9#
main71065-1E151-K0i199308-199408
TAUPE,TRIM9#
main71065-1E152-E0i199508-199704
OAK,TRIM4#
main71065-1E152-K1i199408-199508
TAUPE,TRIM9#
main71065-1E250-B0i199210-199308
SHADOW GRAY,TRIM1#
main71065-1E250-J0i199210-199308
DARK BLUE,TRIM8#
main71065-1E251-B0i199308-199408
SHADOW GRAY,TRIM1#
main71065-1E251-J0i199308-199408
DARK BLUE,TRIM8#
main71065-1E252-B1i199408-199508
SHADOW GRAY,TRIM1#
main71065-1E252-J1i199408-199508
DARK BLUE,TRIM8#
main71075-13470-B1i199206-199210
SHADOW GRAY,TRIM1#
main71075-13470-J1i199206-199210
DARK BLUE,TRIM8#
main71075-13470-K0i199206-199408
TAUPE,TRIM9#
main71075-13471-E0i199508-199704
OAK,TRIM4#
main71075-13471-K1i199408-199508
TAUPE,TRIM9#
main71075-13520-B0i199210-199408
SHADOW GRAY,TRIM1#
main71075-13520-J0i199210-199408
DARK BLUE,TRIM8#
main71075-13521-B1i199408-199704
SHADOW GRAY,TRIM1#
main71075-13521-J1i199408-199704
DARK BLUE,TRIM8#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-1K750-B1i199206-199508
SHADOW GRAY,TRIM1#
main71077-1K750-J1i199206-199508
DARK BLUE,TRIM8#
main71077-1K750-K1i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main71077-1K751-B2i199508-199704
SHADOW GRAY,TRIM1#
main71077-1K751-E0i199508-199704
OAK,TRIM4#
main71077-1K751-J2i199508-199704
DARK BLUE,TRIM8#
71398AHOLDER, REAR SEATBACK
main71398-12030×3i199308-199508
STANDARD PACKAGE(FX**)
main71398-12050×2i199508
71611PAD, REAR SEAT CUSHION
main71503-12040i199508
main71503-12060i199508
main71611-13180i199206
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-12100i199308-199508
STANDARD PACKAGE(FX**)
72693HOOK, REAR SEAT CUSHION LOCK
main72693-32020×2i199206
sub72693-20060
9008046007
main90080-46007
9011906242
main90119-06242
9046818071
main90468-18071

9 parts on this diagram · 6 diagrams in section
