EPC Data

BACK DOOR PANEL & GLASS

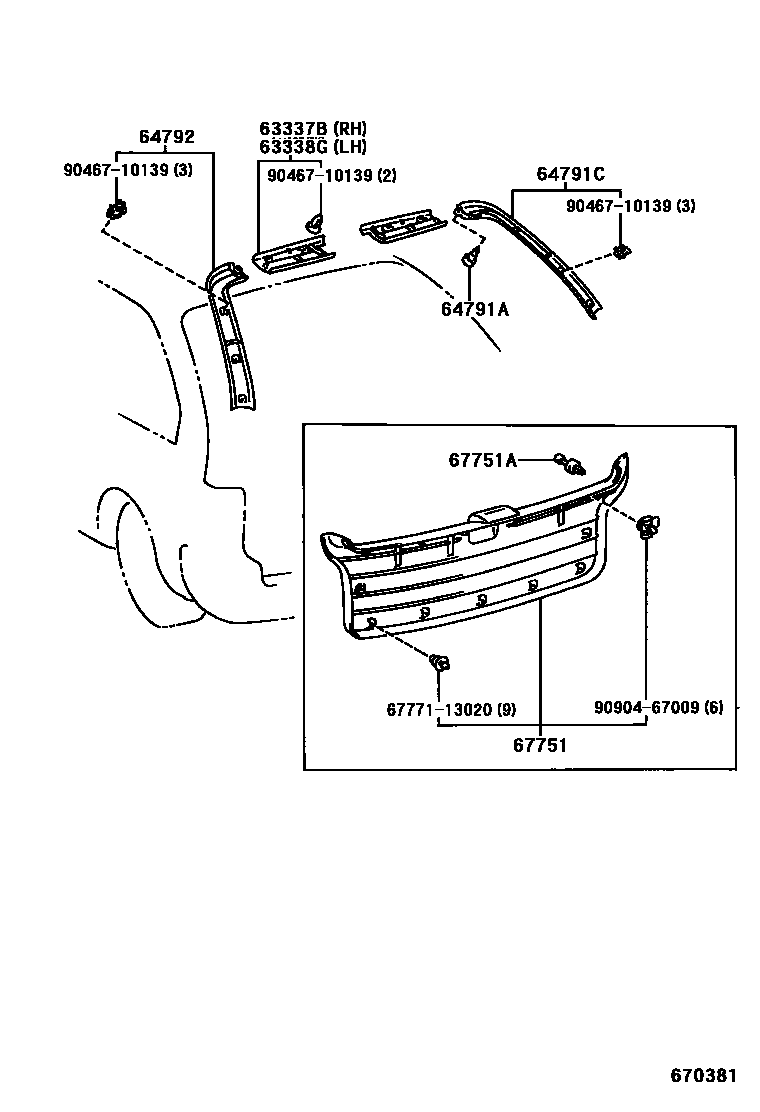

Parts diagram
63337BCOVER, BACK DOOR OPENING FRAME, UPPER RH
main63337-13020-B0i199206
SHADOW GRAY,TRIM1#
main63337-13020-E0i199508
OAK,TRIM4#
main63337-13020-J0i199206
DARK BLUE,TRIM8#
main63337-13020-K0i199206-199508
TAUPE,TRIM9#
63338GCOVER, BACK DOOR OPENING FRAME, UPPER LH
main63337-13020-B0i199206
SHADOW GRAY,TRIM1#
main63337-13020-E0i199508
OAK,TRIM4#
main63337-13020-J0i199206
DARK BLUE,TRIM8#
main63337-13020-K0i199206-199508
TAUPE,TRIM9#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-07041-P0×2i199210-199704
SHADOW GRAY,TRIM1#
main90467-07076-03×2i199206-199210
SHADOW GRAY,TRIM1#
sub90467-A0016
main90467-07076-E3×2i199508-199704
OAK,TRIM4#
sub90467-A0016
main90467-07076-K0×2i199206-199508
TAUPE,TRIM9#
sub90467-A0016
main90467-07076-W3×2i199206-199704
DARK BLUE,TRIM8#
sub90467-A0016
64791CCOVER, BACK DOOR TRIM, RH
main64791-13040-B0i199206
SHADOW GRAY,TRIM1#
main64791-13040-E0i199508
OAK,TRIM4#
main64791-13040-J0i199206
DARK BLUE,TRIM8#
main64791-13040-K0i199206-199508
TAUPE,TRIM9#
64792COVER, BACK DOOR TRIM, LH
main64792-13020-B0i199206
SHADOW GRAY,TRIM1#
main64792-13020-E0i199508
OAK,TRIM4#
main64792-13020-J0i199206
DARK BLUE,TRIM8#
main64792-13020-K0i199206-199508
TAUPE,TRIM9#
67751BOARD, BACK DOOR TRIM
main67751-13150-B0i199605
SHADOW GRAY,TRIM1#
main67751-13150-E0i199508
OAK,TRIM4#
main67751-13150-J0i199605
DARK BLUE,TRIM8#
main67751-13150-K0i199206-199508
TAUPE,TRIM9#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-05062-B0×2i199206-199704
SHADOW GRAY,TRIM1#
main90467-05062-E3×2i199508-199704
OAK,TRIM4#
main90467-05062-J1×2i199206-199704
DARK BLUE,TRIM8#
main90467-05062-K0×2i199206-199508
TAUPE,TRIM9#
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-13020
9046710139
main90467-10139
9090467009
main90904-67009

10 parts on this diagram · 2 diagrams in section
