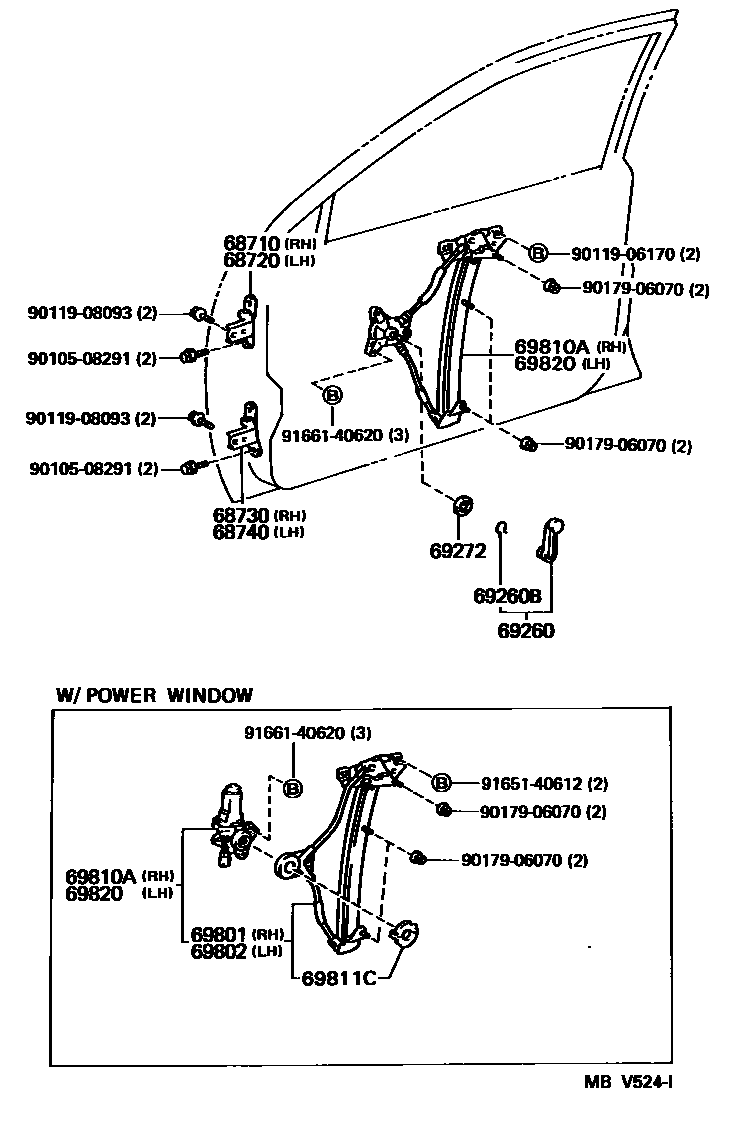

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE10#..JPP199206-199510

main68710-12150iAE10#..JPP199510-199704

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE10#..JPP199206-199510

main68720-12150iAE10#..JPP199510-199704

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE10#..JPP199206-199510

main68730-12110iAE10#..JPP199510-199704

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE10#..JPP199206-199510

main68740-12110iAE10#..JPP199510-199704

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07×2iAE10#..JPP..(D,N)199206-199704

DARK BLUE,TRIM8#

sub69260-16010

main69260-10040-42×2iAE10#..JPP..(D,N)199206-199508

TAUPE,TRIM9#

sub69260-16010

main69260-10040-43×2iAE10#..JPP..(D,N)199206-199704

GRAY,TRIM1#

sub69260-16010

main69260-10040-E1×2iAE10#..JPP199508-199704

OAK,TRIM4#

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iAE10#..JPP..(D,N)199206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE10#..JPP..(D,N)199206

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12140iAE102..JPP..E;AE102..JPP..SED..CND199206-199308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12140iAE102..JPP..E;AE102..JPP..SED..CND199206-199308

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02030iAE10#..JPP..(D,N)199306-199312

(L)

main69810-02031iAE10#..JPP..(D,N)199312-199402

(L)

main69810-02032iAE10#..JPP..(D,N)199402

(L)

main69810-12380iAE10#..JPP..(D,N)199206-199310

(J)

main69810-12381iAE10#..JPP..(D,N)199310-199607

(J)

main69810-12382iAE10#..JPP199607

main69810-12390iAE102..JPP..WG..USA199206-199508

W(ANTI-THEFT DEVICE) OR W(*PW)

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040×2iAE10#..JPP..N;AE101..JPP..USA199508

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02030iAE10#..JPP..(D,N)199306-199312

(L)

main69820-02031iAE10#..JPP..(D,N)199312-199402

(L)

main69820-02032iAE10#..JPP..(D,N)199402

(L)

main69820-12380iAE10#..JPP..(D,N)199206-199310

(J)

main69820-12381iAE10#..JPP..(D,N)199310-199607

(J)

main69820-12382iAE10#..JPP199607

main69820-12390iAE10#..JPP..CND;AE102..JPP..SED..N..USA199401-199508

W(POWER WINDOW)

9010508291

main90105-08291

9011906170

main90119-06170

9011908093

main90119-08093

9017906070

main90179-06070

9165140612

main91651-40612

9166140620

main91661-40620

18 parts on this diagram · 1 diagram in section
