DECK BOARD & DECK TRIM COVER

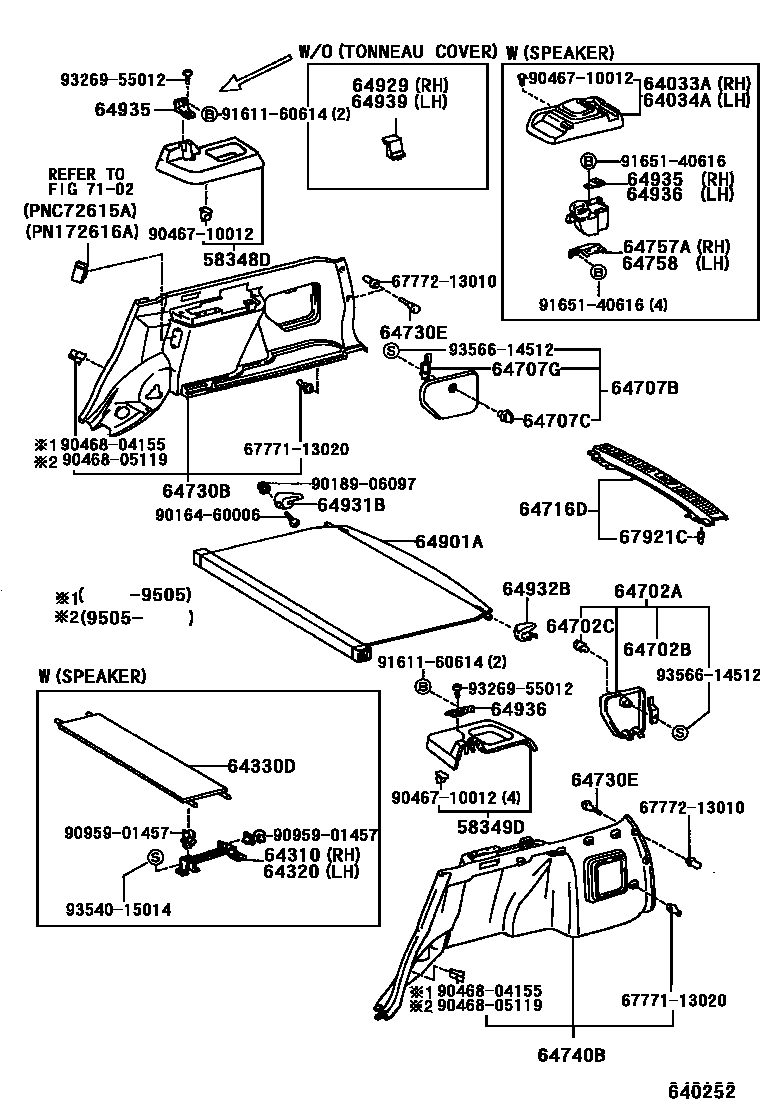

Parts diagram
58348DCOVER, REAR ABSORBER SERVICE HOLE, RH
main58348-13050-E0i199508
W(TONNEAU COVER),OAK,TRIM4#
main58348-13050-K0i199206-199508
W(TONNEAU COVER),TAUPE,TRIM8#
main58348-13050-P0i199206
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main58348-13050-W3i199206
W(TONNEAU COVER),DARK BLUE,TRIM8#
main58348-13060-E0i199508
OAK,TRIM4#
main58348-13060-K0i199206-199508
TAUPE,TRIM9#
main58348-13060-P0i199206
SHADOW GRAY,TRIM1#
main58348-13060-W3i199206
DARK BLUE,TRIM8#
58349DCOVER, REAR ABSORBER SERVICE HOLE, LH
main58349-13060-E0i199508
W(TONNEAU COVER),OAK,TRIM4#
main58349-13060-K0i199206-199508
W(TONNEAU COVER),TAUPE,TRIM9#
main58349-13060-P0i199206
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main58349-13060-W3i199206
W(TONNEAU COVER),DARK BLUE,TRIM8#
main58349-13070-E0i199508
OAK,TRIM4#
main58349-13070-K0i199206-199508
TAUPE,TRIM9#
main58349-13070-P0i199206
SHADOW GRAY,TRIM1#
main58349-13070-W3i199206
DARK BLUE,TRIM8#
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64370-13020-E1i199508-199704
OAK,TRIM4#
main64370-13020-K0i199206-199508
TAUPE,TRIM9#
main64370-13020-P0i199206-199704
SHADOW GRAY,TRIM1#
main64370-13020-W3i199206-199704
DARK BLUE,TRIM8#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64370-13030-E0i199508-199704
OAK,TRIM4#
main64370-13030-K0i199206-199508
TAUPE,TRIM9#
main64370-13030-P0i199206-199704
SHADOW GRAY,TRIM1#
main64370-13030-W3i199206-199704
DARK BLUE,TRIM8#
64310BRACKET, PACKAGE TRAY TRIM, RH
main64301-13010i199206
64320BRACKET, PACKAGE TRAY TRIM, LH
main64302-13010i199206
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-13010-J1i199206-199308
DARK BLUE,TRIM8#
main64330-13010-K0i199206-199308
TAUPE,TRIM9#
main64330-13010-P0i199206-199308
SHADOW GRAY,TRIM1#
main64330-13011-E0i199508
OAK,TRIM4#
main64330-13011-J1i199308
DARK BLUE,TRIM8#
main64330-13011-K0i199308-199508
TAUPE,TRIM9#
main64330-13011-P0i199308
SHADOW GRAY,TRIM1#
64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
main64702-13040-E1i199508-199704
OAK,TRIM4#
main64702-13040-K0i199206-199508
TAUPE,TRIM9#
main64702-13040-P0i199206-199704
SHADOW GRAY,TRIM1#
main64702-13040-W3i199206-199704
DARK BLUE,TRIM8#
64702BSTOPPER, WASHER TANK COVER
main64981-13010i199206
64702CKNOB, WASHER TANK COVER
main64982-13010-B0i199605
SHADOW GRAY,TRIM1#
main64982-13010-E0i199508
OAK,TRIM4#
main64982-13010-J0i199206-199509
DARK BLUE,TRIM8#
main64982-13010-K0i199206-199508
TAUPE,TRIM9#
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-13070-K0i199206-199401
TAUPE,TRIM9#
main64707-13070-P0i199206-199401
SHADOW GRAY,TRIM1#
main64707-13070-W3i199206-199401
DARK BLUE,TRIM8#
main64707-13080-B1i199401-199704
SHADOW GRAY,TRIM1#
main64707-13080-E0i199508-199704
OAK,TRIM4#
main64707-13080-J0i199401-199704
DARK BLUE,TRIM8#
main64707-13080-K0i199401-199508
TAUPE,TRIM9#
64707CKNOB, JACK COVER
main64982-13010-B0i199605
SHADOW GRAY,TRIM1#
main64982-13010-E0i199508
OAK,TRIM4#
main64982-13010-J0i199206-199509
DARK BLUE,TRIM8#
main64982-13010-K0i199206-199508
TAUPE,TRIM9#
64707GSTOPPER, JACK COVER
main64981-13010i199206
64716DCOVER, DECK TRIM, REAR
main64716-13060-K0i199206-199308
TAUPE,TRIM9#
main64716-13060-P0i199206-199308
SHADOW GRAY,TRIM1#
main64716-13060-W3i199206-199308
DARK BLUE,TRIM8#
main64716-13061-E0i199508
OAK,TRIM4#
main64716-13061-K0i199308-199508
TAUPE,TRIM9#
main64716-13061-P0i199605
SHADOW GRAY,TRIM1#
main64716-13061-W3i199605
DARK BLUE,TRIM8#
main64716-13090-B0i199206-199308
SHADOW GRAY,TRIM1#
main64716-13090-J0i199206-199308
DARK BLUE,TRIM8#
main64716-13090-K0i199206-199308
TAUPE,TRIM9#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-13050-E0i199508
OAK,TRIM4#
main64730-13050-K0i199206-199508
TAUPE,TRIM9#
main64730-13050-P0i199605
SHADOW GRAY,TRIM1#
main64730-13050-W3i199206-199509
DARK BLUE,TRIM8#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main90467-07041-P0×6i199210-199704
SHADOW GRAY,TRIM1#
main90467-07076-03×6i199206-199210
SHADOW GRAY,TRIM1#
sub90467-A0016
main90467-07076-E3×6i199508-199704
OAK,TRIM4#
sub90467-A0016
main90467-07076-K0×6i199206-199508
TAUPE,TRIM9#
sub90467-A0016
main90467-07076-W3×6i199206-199704
DARK BLUE,TRIM8#
sub90467-A0016
64740BBOARD, DECK TRIM SIDE, LH
main64740-13050-E0i199508
OAK,TRIM4#
main64740-13050-K0i199206-199508
TAUPE,TRIM9#
main64740-13050-P0i199605
SHADOW GRAY,TRIM1#
main64740-13050-W3i199605
DARK BLUE,TRIM8#
64757ABRACKET, SPEAKER SET, NO.3
main64757-13010i199206
64758BRACKET, SPEAKER SET, NO.4
main64758-13010i199206
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
main64901-13020-E0i199508
OAK,TRIM4#
main64901-13020-K0i199206-199508
TAUPE,TRIM9#
main64901-13020-P0i199206-199601
SHADOW GRAY,TRIM1#
main64901-13020-W3i199605
DARK BLUE,TRIM8#
64929COVER, TONNEAU COVER HOLDER, RH
main64929-13020-E0i199508
OAK,TRIM4#
main64929-13020-K0i199206-199508
TAUPE,TRIM9#
main64929-13020-P0i199206
SHADOW GRAY,TRIM1#
main64929-13020-W3i199206
DARK BLUE,TRIM8#
64931BHANGER, TONNEAU COVER, RH
main64931-13020-E0i199508
OAK,TRIM4#
main64931-13020-K0i199206-199508
TAUPE,TRIM9#
main64931-13020-P0i199206-199601
SHADOW GRAY,TRIM1#
main64931-13020-W3i199605
DARK BLUE,TRIM8#
64932BHANGER, TONNEAU COVER, LH
main64932-13020-E0i199508
OAK,TRIM4#
main64932-13020-K0i199206-199508
TAUPE,TRIM9#
main64932-13020-P0i199206-199601
SHADOW GRAY,TRIM1#
main64932-13020-W3i199206-199601
DARK BLUE,TRIM8#
64935HOLDER, TONNEAU COVER, RH
main64935-13030i199206
W(SPEAKER)
main64935-13040i199206
W(TONNEAU COVER)
64936HOLDER, TONNEAU COVER, LH
main64935-13030i199206
W(SPEAKER)
main64936-13010i199206
W(TONNEAU COVER)
64939COVER, TONNEAU COVER HOLDER, LH
main64939-13010-E0i199508
OAK,TRIM4#
main64939-13010-K0i199206-199508
TAUPE,TRIM9#
main64939-13010-P0i199206
SHADOW GRAY,TRIM1#
main64939-13010-W3i199206
DARK BLUE,TRIM8#
67921CRETAINER, DECK TRIM SIDE BOARD
main67921-13010×4i199206
7102
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-13020
6777213010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-13010
9016460006
main90164-60006
9018906097
main90189-06097
9046710012
main90467-10012
9046804155
main90468-04155
9046805119
main90468-05119
9095901457
main90959-01457
9161160614
main91611-60614
9165140616
main91651-40616
9326955012
main93269-55012
9354015014
main93540-15014
9356614512
main93566-14512

41 parts on this diagram · 1 diagram in section
