FLOOR INSULATOR

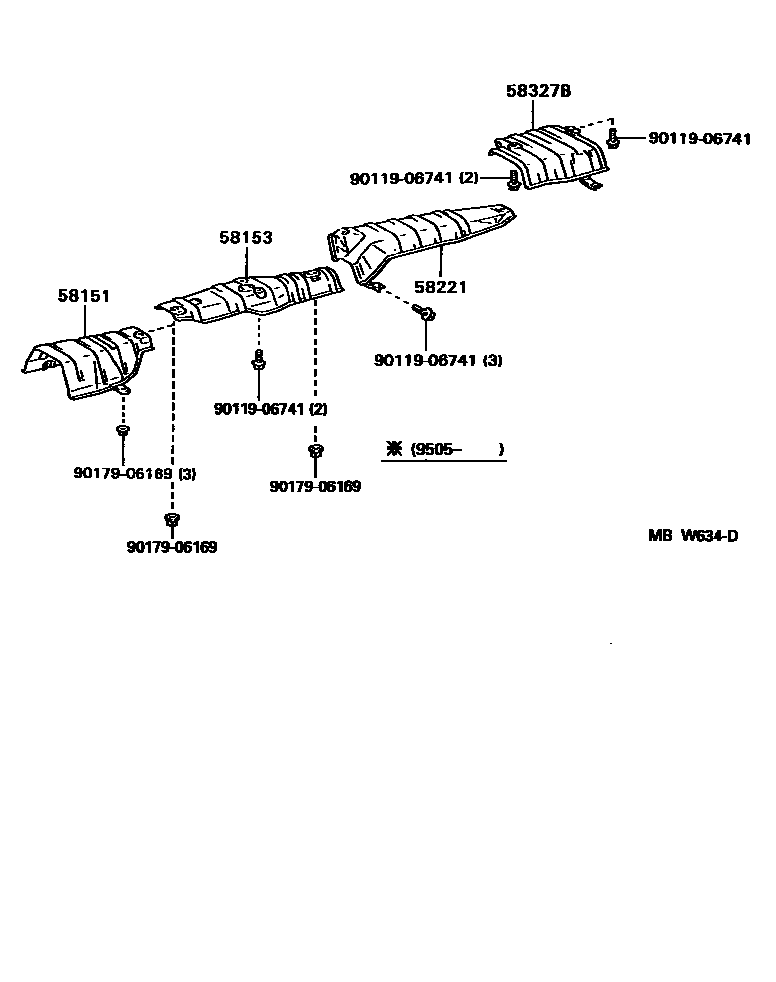

Parts diagram
58151INSULATOR, FRONT FLOOR HEAT, NO.1
main58041-12140i199206-199211
sub58041-12150
main58041-12150i199211-199505
sub58151-12200
main58151-12200i199505
58153INSULATOR, FRONT FLOOR HEAT, NO.2
main58153-12110i199206-199211
sub58153-12120
main58153-12120i199211-199611
sub58153-12140
main58153-12140i199611
58221INSULATOR, CENTER FLOOR HEAT, NO.1
main58044-12010i199206-199211
sub58044-12040
main58044-12040i199211
58327BINSULATOR, MAIN MUFFLER HEAT
main58031-12070i199206-199211
sub58031-12090
main58031-12090i199211
9011906741
main90119-06741
9017906169
main90179-06169

6 parts on this diagram · 1 diagram in section
