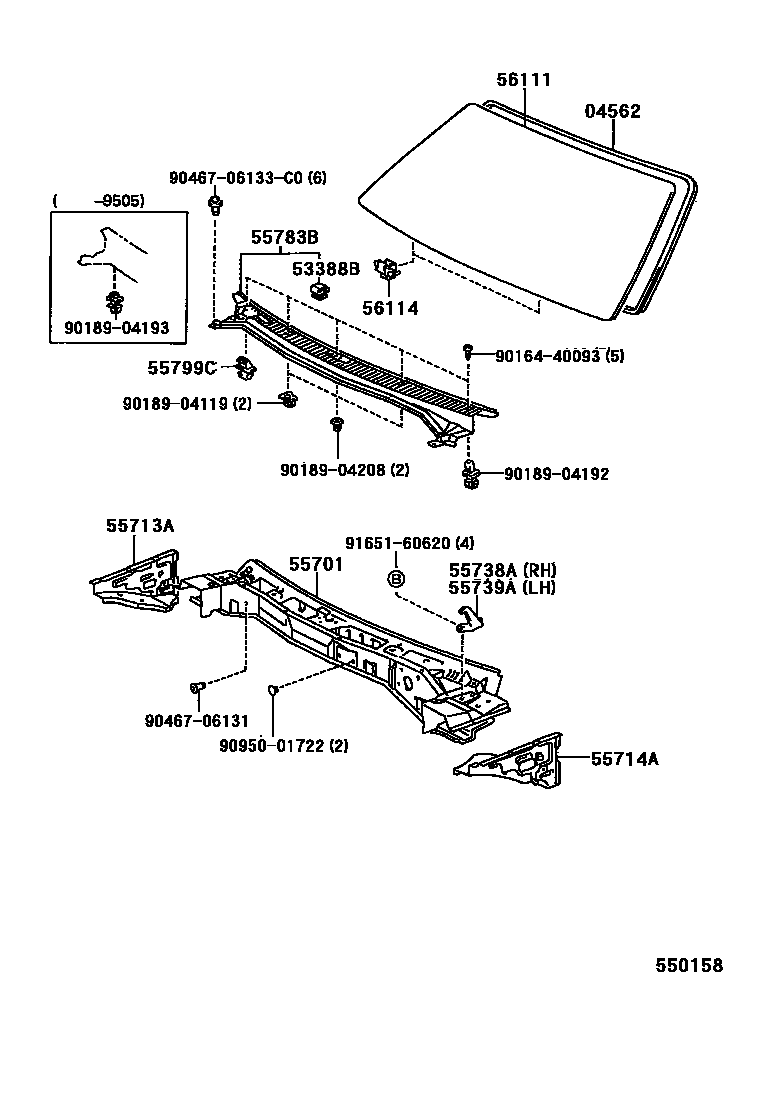

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE10#..JPP199206

53388BCUSHION, HOOD, REAR

main53388-12040iAE10#..JPP199206

55701PANEL SUB-ASSY, COWL

main55700-12890iAE102..JPP..SED..CND199401-199509

BRAZIL SPEC

sub55700-1A160

main55700-1A010iAE10#..JPP199206-199608

main55700-1A160iAE10#..JPP..CND199509-199608

BRAZIL SPEC

main55700-1A160iAE10#..JPP199608

55713APANEL, COWL TOP SIDE, RH

main55713-12080iAE10#..JPP199206-199508

sub55713-12081

sub90467-07166

main55713-12081iAE10#..JPP..CND199505-199508

BRAZIL SPEC

main55713-12081iAE10#..JPP199508

55714APANEL, COWL TOP SIDE, LH

main55714-12080iAE10#..JPP199206-199508

sub55714-12081

sub90467-07166

main55714-12081iAE10#..JPP..CND199505-199508

BRAZIL SPEC

main55714-12081iAE10#..JPP199508

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#..JPP199206

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#..JPP199206

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12130iAE10#..JPP..USA199206-199608

sub55708-12140

main55708-12140iAE10#..JPP..CND199206

main55708-12140iAE10#..JPP..USA199508-199608

COLD AREA SPEC(USA)

main55708-12140iAE10#..JPP..USA199206-199508

COLD AREA SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE10#..JPP199505

56111GLASS, WINDSHIELD

main56111-02040iAE10#..JPP199206-199608

*TL,T=4.7,(L)

main56111-1A460iAE102..JPP..SED..CND199401-199608

*TL,T=4.7,BRAZIL SPEC

sub56111-1A470

main56111-1A460iAE10#..JPP199608

*TL,T=4.7

sub56111-1A470

main56111-1A500iAE10#..JPP199206-199608

*TL,T=4.7,(J)

56114RETAINER, WINDSHIELD GLASS

main56110-12010iAE10#..JPP199206

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131

main90467-06131

9046706133C0

main90467-06133C0

9095001722

main90950-01722

9165160620

main91651-60620

20 parts on this diagram · 1 diagram in section
