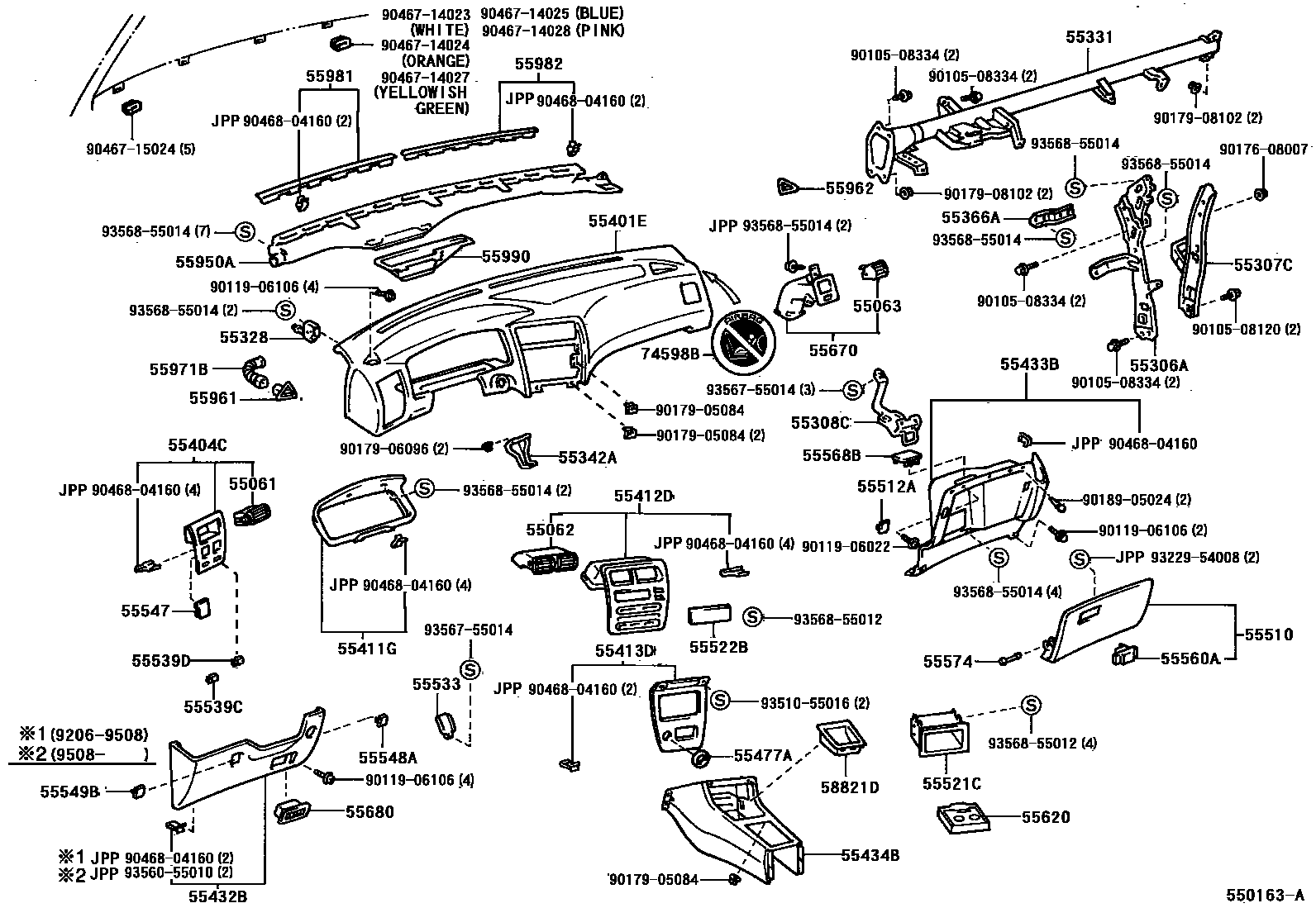

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12170iAE10#..JPP199206

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12080×2iAE10#..JPP199206-199704

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55061-12180-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55061-12180-E0iAE10#..JPP199508-199605

OAK,TRIM4#

main55061-12180-J0iAE10#..JPP..(D,N)199408-199704

DARK BLUE,TRIM8#

main55061-12180-K0iAE102..JPP;AE101..JPP..USA199308-199508

TAUPE,TRIM86,9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12170iAE10#..JPP199206-199305

sub85999-12330

main55306-12210iAE10#..JPP199305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12220iAE10#..JPP199206

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12200iAE10#..JPP199206-199308

main55308-12240iAE10#..JPP..USA199308-199608

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060×2iAE10#..JPP199206

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12270iAE10#..JPP199206-199308

main55330-12271iAE10#..JPP..CND199505

main55330-12290iAE10#..JPP..USA199308-199505

W(*80(DRIVER SIDE & PASSENGER SIDE))

main55330-12291iAE10#..JPP..CND199505

W(*80(DRIVER SIDE & PASSENGER SIDE))

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-12040iAE10#..JPP199206

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12050iAE10#..JPP199206

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12340-B0iAE10#..JPP199206-199308

SHADOW GRAY,TRIM1#

sub55404-12640

main55401-12340-J0iAE10#..JPP..CND199308-199311

DARK BLUE,TRIM8#

sub55404-12640

main55401-12340-K0iAE10#..JPP..CND199308-199311

TAUPE,TRIM9#

sub55404-12640

main55401-12360-B0iAE10#..JPP..USA199308-199311

W(*80(DRIVER SIDE & PASSENGER SIDE)),SHADOW GRAY,TRIM1#

main55401-12360-J0iAE10#..JPP..USA199308-199311

W(*80(DRIVER SIDE & PASSENGER SIDE)),DARK BLUE,TRIM8#

main55401-12360-K0iAE10#..JPP..USA199308-199311

W(*80(DRIVER SIDE & PASSENGER SIDE)),TAUPE,TRIM9#

main55401-12400-B0iAE10#..JPP..CND199311-199503

SHADOW GRAY,TRIM1#

main55401-12400-J0iAE10#..JPP..CND199311-199503

DARK BLUE,TRIM8#

main55401-12400-K0iAE10#..JPP..CND199311-199503

TAUPE,TRIM9#

main55401-12410-B0iAE10#..JPP..CND199311-199704

W(*80(DRIVER SIDE & PASSENGER SIDE)),SHADOW GRAY,TRIM1#

main55401-12410-E0iAE10#..JPP..USA199508-199608

OAK,TRIM4#

main55401-12410-J0iAE10#..JPP..USA199311-199608

DARK BLUE,TRIM8#

main55401-12410-K0iAE10#..JPP..USA199311-199508

W(*80(DRIVER SIDE & PASSENGER SIDE)),TAUPE,TRIM9#

main55401-12450-B0iAE10#..JPP..CND199503-199704

SHADOW GRAY,TRIM1#

main55401-12450-E0iAE10#..JPP..CND199508-199704

OAK,TRIM4#

main55401-12450-J0iAE10#..JPP..CND199503-199704

DARK BLUE,TRIM8#

main55401-12450-K0iAE10#..JPP..CND199503-199505

TAUPE,TRIM9#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12590iAE10#..JPP199206-199311

main55404-12630iAE10#..JPP199311

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12890iAE10#..JPP199206

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12580iAE102..JPP;AE101..JPP..CND199206-199605

W(REAR WINDOW DEFOGGER)

sub55405-12690

main55405-12600iAE101..JPP..3FC..USA199206-199605

W(REAR WINDOW DEFOGGER/WITH TIMER)

main55405-12610iAE101..JPP..USA199206-199605

main55405-12850iAE101..JPP..USA199605-199608

W(REAR WINDOW DEFOGGER)

sub55405-12860

main55405-12870iAE101..JPP..3FC..USA199605-199608

W(REAR WINDOW DEFOGGER/WITH TIMER)

main55405-12880iAE101..JPP..USA199605-199608

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12430iAE10#..JPP199206

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55045-12180-B0iAE10#..JPP199206-199508

SHADOW GRAY,TRIM1#

main55045-12180-J0iAE10#..JPP199206-199508

DARK BLUE,TRIM8#

main55045-12180-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

main55045-12230-B0iAE10#..JPP199508-199704

SHADOW GRAY,TRIM1#

main55045-12230-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55045-12230-J0iAE10#..JPP199508-199704

DARK BLUE,TRIM8#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12130-B0iAE10#..JPP199206-199212

SHADOW GRAY,TRIM1#

main55433-12130-J0iAE10#..JPP199206-199212

DARK BLUE,TRIM8#

main55433-12130-K0iAE10#..JPP199206-199212

TAUPE,TRIM9#

main55433-12140-B0iAE10#..JPP199212-199704

SHADOW GRAY,TRIM1#

main55433-12140-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55433-12140-J0iAE10#..JPP199212-199704

DARK BLUE,TRIM8#

main55433-12140-K0iAE10#..JPP199212-199508

TAUPE,TRIM9#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12120-B0iAE10#..JPP199206-199401

SHADOW GRAY,TRIM1#

main55434-12120-J0iAE10#..JPP199206-199401

DARK BLUE,TRIM8#

main55434-12120-K0iAE10#..JPP199206-199401

TAUPE,TRIM9#

main55434-12121-B0iAE10#..JPP199401-199704

SHADOW GRAY,TRIM1#

main55434-12121-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55434-12121-J0iAE10#..JPP199401-199704

DARK BLUE,TRIM8#

main55434-12121-K0iAE10#..JPP199401-199508

TAUPE,TRIM9#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100iAE10#..JPP199206

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12350-B0iAE10#..JPP199206-199308

SHADOW GRAY,TRIM1#

main55550-12350-B1iAE10#..JPP199308-199704

SHADOW GRAY,TRIM1#

main55550-12350-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55550-12350-J0iAE10#..JPP199206-199308

DARK BLUE,TRIM8#

main55550-12350-J1iAE10#..JPP199308-199704

DARK BLUE,TRIM8#

main55550-12350-K0iAE10#..JPP199206-199308

TAUPE,TRIM9#

main55550-12350-K1iAE10#..JPP199308-199508

TAUPE,TRIM9#

55512APLATE, GLOVE COMPARTMENT

main55512-12120-B0×2iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55512-12120-E0×2iAE10#..JPP199508-199704

OAK,TRIM4#

main55512-12120-J0×2iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55512-12120-K0×2iAE10#..JPP199206-199508

TAUPE,TRIM9#

55521CCOVER, STEREO OPENING

main55521-16040iAE10#..JPP199206-199704

2 DIN BOX

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-32010iAE10#..JPP199206-199605

sub55522-20070

55533COVER, AUTO CLOCK HOLE

main55533-12130iAE101..JPP..USA199206-199308

55539CCOVER, SPARE SWITCH HOLE

main55539-12110iAE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND199206-199401

55539DCOVER, SPARE SWITCH HOLE

main55539-12110iAE10#..JPP199206

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-12020iAE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA199206-199508

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-12060-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55548-12060-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55548-12060-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55548-12060-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-12010-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55549-12010-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55549-12010-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55549-12010-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12090-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55560-12090-E1iAE10#..JPP199508-199704

OAK,TRIM4#

main55560-12090-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55560-12090-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-12010iAE10#..JPP199308

main55568-24020iAE10#..JPP199212-199308

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAE10#..JPP199206

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-02010iAE10#..JPP199308-199405

(L)

main55620-02020iAE10#..JPP199405

(L)

main55620-12040iAE10#..JPP199206-199408

(J)

main55620-12060iAE10#..JPP199408

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12200-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55670-12200-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55670-12200-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55670-12200-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-12050iAE10#..JPP199302-199308

main55680-12050-K0iAE10#..JPP199206-199302

TAUPE,TRIM9#

main55680-12050-P0iAE10#..JPP199206-199302

SHADOW GRAY,TRIM1#

main55680-12050-W3iAE10#..JPP199206-199302

DARK BLUE,TRIM8#

55950ANOZZLE ASSY, DEFROSTER

main55950-12160iAE10#..JPP199206-199208

main55950-12180iAE10#..JPP199208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12200-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55961-12200-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55961-12200-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55961-12200-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12180-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main55962-12180-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main55962-12180-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main55962-12180-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110iAE10#..JPP199206

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12070iAE10#..JPP199206

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12070iAE10#..JPP199206

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12020iAE10#..JPP199206

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12070-B0iAE10#..JPP199206-199704

SHADOW GRAY,TRIM1#

main58821-12070-E0iAE10#..JPP199508-199704

OAK,TRIM4#

main58821-12070-J0iAE10#..JPP199206-199704

DARK BLUE,TRIM8#

main58821-12070-K0iAE10#..JPP199206-199508

TAUPE,TRIM9#

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iAE10#..JPP199508

9010508120

main90105-08120

9010508334

main90105-08334

9011906022

main90119-06022

9011906106

main90119-06106

9017608007

main90176-08007

9017905084

main90179-05084

9017906096

main90179-06096

9017908102

main90179-08102

9018905024

main90189-05024

9046714023

main90467-14023

9046714024

main90467-14024

9046714025

main90467-14025

9046714027

main90467-14027

9046714028

main90467-14028

9046715024

main90467-15024

9046804160

main90468-04160

9322954008

main93229-54008

9351055016

main93510-55016

9356055010

main93560-55010

9356755014

main93567-55014

9356855012

main93568-55012

9356855014

main93568-55014

66 parts on this diagram · 2 diagrams in section
