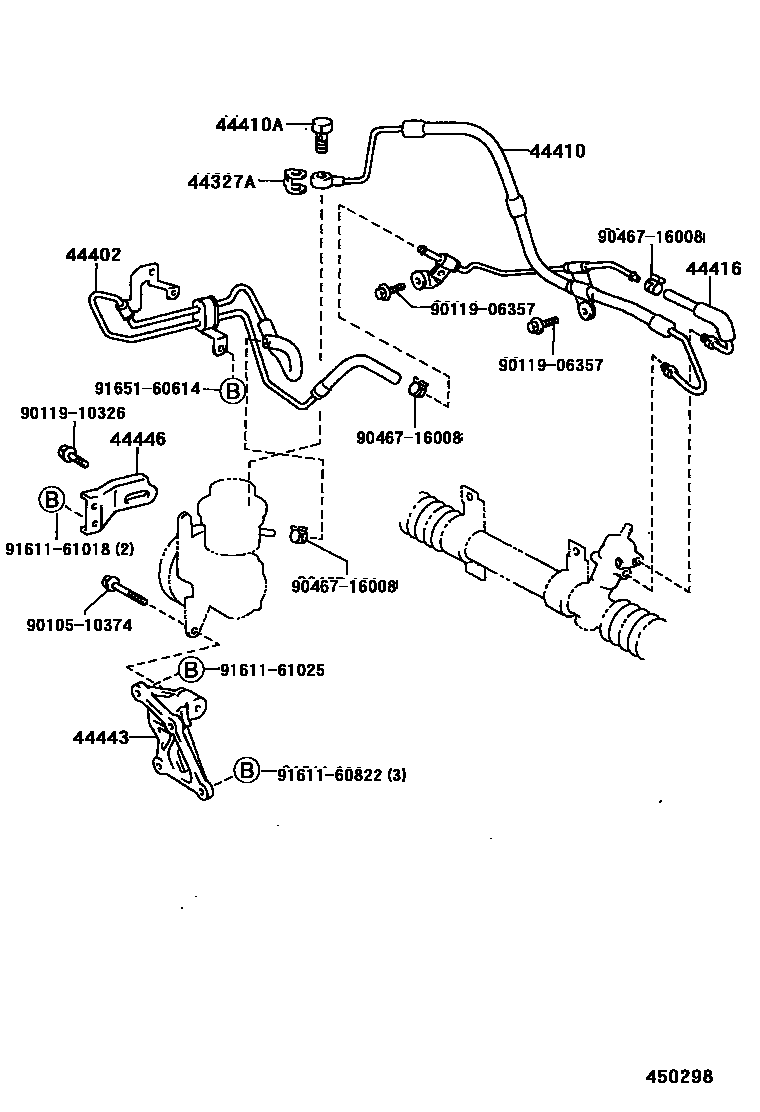

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE10#..JPP199206

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12140iAE10#..JPP199206

44410TUBE ASSY, PRESSURE FEED

main44410-12492iAE10#..JPP199206

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE10#..JPP199206

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12160iAE10#..JPP199206

44443BRACKET, PUMP

main44443-12100iAE10#..JPP199206

44446STRUT, ADJUSTING

main44446-12060iAE101..JPP199206

main44446-12090iAE102..JPP199206

9010510374

main90105-10374

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160614

main91651-60614

15 parts on this diagram · 1 diagram in section
