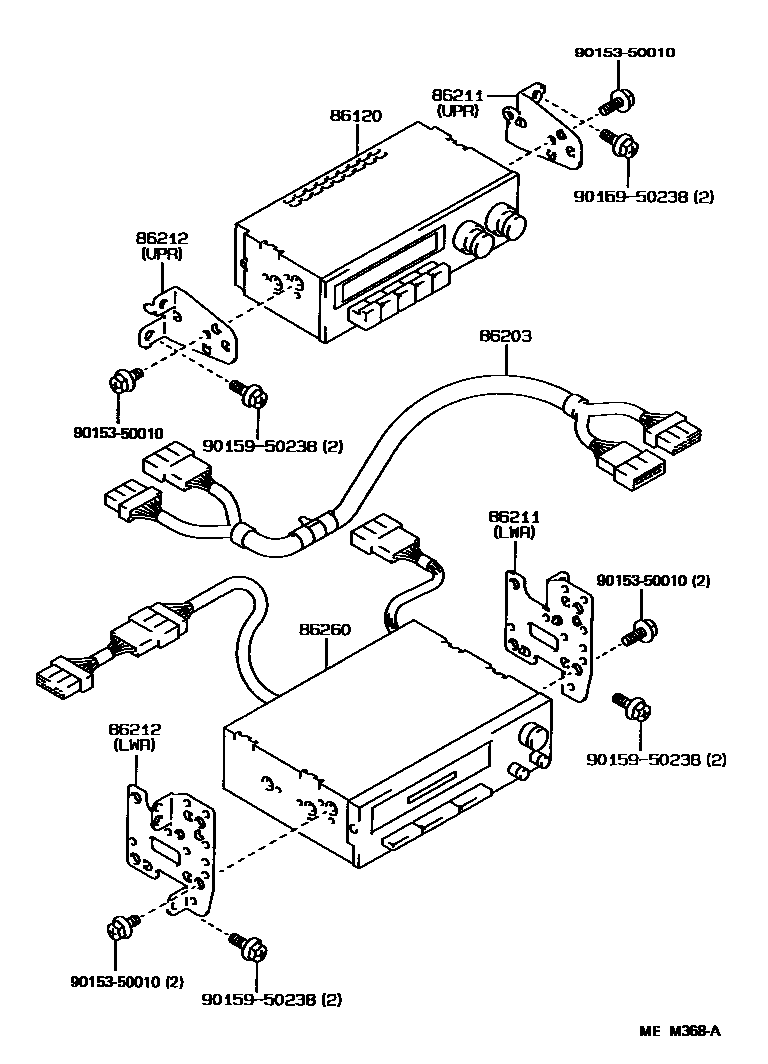

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-12430iAE95;AE92..DX..USA;AE92..SED..DX..CND198708-198808

AM/FM MPX ETR 2 SPEAKER

main86120-12430iAE92..WG..CND198710-198808

main86120-12480iAE92..WG198808-198908

AM/FM MPX ETR CASSETTE 2 SPEAKER

main86120-12481iAE92..WG..USA198908-199008

AM/FM MPX ETR CASSETTE 2 SPEAKER

sub86120-12482

main86120-12481iAE92..WG..USA198908-199008

AM/FM MPX ETR CASETTE 2 SPEAKER

sub86120-12482

main86120-12482iAE92..WG..CND199008-199108

AM/FM MPX ETR CASETTE 2 SPEAKER

main86120-12482iAE92..WG..CND199008-199108

AM/FM MPX ETR CASSETTE 2 SPEAKER

main86120-12730iAE95..USA;AE92..SED..USA199008-199108

AM/FM MPX ETR 4 SPEAKER(AM=9KHZ,FM=100KHZ)

main86120-12830iAE92..WG..USA199108-199206

AM/FM MPX ETR CASETTE 2 SPEAKER

main86120-12830iAE92..WG..CND199108-199206

AM/FM MPX ETR CASSETTE 2 SPEAKER

main86120-12840iAE92..SED..(DX,STD)199108-199203

FUJITSU TEN,AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ)

main86120-12850iAE92..SED199108-199203

FUJITSU TEN,AM/FM MPX ETR CASSETTE 4 SPEAKER

main86120-12860iAE92..STD199108-199206

MATSUSHITA,AM/FM MPX ETR 2 SPEAKER

main86120-16371iAE95..SR5;AE92..LE..CND198708-198808

AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ)

main86120-16371iAE95..DX;AE92..SED..USA;AE92..SED..DX..CND198708-198808

*AMF/4-AMP(AM=10KHZ,FM=200KHZ)

main86120-16430iAE92..WG..USA198710-199206

FUJITSU TEN,AM/FM MPX 5 BUTTON

main86120-16560iAE95;AE92..SED198808-198908

AM/FM MPX ETR CASSETTE 4 SPEAKER

sub86120-16570

main86120-16561iAE95;AE92..SED198908-199008

AM/FM MPX ETR CASSETTE 4 SPEAKER

sub86120-16571

main86120-16571iAE95;AE92..SED199008-199108

AM/FM MPX ETR CASSETTE 4 SPEAKER

main86120-20680iAE95..USA;AE92..SED..USA198708-198808

AM/FM MPX ETR 4 SPEAKER(AM=9KHZ,FM=100KHZ)

main86120-28040iAE95..DX;AE92..SED..DX..CND;AE92..SED..USA..CBR;AE92..SED..(DX,STD)..USA..EFI198808-199008

AM/FM MPX ETR/4-AMP(AM=10KHZ,FM=200KHZ)

main86120-28040iAE95..DX;AE92..SED..DX..CND;AE92..SED..USA..CBR;AE92..SED..(DX,STD)..USA..EFI198808-199008

AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ)

main86120-28041iAE95..DX;AE92..SED..(DX,STD)199008-199108

AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ)

main86120-2B400iAE92..SED..USA199108-199206

FUJITSU TEN,AM/FM MPX ETR 4 SPEAKER(AM=9KHZ,FM=100KHZ)

main86120-32330iAE92..STD198808-199008

MATSUSHITA,AM/FM MPX ETR 2 SPEAKER

sub86120-32331

main86120-32331iAE92..STD199008-199108

AM/FM MPX ETR 2 SPEAKER

main86120-32390iAE95..USA198908-199105

FUJITSU TEN

main86120-32390iAE95..USA;AE92..SED..USA198905-199008

FUJITSU TEN,AM/FM MPX ETR 4 SPEAKER(AM=9KHZ,FM=100KHZ)

main86120-33070iAE92..SED..(DX,STD)199203-199206

PANASONIC,AM/FM MPX ETR 4SPEAKER(AM=10KHZ,FM=200KHZ)

main86120-33070iAE92..LE199203-199206

PANASONIC

main86120-33080iAE92..SED199203-199206

MATSUSHITA,AM/FM MPX ETR CASSETTE 4 SPEAKER

86203WIRE, RADIO

main86203-12200iAE92..WG..USA198710-199206

10P,10P-10P,10P

main86203-12210iAE95..DX..USA198708-199206

13P-13P

main86203-12220iAE95..DX..USA;AE92..SED..USA198802-198808

8P-8P

86211BRACKET, RADIO, NO.1

main86211-12210iAE9#198708-199206

UPR

main86211-12220iAE9#198708-199206

LWR

86212BRACKET, RADIO, NO.2

main86212-12190iAE9#198708-199206

UPR

main86212-12200iAE9#198708-199206

LWR

86260TAPE PLAYER ASSY

main86260-12180iAE92..CND;AE92..SED..(DX,STD)..USA198808-199206

W(DOLBY)

main86260-16140iAE92..WG..USA199009-199206

main86260-16140iAE92..WG..USA198710-199009

W(AM/FM MPX ETR 4-SPEAKERS & TAPE PLAYER)

main86260-20170iAE95..DX..USA;AE92..SED..3FC..USA198708-198808

W(DOLBY)

main86260-30250iAE95..USA;AE92..SED..DX..USA198710-198808

sub86260-30310

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 1 diagram in section
