REAR SEAT & SEAT TRACK

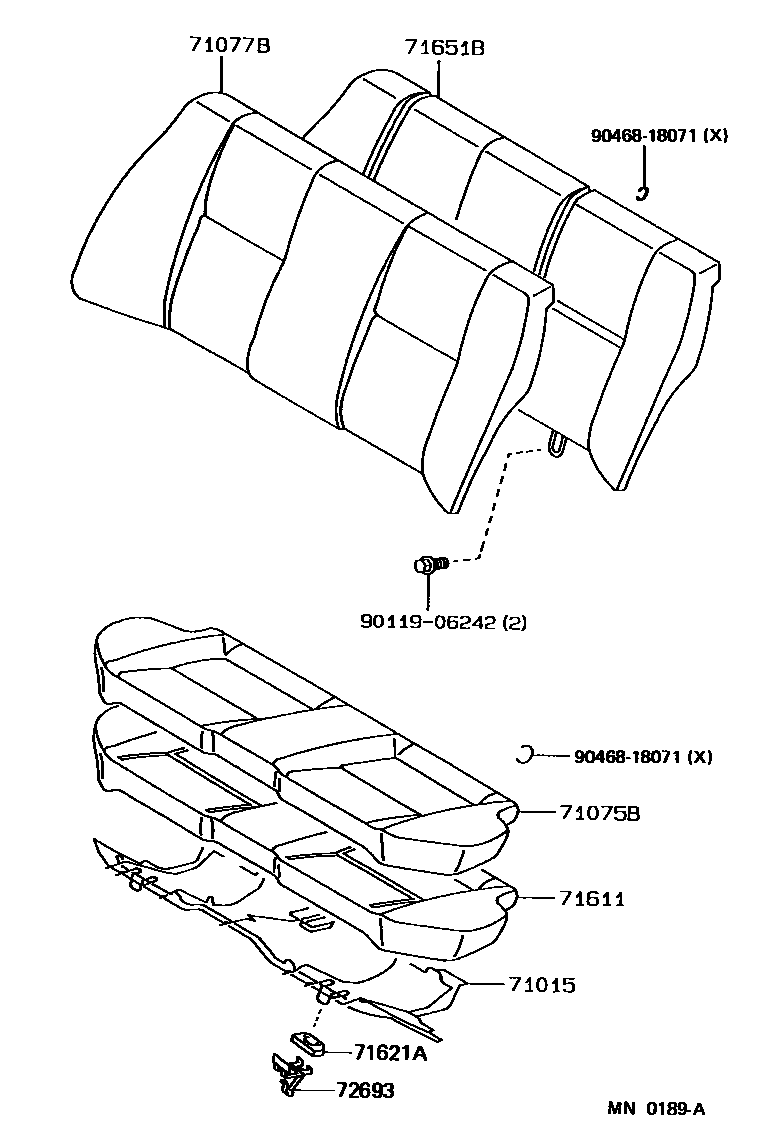

Parts diagram
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71015-12260i198708-199206
main71015-12270i198710-199206
main71015-12290i198802-199009
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-13360-03i198710-198808
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-13360-04i198710-198808
DARK BLUE,TRIM8#
main71075-13360-05i198710-198808
DARK BEIGE,TRIM4#
main71075-13361-03i198808-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-13361-04i198808-198908
DARK BLUE,TRIM8#
main71075-13361-05i198808-198908
DARK BEIGE,TRIM4#
main71075-13362-03i198908-199008
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-13362-04i198908-199008
DARK BLUE,TRIM8#
main71075-13362-06i198908-199008
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-13363-03i199008-199206
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-13363-04i199008-199206
DARK BLUE,TRIM8#
main71075-13363-06i199008-199206
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-13370-03i198710-198908
SHADOW GRAY,TRIM1#
main71075-13370-04i198710-198908
DARK BLUE,TRIM8#
main71075-13370-05i198710-198908
DARK BEIGE,TRIM4#
main71075-13371-03i199008-199206
SHADOW GRAY,TRIM1#
main71075-13371-04i198908-199206
DARK BLUE,TRIM8#
main71075-13371-06i198908-199206
BROWN,TRIM4#
main71075-1E020-02i198708-198908
MAROON,TRIM3#
main71075-1E020-03i198708-198908
SHADOW GRAY,TRIM1#
main71075-1E020-04i198708-198908
BLUE,TRIM8#
main71075-1E020-05i198708-198908
DARK BEIGE,TRIM4#
main71075-1E021-02i198908-199206
MAROON,TRIM3#
main71075-1E021-03i198908-199206
SHADOW GRAY,TRIM1#
main71075-1E021-04i198908-199206
DARK BLUE,TRIM8#
main71075-1E021-06i198908-199206
BROWN,TRIM4#
main71075-1E070-03i198708-198908
SHADOW GRAY,TRIM1#
main71075-1E070-04i198708-198908
DARK BLUE,TRIM8#
main71075-1E070-05i198708-198908
DARK BEIGE,TRIM4#
main71075-1E180-02i198708-198808
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71075-1E180-03i198708-198808
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E180-04i198708-198808
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71075-1E180-05i198708-198808
DARK BEIGE,TRIM4#
main71075-1E210-02i198808-199008
MAROON,TRIM3#
main71075-1E210-03i198808-199008
SHADOW GRAY,TRIM1#
main71075-1E210-04i198808-199008
DARK BLUE,TRIM8#
main71075-1E210-05i198808-198908
DARK BEIGE,TRIM4#
main71075-1E210-06i198908-199008
BROWN,TRIM4#
main71075-1E400-03i198802-198908
SHADOW GRAY,TRIM1#
main71075-1E400-04i198802-198908
DARK BLUE,TRIM8#
main71075-1E400-05i198802-198908
DARK BEIGE,TRIM4#
main71075-1E401-03i198908-199009
SHADOW GRAY,TRIM1#
main71075-1E401-04i198908-199009
DARK BLUE,TRIM8#
main71075-1E401-06i198908-199009
BROWN,TRIM4#
main71075-1E470-03i198802-198908
SHADOW GRAY,TRIM1#
main71075-1E470-04i198908-199009
DARK BLUE,TRIM8#
main71075-1E470-05i198802-198908
DARK BEIGE,TRIM4#
main71075-1E470-06i198908-199009
BROWN,TRIM4#
main71075-1E510-03i198802-198808
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E510-04i198802-198808
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71075-1E510-05i198802-198808
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71075-1E511-02i198808-198908
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71075-1E511-03i198808-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E511-04i198908-199008
DARK BLUE,TRIM8#
main71075-1E511-05i198808-198908
DARK BEIGE,TRIM4#
main71075-1E511-06i198908-199008
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-1E512-03i199008-199009
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71075-1E512-04i199008-199009
DARK BLUE,TRIM8#
main71075-1E512-06i199008-199009
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71075-1E760-02i199008-199206
MAROON,TRIM3#
main71075-1E760-03i199202-199206
DX PACAGE,SHADOW GRAY,TRIM1#
main71075-1E760-04i199008-199206
DARK BLUE,TRIM8#
main71075-1E760-06i199008-199206
BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-1H690-02i198708-198808
MAROON,TRIM3#
main71077-1H690-03i198708-198808
SHADOW GRAY,TRIM1#
main71077-1H690-04i198708-198808
BLUE,TRIM8#
main71077-1H690-05i198708-198808
DARK BEIGE,TRIM4#
main71077-1H770-02i198903-198908
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71077-1H770-03i198901-198903
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71077-1H770-04i198903-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71077-1H770-05i198901-198908
DARK BEIGE,TRIM4#
main71077-1H770-06i199008-199206
BROWN,TRIM4#
main71077-1H780-03i198808-198908
SHADOW GRAY,TRIM1#
main71077-1H780-04i198808-198908
DARK BLUE,TRIM8#
main71077-1H780-05i198808-198908
DARK BEIGE,TRIM4#
main71077-1H790-02i198808-198908
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71077-1H790-03i198808-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71077-1H790-04i198808-198908
DARK BLUE,TRIM8#
main71077-1H790-05i198808-198908
DARK BEIGE,TRIM4#
main71077-1H790-06i198908-199008
BROWN,TRIM4#
main71077-1K540-02i199008-199206
MAROON,TRIM3#
main71077-1K540-03i199008-199206
SHADOW GRAY,TRIM1#
main71077-1K540-04i199008-199206
DARK BLUE,TRIM8#
main71077-1K540-06i199008-199206
BROWN,TRIM4#
71611PAD, REAR SEAT CUSHION
main71611-12530i198708-199206
main71611-12540i198710-198810
main71611-12550i199202-199206
DX PACAGE
main71611-12620i198802-199009
sub71611-12610
main71611-12630i198810-199206
71621APAD, REAR SEAT CUSHION SILENCER, A
main71621-12270×2i199008-199206
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-12040i199110-199206
main71507-12050i198708-199110
main71507-12070i198908-199008
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12020×2i198708-198812
main72693-12040×2i198802-199009
main72693-12050×2i198812-199206
9011906242
main90119-06242
9046818071
main90468-18071

9 parts on this diagram · 4 diagrams in section
