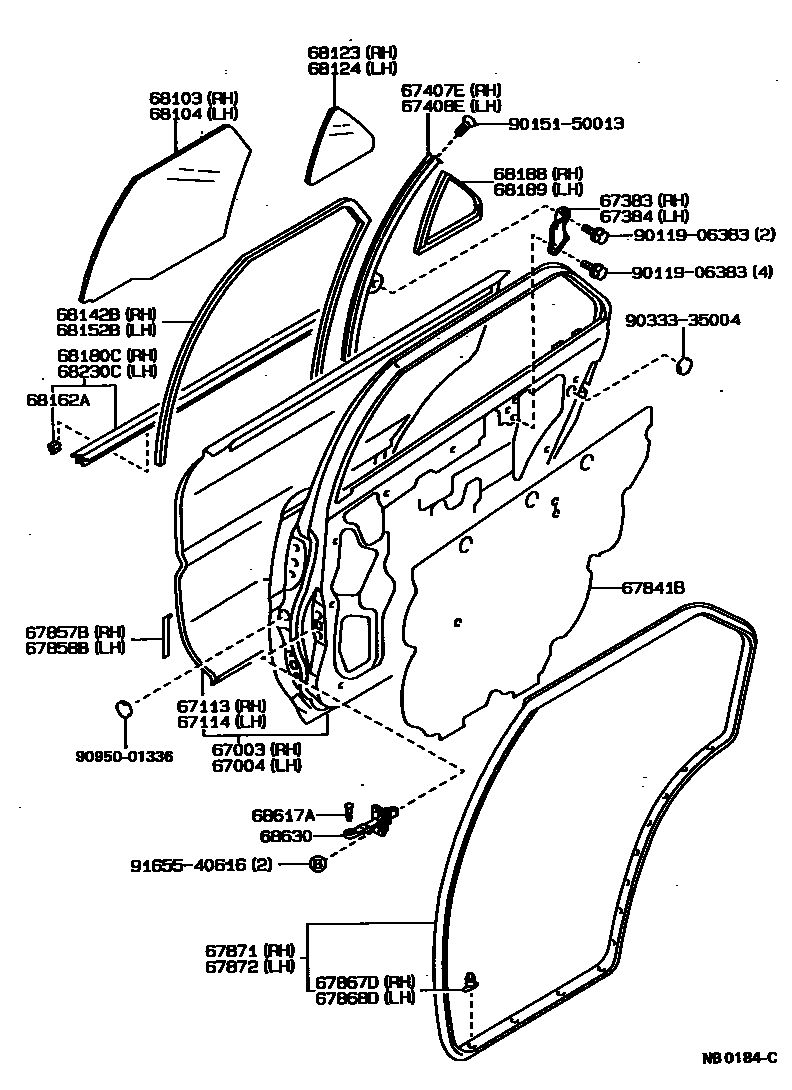

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12510iAE9#..SED198708-199206

main67003-12620iAE95..WG198802-199009

main67003-13220iAE92..WG198710-199206

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12510iAE9#..SED198708-199206

main67004-12620iAE95..WG198802-199009

main67004-13220iAE92..WG198710-199206

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iAE92;AE95..SED198708-199206

main67113-12171iAE95..WG198802-199009

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iAE92;AE95..SED198708-199206

main67114-12171iAE95..WG198802-199009

67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH

main67383-12030iAE9#198708-199206

67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH

main67384-12030iAE9#198708-199206

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12140iAE9#..SED198708-199206

main67407-13020iAE9#..WG198710-199206

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12140iAE9#..SED198708-199206

main67408-13020iAE9#..WG198710-199206

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12210iAE9#198708-199008

main67841-12220iAE9#199008-199206

sub67841-12210

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-12010iAE9#198712-198808

main67857-12020iAE9#198808-199206

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-12010iAE9#198712-198808

main67858-12020iAE9#198808-199206

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iAE92..WG198710-199206

main67868-12050iAE9#..SED198910-199008

ORANGE

main67868-12050iAE95;AE92..SED198708-199206

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12050iAE95;AE92..SED198708-199206

main67868-12050iAE9#..SED198910-199008

ORANGE

main67868-12070iAE92..WG198710-199206

main67868-12080iAE9#..SED198908-198910

sub67868-12050

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12290iAE9#..SED198708-199206

main67871-12330iAE95..WG198802-199009

main67871-13110iAE92..WG198710-198908

sub67871-13112

main67871-13112iAE92..WG198908-199206

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12290iAE9#..SED198708-199206

main67872-12330iAE95..WG198802-199009

main67872-13100iAE92..WG198710-198908

sub67872-13102

main67872-13102iAE92..WG198908-199206

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12190iAE9#..SED198708-199206

*TT,T=3.5

main68113-13100iAE9#..WG198710-199206

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12190iAE9#..SED198708-199206

*TT,T=3.5

main68114-13100iAE9#..WG198710-199206

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12390iAE9#..SED198708-199206

*TT,T=3.5

main68123-12540iAE95..WG198802-199009

*TT,T=3.5,BLUE

main68123-13110iAE92..WG198710-199206

*TT,=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12390iAE9#..SED198708-199206

*TT,T=3.5

main68124-12540iAE95..WG198802-199009

*TT,T=3.5,BLUE

main68124-13100iAE92..WG198710-199206

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-12090iAE9#..SED198708-199206

main68142-13050iAE9#..WG..EFI198710-199206

68152BRUN, REAR DOOR WINDOW, LH

main68152-12010iAE9#..SED198708-199206

main68152-13010iAE92..WG198710-199206

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iAE9#..SED..(DX,STD)198708-199108

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-12080iAE92..STD198708-199108

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12200iAE9#..SED198708-199206

sub68188-12190

main68188-12230iAE95..WG198802-199009

main68188-13050iAE92..WG198710-199206

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12190iAE9#..SED198708-199206

main68189-12240iAE95..WG198802-199009

main68189-13050iAE92..WG198710-199206

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-12050iAE9#..SED..(DX,STD)198708-199108

68617APIN, REAR DOOR CHECK

main68617-12030iAE9#198809-199206

main68617-22020iAE9#198708-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE9#198708-199206

9011906383

main90119-06383

9015150013

main90151-50013

9033335004

main90333-35004

9095001336

main90950-01336

9165540616

main91655-40616

33 parts on this diagram · 2 diagrams in section
