DECK BOARD & DECK TRIM COVER

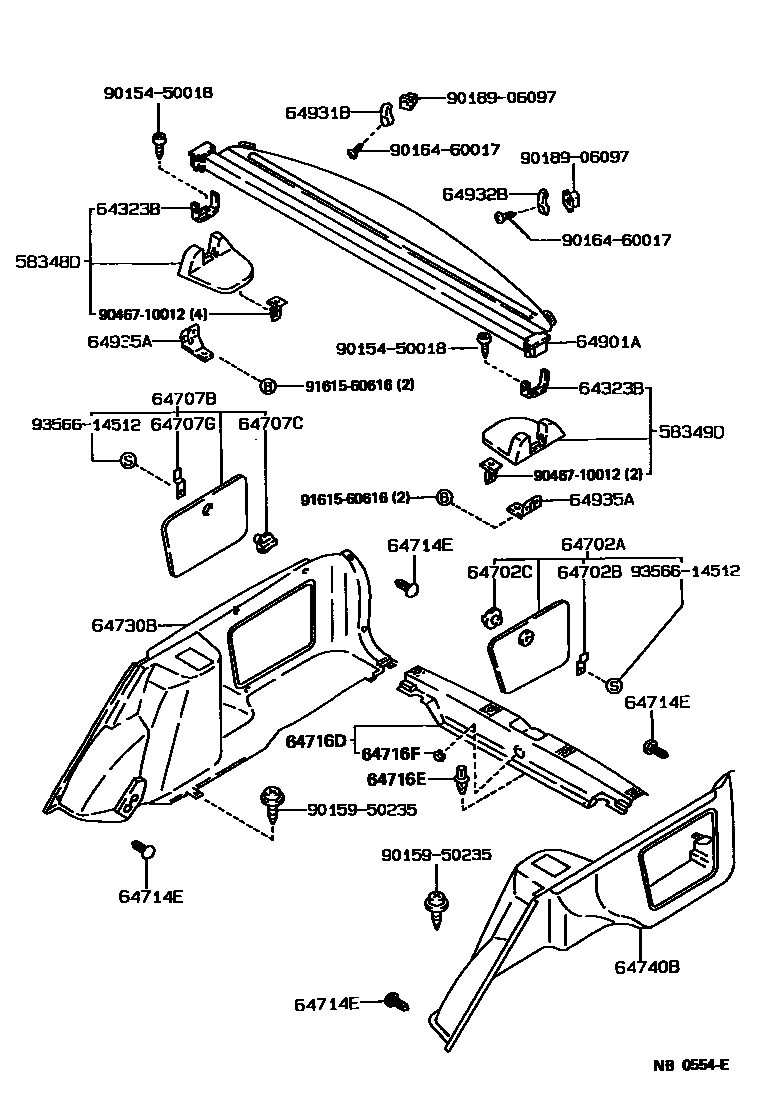

Parts diagram
58348DCOVER, REAR ABSORBER SERVICE HOLE, RH
main58348-13030-03i198710-199206
SHADOW GRAY,TRIM1#
main58348-13030-04i198710-199206
DARK BLUE,TRIM8#
main58348-13030-05i198710-198908
DARK BEIGE,TRIM4#
main58348-13030-06i198908-199206
BROWN,TRIM4#
main58348-13040-03i198710-199008
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main58348-13040-04i198711-199206
W(TONNEAU COVER),DARK BLUE,TRIM8#
main58348-13040-05i198710-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main58348-13040-06i198908-199206
W(TONNEAU COVER),BROWN,TRIM4#
58349DCOVER, REAR ABSORBER SERVICE HOLE, LH
main58349-13040-03i198710-199206
SHADOW GRAY,TRIM1#
main58349-13040-04i198710-199206
DARK BLUE,TRIM8#
main58349-13040-05i198711-198908
DARK BEIGE,TRIM4#
main58349-13040-06i198908-199206
BROWN,TRIM4#
main58349-13050-03i198711-199206
W(TONNEAU COVER),SAHDOW GRAY,TRIM1#
main58349-13050-04i198710-199206
W(TONNEAU COVER),DARK BLUE,TRIM8#
main58349-13050-05i198710-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main58349-13050-06i198908-199206
W(TONNEAU COVER),BROWN,TRIM4#
64323BCLAMP, TONNEAU COVER
main64323-13010-03×2i198908-199206
GRAY,TRIM1#
main64323-13010-04×2i198908-199206
DARK BLUE,TRIM8#
main64323-13010-06×2i198908-199206
BROWN,TRIM4#
main64323-32010-03×2i198710-198812
MEDIUM GRAY,TRIM1#
main64323-32010-04×2i198710-198812
DARK BLUE,TRIM8#
main64323-32010-05×2i198710-198812
DARK BEIGE,TRIM4#
64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
main64702-12030-03i198802-199009
SHADOW GRAY,TRIM1#
main64702-12030-04i198802-199009
DARK BLUE,TRIM8#
main64702-12030-05i198802-198908
DARK BEIGE,TRIM4#
main64702-12030-06i198908-199009
BROWN,TRIM4#
main64702-13020-03i198710-199206
SHADOW GRAY,TRIM1#
main64702-13020-04i198710-199206
DARK BLUE,TRIM8#
main64702-13020-05i198710-198908
DARK BEIGE,TRIM4#
main64702-13020-06i198908-199206
BROWN,TRIM4#
64702BSTOPPER, WASHER TANK COVER
main64981-13010i198710-199206
main64981-16021i198802-199009
64702CKNOB, WASHER TANK COVER
main64982-16020-23i198710-198802
GRAY,TRIM1#
main64982-16020-25i198710-198908
DARK BEIGE,TRIM4#
main64982-16020-30i198802-199206
SHADOW GRAY,TRIM1#
main64982-16020-50i198908-199206
BROWN,TRIM4#
main64982-16020-54i198710-199206
DARK BLUE,TRIM8#
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-12060-03i198802-199009
SHADOW GRAY,TRIM1#
main64707-12060-04i198802-199009
DARK BLUE,TRIM8#
main64707-12060-05i198802-198908
DARK BEIGE,TRIM4#
main64707-12060-06i198908-199009
BROWN,TRIM4#
main64707-13060-03i198710-199206
SHADOW GRAY,TRIM1#
main64707-13060-04i198710-199206
DARK BLUE,TRIM8#
main64707-13060-05i198710-198908
DARK BEIGE,TRIM4#
main64707-13060-06i198908-199206
BROWN,TRIM4#
64707CKNOB, JACK COVER
main64982-16020-23i198710-198802
GRAY,TRIM1#
main64982-16020-25i198710-198908
DARK BEIGE,TRIM4#
main64982-16020-30i198802-199206
SHADOW GRAY,TRIM1#
main64982-16020-50i198908-199206
BROWN,TRIM4#
main64982-16020-54i198710-199206
DARK BLUE,TRIM8#
64707GSTOPPER, JACK COVER
main64981-13010i198710-199206
main64981-16021i198802-199009
64714ECLIP(FOR DECK TRIM SIDE COVER)
main90467-06085-03×12i198710-199206
SHADOW GRAY,TRIM1#
main90467-06085-04×12i198710-199206
DARK BLUE,TRIM8#
main90467-06085-05×12i198710-198908
DARK BEIGE,TRIM4#
main90467-06085-06×12i198908-199206
BROWN,TRIM4#
64716DCOVER, DECK TRIM, REAR
main64716-13010-03i198908-199206
SHADOW GRAY,TRIM1#
main64716-13010-04i198908-199206
DARK BLUE,TRIM8#
main64716-13010-06i198908-199206
BROWN,TRIM4#
main64716-13020-03i198710-199206
SHADOW GRAY,TRIM1#
main64716-13020-04i198710-199206
DARK BLUE,TRIM8#
main64716-13020-05i198710-198908
DARK BEIGE,TRIM4#
main64716-13020-06i198908-199206
BROWN,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-06085-03×4i198710-199206
SHADOW GRAY,TRIM1#
main90467-06085-04×4i198710-199206
DARK BLUE,TRIM8#
main90467-06085-05×4i198710-198908
DARK BEIGE,TRIM4#
main90467-06085-06×4i198908-199206
BROWN,TRIM4#
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
main90950-01436-13i198710-199008
GRAY,TRIM1#
sub64353-50010
main90950-01436-16i198908-198909
BROWN,TRIM4#
sub64353-50010
main90950-01436-24i198710-198909
DARK BLUE,TRIM8#
sub64353-50010
main90950-01436-25i198710-198908
DARK BEIGE,TRIM4#
sub64353-50010
main90950-01436-B1i199009-199206
SHADOW GRAY,TRIM1#
sub64353-50010
main90950-01436-E1i198909-199206
BROWN,TRIM4#
sub64353-50010
main90950-01436-J0i198909-199206
DARK BLUE,TRIM8#
sub64353-50010
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-12280-03i198802-198808
SHADOW GRAY,TRIM1#
main64730-12280-04i198802-198808
DARK BLUE,TRIM8#
main64730-12280-05i198802-198808
DARK BEIGE,TRIM4#
main64730-12290-03i198808-199009
SHADOW GRAY,TRIM1#
main64730-12290-04i198808-199009
DARK BLUE,TRIM8#
main64730-12290-05i198808-198908
DARK BEIGE,TRIM4#
main64730-12290-06i198908-199009
BROWN,TRIM4#
main64730-13010-03i198710-198808
SHADOW GRAY,TRIM1#
main64730-13010-04i198710-198808
DARK BLUE,TRIM8#
main64730-13010-05i198710-198808
DARK BEIGE,TRIM4#
main64730-13020-03i198808-199206
SHADOW GRAY,TRIM1#
main64730-13020-04i198808-199206
DARK BLUE,TRIM8#
main64730-13020-05i198808-198908
DARK BEIGE,TRIM4#
main64730-13020-06i198908-199206
BROWN,TRIM4#
main64730-13030-03i198710-198808
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64730-13030-04i198710-198808
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64730-13030-05i198710-198808
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64730-13040-03i198808-198911
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64730-13040-04i198808-198911
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64730-13040-05i198808-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64730-13040-06i198911-199206
W(TONNEAU COVER),BROWN,TRIM4#
64740BBOARD, DECK TRIM SIDE, LH
main64740-12280-03i198802-198808
SHADOW GRAY,TRIM1#
main64740-12280-04i198802-198808
DARK BLUE,TRIM8#
main64740-12280-05i198802-198808
DARK BEIGE,TRIM4#
main64740-12290-03i198808-199009
SHADOW GRAY,TRIM1#
main64740-12290-04i198808-199009
DARK BLUE,TRIM8#
main64740-12290-05i198808-198908
DARK BEIGE,TRIM4#
main64740-12290-06i198908-199009
BROWN,TRIM4#
main64740-13010-03i198710-198808
SHADOW GRAY,TRIM1#
main64740-13010-04i198710-198808
DARK BLUE,TRIM8#
main64740-13010-05i198710-198808
DARK BEIGE,TRIM4#
main64740-13020-03i198808-199206
SHADOW GRAY,TRIM1#
main64740-13020-04i198808-199206
DARK BLUE,TRIM8#
main64740-13020-05i198808-198908
DARK BEIGE,TRIM4#
main64740-13020-06i198908-199206
BROWN,TRIM4#
main64740-13030-03i198710-198808
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64740-13030-04i198710-198808
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64740-13030-05i198710-198808
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64740-13040-03i198808-198911
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64740-13040-04i198808-198911
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64740-13040-05i198808-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64740-13040-06i198911-199206
W(TONNEAU COVER),BROWN,TRIM4#
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
main64901-13010-03i198710-199206
SHADOW GRAY,TRIM1#
main64901-13010-04i198710-199206
DARK BLUE,TRIM8#
main64901-13010-05i198710-198908
DARK BEIGE,TRIM4#
main64901-13010-06i198908-199206
BROWN,TRIM4#
64931BHANGER, TONNEAU COVER, RH
main64931-13010-03i198710-199206
SHADOW GRAY,TRIM1#
main64931-13010-04i198710-199206
DARK BLUE,TRIM8#
main64931-13010-05i198710-198908
DARK BEIGE,TRIM4#
main64931-13010-06i198908-199206
BROWN,TRIM4#
64932BHANGER, TONNEAU COVER, LH
main64932-13010-03i198710-199206
SHADOW GRAY,TRIM1#
main64932-13010-04i198710-199206
DARK BLUE,TRIM8#
main64932-13010-05i198710-198908
DARK BEIGE,TRIM4#
main64932-13010-06i198908-199206
BROWN,TRIM4#
64935AHOLDER, TONNEAU COVER
main64935-13020×2i198710-199206
9015450018
main90154-50018
9015950235
main90159-50235
9016460017
main90164-60017
9018906097
main90189-06097
9046710012
main90467-10012
9161560616
main91615-60616
9356614512
main93566-14512

26 parts on this diagram · 2 diagrams in section
