INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

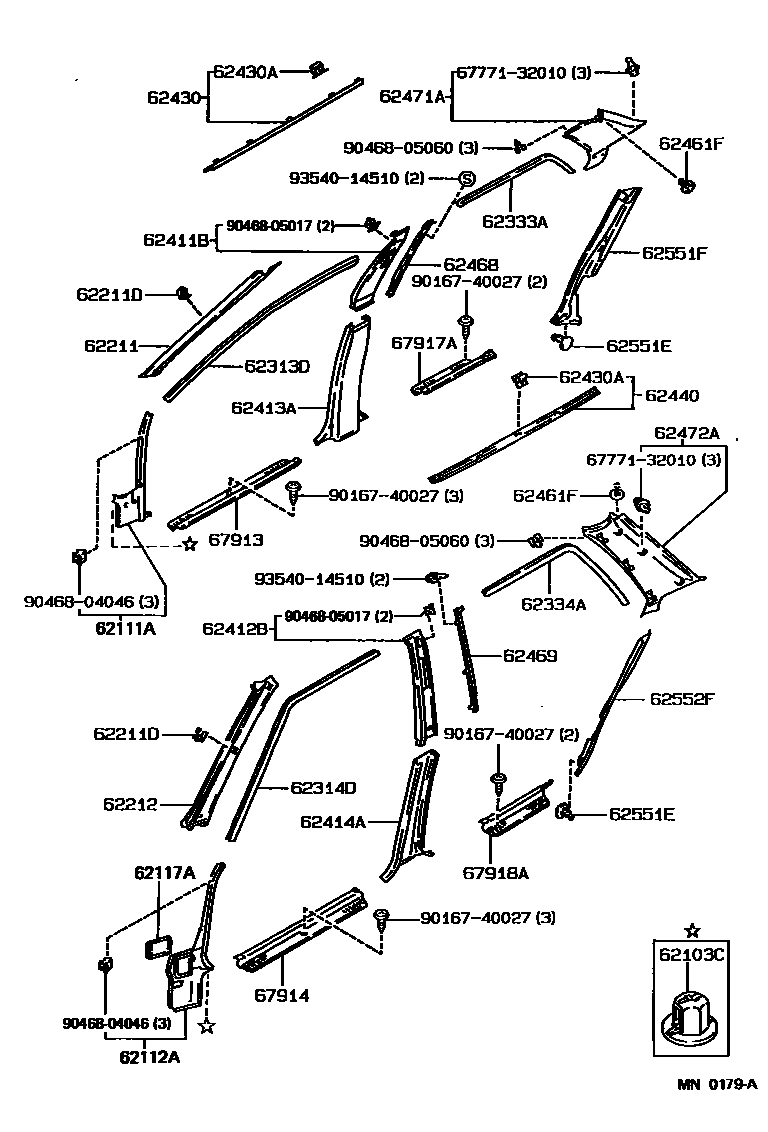

Parts diagram
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05050-01×2i198708-199106
BLACK,BLACK,TRIM1#,3#,4#,8#
main90467-08160×2i199108-199206
TYPE B
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-12150-02i198708-199206
MAROON,TRIM3#
main62101-12150-03i198708-199206
SHADOW GRAY,TRIM1#
main62101-12150-04i198708-199206
DARK BLUE,TRIM8#
main62101-12150-05i198708-198908
DARK BEIGE,TRIM4#
main62101-12150-06i198908-199206
BROWN,TRIM4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-12150-02i198708-199206
MAROON,TRIM3#
main62102-12150-03i198708-199206
SHADOW GRAY,TRIM1#
main62102-12150-04i198708-199206
DARK BLUE,TRIM8#
main62102-12150-05i198708-198908
DARK BEIGE,TRIM4#
main62102-12150-06i198908-199206
BROWN,TRIM4#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12100-02i198901-198908
RED,TRIM3#
main62117-12100-03i198708-199206
SHADOW GRAY,TRIM1#
main62117-12100-04i198708-199206
DARK BLUE,TRIM8#
main62117-12100-05i198708-198908
DARK BEIGE,TRIM4#
main62117-12100-06i198908-199206
BROWN,TRIM4#
main62117-12100-12i198708-199206
MAROON,TRIM3#
62211GARNISH, FRONT PILLAR, RH
main62211-12190-02i198708-199206
MAROON,TRIM3#
main62211-12190-03i198708-199206
SHADOW GRAY,TRIM1#
main62211-12190-04i198708-199206
DARK BLUE,TRIM8#
main62211-12190-05i198708-198908
DARK BEIGE,TRIM4#
main62211-12190-06i198908-199206
BROWN,TRIM4#
main62211-12210-03i198802-199009
SHADOW GRAY,TRIM1#
main62211-12210-04i198802-199009
DARK BLUE,TRIM8#
main62211-12210-05i198802-198908
DARK BEIGE,TRIM4#
main62211-12210-06i198908-199009
BROWN,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05060×4i198708-199206
62212GARNISH, FRONT PILLAR, LH
main62212-12190-02i198708-199206
MAROON,TRIM3#
main62212-12190-03i198708-199206
SHADOW GRAY,TRIM1#
main62212-12190-04i198708-199206
DARK BLUE,TRIM8#
main62212-12190-05i198708-198908
DARK BEIGE,TRIM4#
main62212-12190-06i198908-199206
BROWN,TRIM4#
main62212-12210-03i198802-199009
SHADOW GRAY,TRIM1#
main62212-12210-04i198802-199009
DARK BLUE,TRIM8#
main62212-12210-05i198802-198908
DARK BEIGE,TRIM4#
main62212-12210-06i198908-199009
BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-12130-02i198708-199206
MAROON,TRIM3#
main62313-12130-03i198908-199008
SHADOW GRAY,TRIM1#
main62313-12130-04i198708-199206
DARK BLUE,TRIM8#
main62313-12130-05i198708-198908
DARK BEIGE,TRIM4#
main62313-12130-06i198908-199206
BROWN,TRIM4#
main62313-12140-03i198802-199009
SHADOW GRAY,TRIM1#
main62313-12140-04i198802-199009
DARK BLUE,TRIM8#
main62313-12140-05i198802-198908
DARK BEIGE,TRIM4#
main62313-12140-06i198908-199009
BROWN,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-12130-02i198708-199206
MAROON,TRIM3#
main62313-12130-03i199008-199206
SHADOW GRAY,TRIM1#
main62313-12130-04i198708-199206
DARK BLUE,TRIM8#
main62313-12130-05i198708-198908
DARK BEIGE,TRIM4#
main62313-12130-06i198908-199206
BROWN,TRIM4#
main62313-12140-03i198802-199009
SHADOW GRAY,TRIM1#
main62313-12140-04i198802-199009
DARK BLUE,TRIM8#
main62313-12140-05i198802-198908
DARK BEIGE,TRIM4#
main62313-12140-06i198908-199009
BROWN,TRIM4#
62333ATRIM, REAR DOOR OPENING, RH
main62333-12060-02i198708-199206
MAROON,TRIM3#
main62333-12060-03i199008-199206
SHADOW GRAY,TRIM1#
main62333-12060-04i198708-199206
DARK BLUE,TRIM8#
main62333-12060-05i198708-198908
DARK BEIGE,TRIM4#
main62333-12060-06i198908-199206
BROWN,TRIM4#
main62333-12100-03i198802-199009
SHADOW GRAY,TRIM1#
main62333-12100-04i198802-199009
DARK BLUE,TRIM8#
main62333-12100-05i198802-198908
DARK BEIGE,TRIM4#
main62333-12100-06i198908-199009
BROWN,TRIM4#
main62333-13050-03i198710-199206
SHADOW GRAY,TRIM1#
main62333-13050-04i198710-199206
DARK BLUE,TRIM8#
main62333-13050-05i198710-198908
DARK BEIGE,TRIM4#
main62333-13050-06i198908-199206
BROWN,TRIM4#
62334ATRIM, REAR DOOR OPENING, LH
main62333-12060-02i198708-199206
MAROON,TRIM3#
main62333-12060-03i199008-199206
SHADOW GRAY,TRIM1#
main62333-12060-04i198708-199206
DARK BLUE,TRIM8#
main62333-12060-05i198708-198908
DARK BEIGE,TRIM4#
main62333-12060-06i198908-199206
BROWN,TRIM4#
main62333-12100-03i198802-199009
SHADOW GRAY,TRIM1#
main62333-12100-04i198802-199009
DARK BLUE,TRIM8#
main62333-12100-05i198802-198908
DARK BEIGE,TRIM4#
main62333-12100-06i198908-199009
BROWN,TRIM4#
main62333-13050-03i198710-199206
SHADOW GRAY,TRIM1#
main62333-13050-04i198710-199206
DARK BLUE,TRIM8#
main62333-13050-05i198710-198908
DARK BEIGE,TRIM4#
main62333-13050-06i198908-199206
BROWN,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-12400-02i198708-198811
MAROON,TRIM3#
main62411-12400-03i198708-198908
SHADOW GRAY,TRIM1#
main62411-12400-04i198708-198811
DARK BLUE,TRIM8#
main62411-12400-05i198708-198811
DARK BEIGE,TRIM4#
main62411-12400-06i198908-199005
BROWN,TRIM4#
main62411-12400-B0i199009-199206
SHADOW GRAY,TRIM1#
main62411-12400-D0i198908-199206
MAROON,TRIM3#
main62411-12400-E0i198811-198908
DARK BEIGE,TRIM4#
main62411-12400-E1i199005-199206
BROWN,TRIM4#
main62411-12400-J0i198908-199206
DARK BLUE,TRIM8#
main62411-12410-02i198908-198909
MAROON,TRIM3#
main62411-12410-03i198908-199009
SHADOW GRAY,TRIM1#
main62411-12410-04i198908-198909
DARK BLUE,TRIM8#
main62411-12410-06i198908-198909
BROWN,TRIM4#
main62411-12410-B1i199009-199206
SHADOW GRAY,TRIM1#
main62411-12410-D0i198909-199206
MAROON,TRIM3#
main62411-12410-E0i198909-199206
BROWN,TRIM4#
main62411-12410-J0i198909-199206
DARK BLUE,TRIM8#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-12400-02i198708-198811
MAROON,TRIM3#
main62412-12400-03i198708-198908
SHADOW GRAY,TRIM1#
main62412-12400-04i198708-198811
DARK BLUE,TRIM8#
main62412-12400-05i198708-198811
DARK BEIGE,TRIM4#
main62412-12400-06i198908-198909
BROWN,TRIM4#
main62412-12400-B0i199009-199206
SHADOW GRAY,TRIM1#
main62412-12400-D0i198811-198908
MAROON,TRIM3#
main62412-12400-E0i198811-198908
DARK BEIGE,TRIM4#
main62412-12400-E1i198909-199206
BROWN,TRIM4#
main62412-12400-J0i198811-198908
DARK BLUE,TRIM8#
main62412-12410-02i198908-198909
MAROON,TRIM3#
main62412-12410-03i198908-199008
SHADOW GRAY,TRIM1#
main62412-12410-04i198908-198909
DARK BLUE,TRIM8#
main62412-12410-06i198908-198909
BROWN,TRIM4#
main62412-12410-B1i199008-199206
SHADOW GRAY,TRIM1#
main62412-12410-D0i198909-199206
MAROON,TRIM3#
main62412-12410-E0i198909-199206
BROWN,TRIM4#
main62412-12410-J0i198909-199206
DARK BLUE,TRIM8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-12170-02i198708-199206
MAROON,TRIM3#
main62413-12170-03i198708-199206
SHADOW GRAY,TRIM1#
main62413-12170-04i198708-199206
DARK BLUE,TRIM8#
main62413-12170-05i198708-198908
DARK BEIGE,TRIM4#
main62413-12170-06i198908-199206
BROWN,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-12170-02i198708-199206
MAROON,TRIM3#
main62414-12170-03i198708-199206
SHADOW GRAY,TRIM1#
main62414-12170-04i198708-199206
DARK BLUE,TRIM8#
main62414-12170-05i198708-198908
DARK BEIGE,TRIM4#
main62414-12170-06i198908-199206
BROWN,TRIM4#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-12090-02i198708-199206
MAROON,TRIM3#
main62431-12090-03i199008-199206
SHADOW GRAY,TRIM1#
main62431-12090-04i198708-199206
DARK BLUE,TRIM8#
main62431-12090-05i198708-198908
DARK BEIGE,TRIM4#
main62431-12090-06i198908-199206
BROWN,TRIM4#
main62431-12130-03i198802-199009
SHADOW GRAY,TRIM1#
main62431-12130-04i198802-199009
DARK BLUE,TRIM8#
main62431-12130-05i198802-198908
DARK BEIGE,TRIM4#
main62431-12130-06i198908-199009
BROWN,TRIM4#
main62431-13010-03i198710-199206
SHADOW GRAY,TRIM1#
main62431-13010-04i198710-199206
DARK BLUE,TRIM8#
main62431-13010-05i198710-198908
DARK BEIGE,TRIM4#
main62431-13010-06i198908-199206
BROWN,TRIM4#
62430ACLIP, ROOF SIDE RAIL GARNISH
main90468-05017×12i198710-199206
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-12070-02i198708-199206
MAROON,TRIM3#
main62432-12070-03i199008-199206
SHADOW GRAY,TRIM1#
main62432-12070-04i198708-199206
DARK BLUE,TRIM8#
main62432-12070-05i198708-198908
DARK BEIGE,TRIM4#
main62432-12070-06i199008-199206
BROWN,TRIM4#
main62432-12110-03i198802-199009
SHADOW GRAY,TRIM1#
main62432-12110-04i198802-199009
DARK BLUE,TRIM8#
main62432-12110-05i198802-198908
DARK BEIGE,TRIM4#
main62432-12110-06i198908-199009
BROWN,TRIM4#
main62432-13010-03i198710-199206
SHADOW GRAY,TRIM1#
main62432-13010-04i198710-199206
DARK BLUE,TRIM8#
main62432-13010-05i198710-198908
DARK BEIGE,TRIM4#
main62432-13010-06i198908-199206
BROWN,TRIM4#
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
main90467-05062-02×2i198708-198809
MAROON,TRIM3#
main90467-05062-03×2i198708-199009
SHADOW GRAY,TRIM1#
main90467-05062-04×2i198708-198809
DARK BLUE,TRIM8#
main90467-05062-05×2i198708-198809
DARK BEIGE,TRIM4#
main90467-05062-06×2i198908-198909
BROWN,TRIM4#
main90467-05062-B0×2i199009-199206
SHADOW GRAY,TRIM1#
main90467-05062-D0×2i198809-199206
MAROON,TRIM3#
main90467-05062-E0×2i198809-198908
DARK BEIGE,TRIM4#
main90467-05062-E2×2i198909-199206
BROWN,TRIM4#
main90467-05062-J0×2i198809-199206
DARK BLUE,TRIM8#
62468GARNISH, CENTER PILLAR, REAR RH
main62468-12020-02i198708-199206
MAROON,TRIM3#
main62468-12020-03i198708-199206
SHADOW GRAY,TRIM1#
main62468-12020-04i198708-199206
DARK BLUE,TRIM8#
main62468-12020-05i198708-198908
DARK BEIGE,TRIM4#
main62468-12020-06i198908-199206
BROWN,TRIM4#
62469GARNISH, CENTER PILLAR, REAR LH
main62469-12020-02i198708-199206
MAROON,TRIM3#
main62469-12020-03i198708-199206
SHADOW GRAY,TRIM1#
main62469-12020-04i198708-199206
DARK BLUE,TRIM8#
main62469-12020-05i198708-198908
DARK BEIGE,TRIM4#
main62469-12020-06i198908-199206
BROWN,TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
main62405-12160-04i198802-198808
DARK BLUE,TRIM8#
main62405-12160-05i198802-198808
DARK BEIGE,TRIM4#
main62405-12170-03i198808-199009
SHADOW GRAY,TRIM1#
main62405-12170-04i198808-199009
DARK BLUE,TRIM8#
main62405-12170-05i198808-198908
DARK BEIGE,TRIM4#
main62405-12170-06i198908-199009
BROWN,TRIM4#
main62471-12210-02i198708-198808
MAROON,TRIM3#
main62471-12210-03i198811-198908
SHADOW GRAY,TRIM1#
main62471-12210-04i198811-199206
DARK BLUE,TRIM8#
main62471-12210-05i198708-198808
DARK BEIGE,TRIM4#
main62471-12210-06i198908-199206
BROWN,TRIM4#
main62471-12380-02i198811-199206
W(SUN ROOF),MAROON,TRIM3#
main62471-12380-03i198808-198811
SHADOW GRAY,TRIM1#
main62471-12380-04i198708-198808
W(SUN ROOF),DARK BLUE,TRIM8#
main62471-12380-05i198811-198908
W(SUN ROOF),DARK BEIGE,TRIM4#
main62471-12380-06i198908-199206
W(SUN ROOF),BROWN,TRIM4#
62472AGARNISH, ROOF SIDE, INNER LH
main62406-12160-03i198802-198808
SHADOW GRAY,TRIM1#
main62406-12160-04i198802-198808
DARK BLUE,TRIM8#
main62406-12160-05i198802-198808
DARK BEIGE,TRIM4#
main62406-12170-03i198808-199009
SHADOW GRAY,TRIM1#
main62406-12170-04i198808-199009
DARK BLUE,TRIM8#
main62406-12170-05i198808-198908
DARK BEIGE,TRIM4#
main62406-12170-06i198908-199009
BROWN,TRIM4#
main62472-12220-02i198811-199206
MAROON,TRIM3#
main62472-12220-03i198811-198908
SHADOW GRAY,TRIM1#
main62472-12220-04i198708-198808
DARK BLUE,TRIM8#
main62472-12220-05i198811-198908
DARK BEIGE,TRIM4#
main62472-12220-06i198908-199206
BROWN,TRIM4#
main62472-12380-02i198708-198808
W(SUN ROOF),MAROON,TRIM3#
main62472-12380-03i198808-198811
SHADOW GRAY,TRIM1#
main62472-12380-04i198811-199206
W(SUN ROOF),DARK BLUE,TRIM8#
main62472-12380-05i198808-198811
DARK BEIGE,TRIM4#
main62472-12380-06i198908-199206
W(SUN ROOF),BROWN,TRIM4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-06049-01×4i198809-198908
BLACK,TRIM1#,3#,8#
main90467-06049-03×4i198708-198908
GRAY,TRIM1#
main90467-06049-12×4i198708-198809
MAROON,TRIM3#
main90467-06049-15×4i198708-198809
DARK BEIGE,TRIM4#
main90467-06049-16×4i198908-198909
BROWN,TRIM4#
main90467-06049-24×4i198708-198809
DARK BLUE,TRIM8#
main90467-06049-B0×4i198908-199008
SHADOW GRAY,TRIM1#
main90467-06049-D0×4i198809-199206
MAROON,TRIM3#
main90467-06049-E0×4i198809-198908
DARK BEIGE,TRIM4#
main90467-06049-E4×4i198909-199206
BROWN,TRIM4#
main90467-06049-J1×4i198809-199206
DARK BLUE,TRIM8#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-12110-02i198708-199206
MAROON,TRIM3#
main62551-12110-03i199008-199206
SHADOW GRAY,TRIM1#
main62551-12110-04i198708-199206
DARK BLUE,TRIM8#
main62551-12110-05i198708-198908
DARK BEIGE,TRIM4#
main62551-12110-06i198908-199206
BROWN,TRIM4#
main62551-12130-02i198808-199008
MAROON,TRIM3#
main62551-12130-03i198808-199008
SHADOW GRAY,TRIM1#
main62551-12130-04i198808-199008
DARK BLUE,TRIM8#
main62551-12130-05i198808-198908
DARK BEIGE,TRIM4#
main62551-12130-06i198908-199008
BROWN,TRIM4#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-12110-02i198708-199206
MAROON,TRIM3#
main62552-12110-03i198708-199008
SHADOW GRAY,TRIM1#
main62552-12110-04i198708-199206
DARK BLUE,TRIM8#
main62552-12110-05i198708-198908
DARK BEIGE,TRIM4#
main62552-12110-06i198908-199206
BROWN,TRIM4#
main62552-12130-02i198808-199008
MAROON,TRIM3#
main62552-12130-03i198808-199008
SHADOW GRAY,TRIM1#
main62552-12130-04i198808-199008
DARK BLUE,TRIM8#
main62552-12130-05i198808-198908
DARK BEIGE,TRIM4#
main62552-12130-06i198908-199008
BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-12160-02i198708-199206
MAROON,TRIM3#
main67913-12160-03i198708-199206
SHADOW GRAY,TRIM1#
main67913-12160-04i198708-199206
DARK BLUE,TRIM8#
main67913-12160-05i198708-198908
DARK BEIGE,TRIM4#
main67913-12160-06i198908-199206
BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-12160-02i198708-199206
MAROON,TRIM3#
main67913-12160-03i198708-199206
SHADOW GRAY,TRIM1#
main67913-12160-04i198708-199206
DARK BLUE,TRIM8#
main67913-12160-05i198708-198908
DARK BEIGE,TRIM4#
main67913-12160-06i198908-199206
BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-12060-02i198708-199206
MAROON,TRIM3#
main67917-12060-03i198708-199206
SHADOW GRAY,TRIM1#
main67917-12060-04i198708-199206
DARK BLUE,TRIM8#
main67917-12060-05i198708-198908
DARK BEIGE,TRIM4#
main67917-12060-06i198908-199206
BROWN,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-12050-02i198708-199206
MAROON,TRIM3#
main67918-12050-03i198708-199206
SHADOW GRAY,TRIM1#
main67918-12050-04i198708-199206
DARK BLUE,TRIM8#
main67918-12050-05i198708-198908
DARK BEIGE,TRIM4#
main67918-12050-06i198908-199206
BROWN,TRIM4#
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016740027
main90167-40027
9046804046
main90468-04046
9046805017
main90468-05017
9046805060
main90468-05060
9354014510
main93540-14510

36 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
