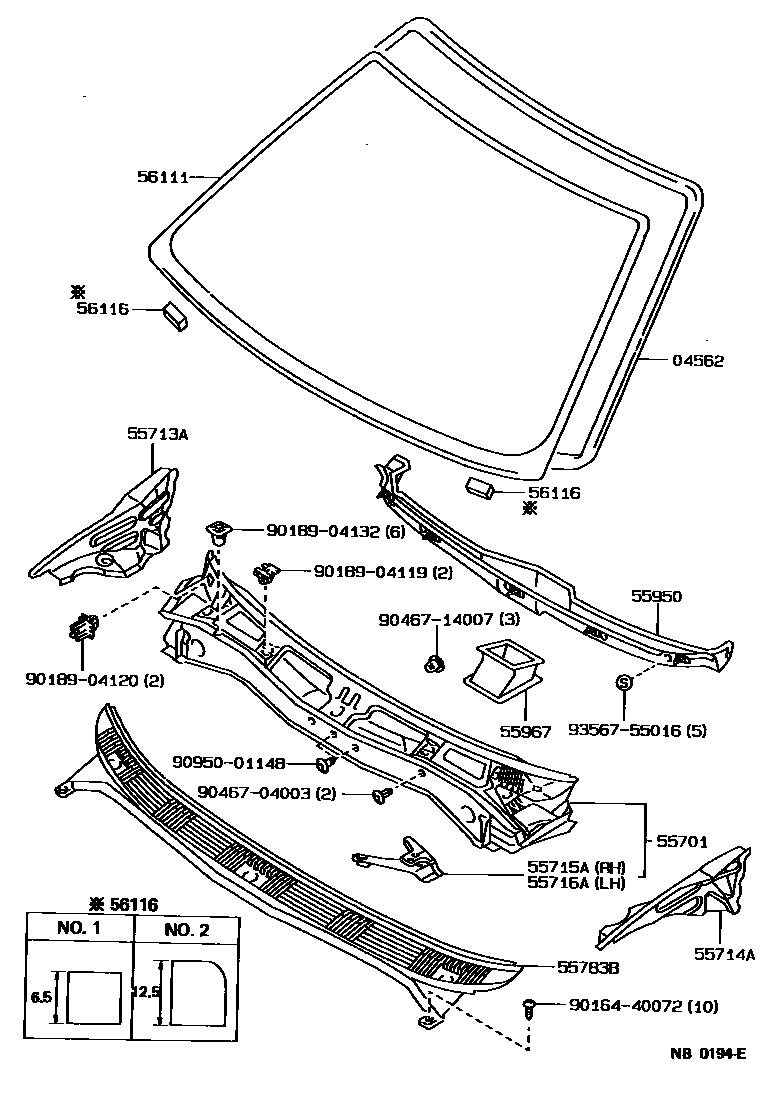

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE9#198708-199206

55701PANEL SUB-ASSY, COWL

main55700-12540iAE92198708-198908

main55700-12640iAE95198802-198908

55713APANEL, COWL TOP SIDE, RH

main55713-12070iAE9#198708-199206

55714APANEL, COWL TOP SIDE, LH

main55714-12070iAE9#198708-199206

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090iAE9#198708-199206

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090iAE9#198708-199206

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12030iAE9#..USA198708-199206

main55708-12070iAE9#..CND198708-199206

55950NOZZLE ASSY, DEFROSTER

main55950-12110iAE9#198708-199206

55967NOZZLE, DEFROSTER, LOWER

main55967-12020iAE9#198708-199206

56111GLASS, WINDSHIELD

main56111-1A200iAE95..WG..DX198802-199009

*TL,T=4.7

main56111-1A210iAE95..SR5198802-199009

*TL,T=4.7

main56111-1A300iAE95..SED;AE92..DX,STD198708-199008

*TL,T=4.7

main56111-1A310iAE92..LE198708-199008

*TL,T=4.7

56116SPACER, WINDSHIELD GLASS

main56116-12020iAE9#198908-199009

main56116-24010×2iAE9#198708-199206

9016440072

main90164-40072

9018904119

main90189-04119

9018904120

main90189-04120

9018904132

main90189-04132

9046704003

main90467-04003

9046714007

main90467-14007

9095001148

main90950-01148

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
