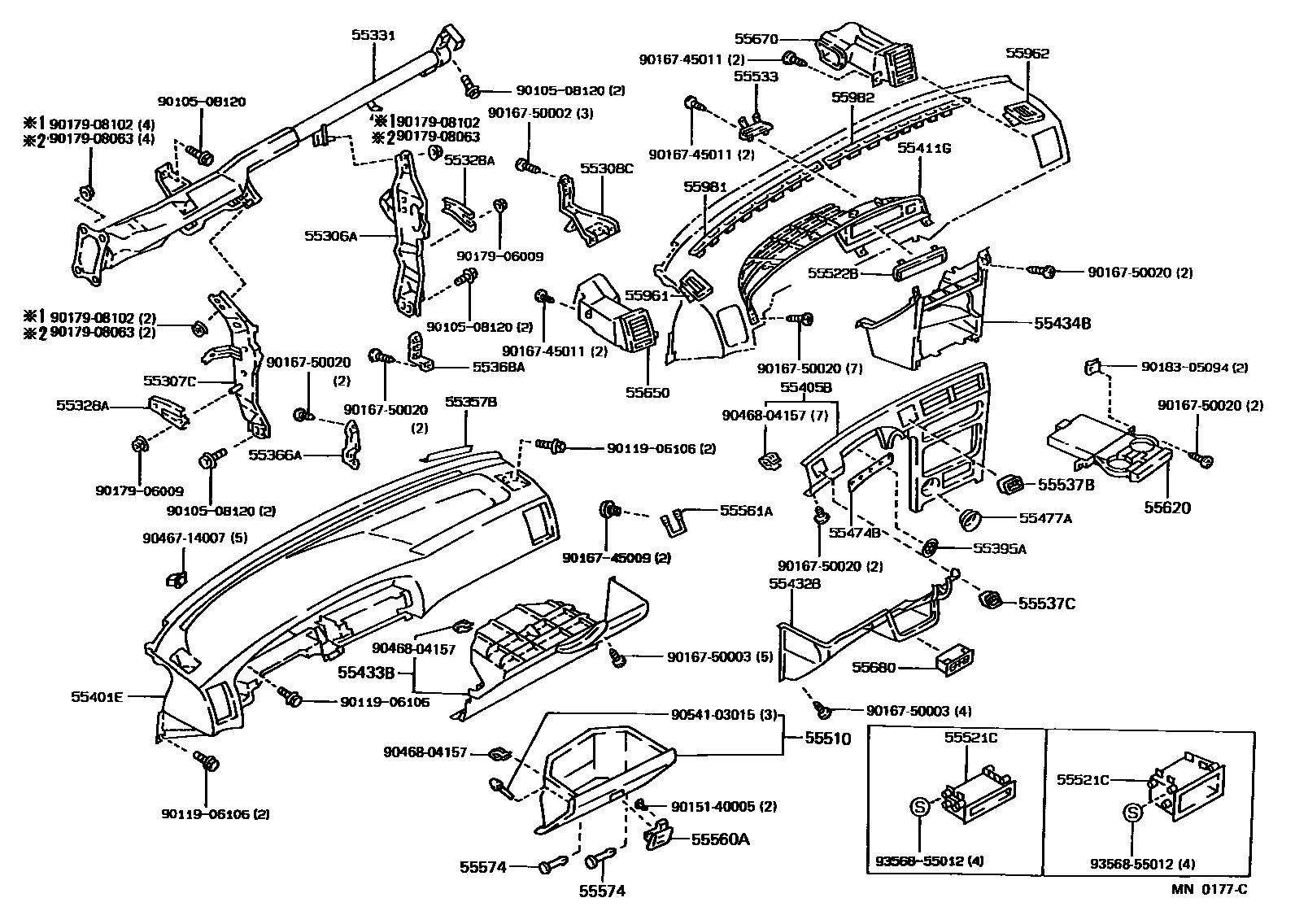

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12070iAE92..CBR;AE92..CND..EFI198708-199206

main55306-12110iAE95..CND198802-199009

main55306-12120iAE92..USA198908-199206

main55306-12130iAE95..USA198908-199009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12120iAE92..CBR;AE92..CND..EFI198708-199206

main55307-12160iAE95198802-199009

main55307-12170iAE92..USA198908-199206

main55307-12180iAE95..USA198908-199009

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12140iAE9#..USA198908-199206

main55308-12150iAE9#198708-199206

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-12040iAE9#198708-199206

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12200iAE92198708-198710

sub55330-12220

main55330-12210iAE9#..USA198908-199206

main55330-12220iAE9#198710-199206

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010iAE9#198708-199206

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12020iAE9#198708-199206

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-12020iAE9#198708-199206

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-12010iAE9#..DX,LE,SR5198708-199206

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12260-02iAE9#..SED198708-198905

MAROON,TRIM3#

sub55401-12261

main55401-12260-03iAE9#198708-198905

SHADOW GRAY,TRIM1#

sub55401-12261

main55401-12260-04iAE9#198708-198905

DARK BLUE,TRIM8#

sub55401-12261

main55401-12260-05iAE9#198708-198905

DARK BEIGE,TRIM4#

sub55401-12261

main55401-12261-02iAE9#..SED198905-199206

MAROON,TRIM3#

main55401-12261-03iAE9#198905-199206

SHADOW GRAY,TRIM1#

main55401-12261-04iAE9#198905-199206

DARK BLUE,TRIM8#

main55401-12261-05iAE9#198905-198908

DARK BEIGE,TRIM4#

main55401-12261-06iAE9#198908-199206

BROWN,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12460-02iAE9#..SED198708-199206

MAROON,TRIM3#

main55405-12460-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

main55405-12460-04iAE9#198708-199206

DARK BLUE,TRIM8#

main55405-12460-05iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main55405-12460-06iAE9#198908-199206

BROWN,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12830iAE9#198708-199206

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55046-12010-02iAE9#..SED..USA198908-198909

MAROON,TRIM3#

sub55046-12010

main55046-12010-03iAE9#..USA198908-199008

SHADOW GRAY,TRIM1#

sub55046-12010

main55046-12010-04iAE9#..USA198908-198909

DARK BLUE,TRIM8#

sub55046-12010

main55046-12010-06iAE9#..USA198908-198909

BROWN,TRIM4#

sub55046-12010

main55046-12010-B1iAE92..USA199008-199206

SHADOW GRAY,TRIM1#

sub55046-12010

main55046-12010-D0iAE9#..SED..USA198909-199206

MAROON,TRIM3#

sub55046-12010

main55046-12010-E0iAE9#..USA198909-199206

BROWN,TRIM4#

sub55046-12010

main55046-12010-J0iAE9#..USA198909-199206

DARK BLUE,TRIM8#

sub55046-12010

main55432-12270-02iAE9#..SED198708-199206

MAROON,TRIM3#

main55432-12270-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

main55432-12270-04iAE9#198708-199206

DARK BLUE,TRIM8#

main55432-12270-05iAE9#198708-198908

DARK BEIGE,TRIM4#

main55432-12270-06iAE9#..CND198908-199206

BROWN,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12060-02iAE9#..SED..CND198708-199206

MAROON,TRIM3#

sub55433-12060

main55433-12060-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

sub55433-12060

main55433-12060-04iAE9#198708-199206

DARK BLUE,TRIM8#

sub55433-12060

main55433-12060-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55433-12060

main55433-12060-06iAE9#..WG..CND;AE92..LE..CND198908-199206

BROWN,TRIM4#

sub55433-12060

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12050-02iAE9#..SED..CND198708-199206

MAROON,TRIM3#

main55434-12050-03iAE9#..CND198708-199206

SHADOW GRAY,TRIM1#

main55434-12050-04iAE9#..CND198708-199206

DARK BLUE,TRIM8#

main55434-12050-05iAE9#198708-198908

DARK BEIGE,TRIM4#

main55434-12050-06iAE9#..CND198908-199206

BROWN,TRIM4#

main55434-12080-02iAE9#..SED..USA198908-198909

MAROON,TRIM3#

sub55434-12080

main55434-12080-03iAE9#..USA198908-199009

SHADOW GRAY,TRIM1#

sub55434-12080

main55434-12080-04iAE9#..USA198908-198909

DARK BLUE,TRIM8#

sub55434-12080

main55434-12080-06iAE9#..USA198908-198909

BROWN,TRIM4#

sub55434-12080

main55434-12080-B1iAE92..USA199009-199206

SHADOW GRAY,TRIM1#

sub55434-12080

main55434-12080-D0iAE9#..SED..USA198909-199206

MAROON,TRIM3#

sub55434-12080

main55434-12080-E0iAE9#..USA198909-199206

BROWN,TRIM4#

sub55434-12080

main55434-12080-J0iAE9#..USA198909-199206

DARK BLUE,TRIM8#

sub55434-12080

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-12120iAE9#..DX,LE,SR5198708-199206

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12080iAE9#198708-199206

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12260-02iAE9#..SED198708-199206

MAROON,TRIM3#

sub55550-12260

main55550-12260-03iAE92..CND198708-199206

SHADOW GRAY,TRIM1#

sub55550-12260

main55550-12260-04iAE9#198708-199206

DARK BLUE,TRIM8#

sub55550-12260

main55550-12260-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55550-12260

main55550-12260-06iAE9#..CND198908-199206

BROWN,TRIM4#

sub55550-12260

main55550-12290-02iAE9#..SED..USA198908-198909

MAROON,TRIM3#

sub55550-12290

main55550-12290-03iAE9#..USA198908-199008

SHADOW GRAY,TRIM1#

sub55550-12290

main55550-12290-04iAE9#..USA198908-198909

DARK BLUE,TRIM8#

sub55550-12290

main55550-12290-06iAE9#..USA198908-198909

BROWN,TRIM4#

sub55550-12290

main55550-12290-B1iAE9#..USA199008-199206

SHADOW GRAY,TRIM1#

sub55550-12290

main55550-12290-D0iAE9#..SED..USA198909-199206

MAROON,TRIM3#

sub55550-12290

main55550-12290-E0iAE9#..USA198909-199206

BROWN,TRIM4#

sub55550-12290

main55550-12290-J0iAE9#..USA198909-199206

DARK BLUE,TRIM8#

sub55550-12290

55521CCOVER, STEREO OPENING

main55521-16030iAE92..EFI198708-199206

W(1DIN SIZE COVER)

main55521-16030iAE92..EFI198708-199206

W(IDIN SIZE COVER)

main55521-16030iAE95198908-199009

main55521-16040iAE92..CBR198708-199206

W(2DIN SIZE COVER)

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-12140iAE9#..DX198708-199206

55533COVER, AUTO CLOCK HOLE

main55533-12100iAE9#..DX,STD198708-199206

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55537-12020-02iAE92..STD198908-199206

MAROON,TRIM3#

sub55537-12020

main55537-12020-03iAE92..STD198908-199206

SHADOW GRAY,TRIM1#

sub55537-12020

main55537-12020-04iAE92..STD198908-199206

DARK BLUE,TRIM8#

sub55537-12020

main55537-12020-06iAE92..STD198908-199206

BROWN,TRIM4#

sub55537-12020

55537CCOVER, REAR DEFOGGER SWITCH HOLE

main55537-12020-02iAE9#..SED198908-199206

MAROON,TRIM3#

sub55537-12020

main55537-12020-03iAE9#..WG;AE92..LE,STD198908-199206

SHADOW GRAY,TRIM1#

sub55537-12020

main55537-12020-04iAE9#198908-199206

DARK BLUE,TRIM8#

sub55537-12020

main55537-12020-06iAE9#198908-199206

BROWN,TRIM4#

sub55537-12020

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12070-02iAE92..(LE,STD)..USA198908-199009

MAROON,TRIM3#

sub55560-12070

main55560-12070-03iAE9#..USA198908-199009

SHADOW GRAY,TRIM1#

sub55560-12070

main55560-12070-04iAE9#..USA198908-199012

DARK BLUE,TRIM8#

sub55560-12070

main55560-12070-06iAE9#..USA198908-199012

BROWN,TRIM4#

sub55560-12070

main55560-12070-B1iAE92..USA199009-199206

SHADOW GRAY,TRIM1#

sub55560-12070

main55560-12070-D0iAE92..SED..USA199009-199206

MAROON,TRIM3#

sub55560-12070

main55560-12070-E0iAE92..USA199012-199206

BROWN,TRIM4#

sub55560-12070

main55560-12070-J0iAE92..USA199012-199206

DARK BLUE,TRIM8#

sub55560-12070

main55560-16050-02iAE92..LE..CND198708-199206

MAROON,TRIM3#

sub55560-16050

main55560-16050-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

sub55560-16050

main55560-16050-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55560-16050

main55560-16050-06iAE9#..CND198908-199206

BROWN,TRIM4#

sub55560-16050

main55560-16050-14iAE9#..CND198708-199206

DARK BLUE,TRIM8#

sub55560-16050

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12050iAE9#198708-199206

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAE9#198708-199206

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12010-02iAE92..SED..(DX,LE)198708-199206

MAROON,TRIM3#

sub55620-12010

main55620-12010-03iAE92..DX,LE198708-199206

SHADOW GRAY,TRIM1#

sub55620-12010

main55620-12010-04iAE92..DX,LE198708-199206

DARK BLUE,TRIM8#

sub55620-12010

main55620-12010-05iAE92198708-198908

DARK BEIGE,TRIM4#

sub55620-12010

main55620-12010-06iAE92..DX,LE198908-199206

BROWN,TRIM4#

sub55620-12010

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12160-02iAE9#..SED198708-199206

MAROON,TRIM3#

sub55650-12160

main55650-12160-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

sub55650-12160

main55650-12160-04iAE9#198708-199206

DARK BLUE,TRIM8#

sub55650-12160

main55650-12160-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55650-12160

main55650-12160-06iAE9#198908-199206

BROWN,TRIM4#

sub55650-12160

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12120-02iAE92..SED198708-199206

MAROON,TRIM3#

sub55670-12120

main55670-12120-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

sub55670-12120

main55670-12120-04iAE92198708-199206

DARK BLUE,TRIM8#

sub55670-12120

main55670-12120-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55670-12120

main55670-12120-06iAE9#..WG;AE92..LE,STD198908-199206

BROWN,TRIM4#

sub55670-12120

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iAE92..SED..USA198708-198807

MAROON,TRIM3#

sub55680-14030

main55680-14030-05iAE9#..USA198708-198908

DARK BEIGE,TRIM4#

sub55680-14030

main55680-14030-13iAE9#..USA198708-199206

SHADOW GRAY,TRIM1#

sub55680-14030

main55680-14030-14iAE9#..USA198708-198807

DARK BLUE,TRIM8#

sub55680-14030

main55680-14030-D0iAE9#..SED..USA198807-199206

MAROON,TRIM3#

sub55680-14030

main55680-14030-E0iAE9#198908-199206

BROWN,TRIM4#

sub55680-14030

main55680-14030-J0iAE9#198807-199206

DARK BLUE,TRIM8#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12150-02iAE9#..SED198708-199206

MAROON,TRIM3#

sub55961-12150

main55961-12150-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

sub55961-12150

main55961-12150-04iAE9#..WG;AE92..LE,STD198708-199206

DARK BLUE,TRIM8#

sub55961-12150

main55961-12150-05iAE9#198708-198908

DARK BEIGE,TRIM4#

sub55961-12150

main55961-12150-06iAE9#198908-199206

BROWN,TRIM4#

sub55961-12150

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12130-02iAE9#..SED198708-199206

MAROON,TRIM3#

main55962-12130-03iAE9#..WG;AE92..LE,STD198708-199206

SHADOW GRAY,TRIM1#

main55962-12130-04iAE9#198708-199206

DARK BLUE,TRIM8#

main55962-12130-05iAE9#198708-198908

DARK BEIGE,TRIM4#

main55962-12130-06iAE9#198908-199206

BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12040-02iAE9#..SED198708-199206

MAROON,TRIM3#

main55981-12040-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

main55981-12040-04iAE9#198708-199206

DARK BLUE,TRIM8#

main55981-12040-05iAE9#198708-198908

DARK BEIGE,TRIM4#

main55981-12040-06iAE9#198908-199206

BROWN,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12040-02iAE9#..SED198708-199206

MAROON,TRIM3#

main55982-12040-03iAE9#198708-199206

SHADOW GRAY,TRIM1#

main55982-12040-04iAE9#198708-199206

DARK BLUE,TRIM8#

main55982-12040-05iAE9#198708-198908

DARK BEIGE,TRIM4#

main55982-12040-06iAE9#198908-199206

BROWN,TRIM4#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016745009

main90167-45009

9016745011

main90167-45011

9016750002

main90167-50002

9016750003

main90167-50003

9016750020

main90167-50020

9017906009

main90179-06009

9017908063

main90179-08063

9017908102

main90179-08102

9018305094

main90183-05094

9046714007

main90467-14007

9046804157

main90468-04157

9054103015

main90541-03015

9356855012

main93568-55012

50 parts on this diagram · 2 diagrams in section
