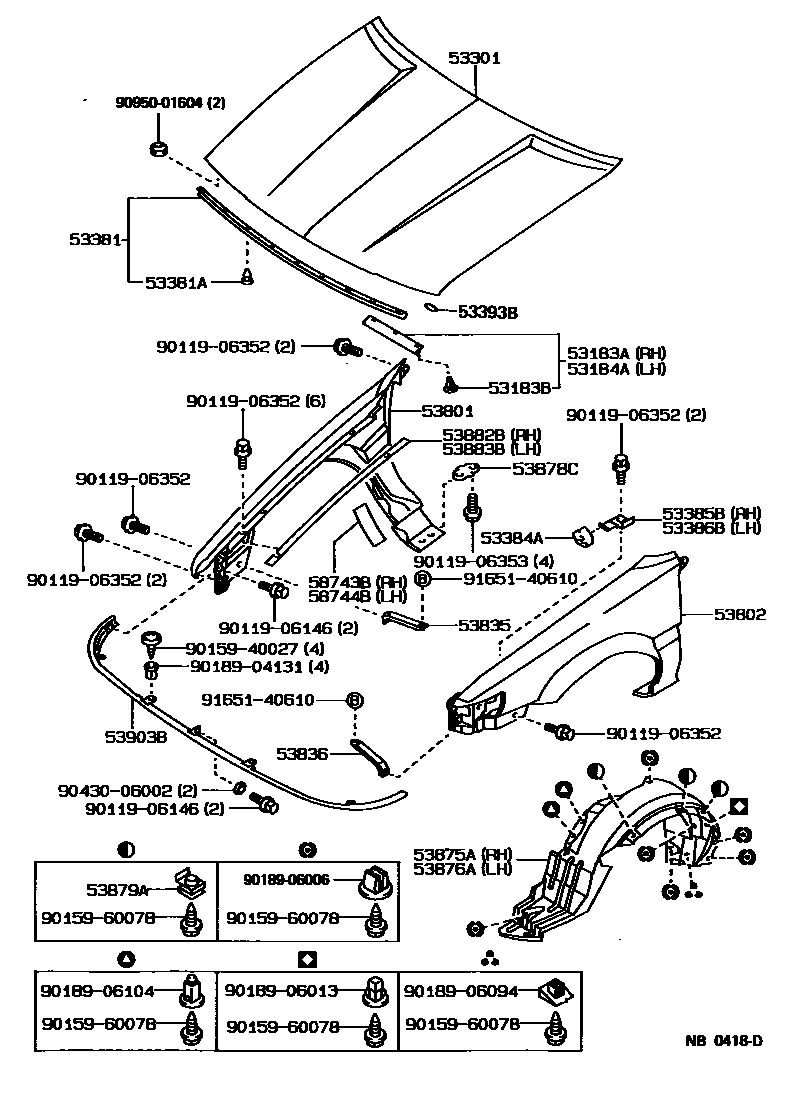

HOOD & FRONT FENDER
53183ASEAL, HEADLAMP COVER, RH
53183BCLIP(FOR HEADLAMP COVER SEAL)
53184ASEAL, HEADLAMP COVER, LH
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53903BPANEL SUB-ASSY, FRONT END
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9011906146
main90119-06146
9011906352
main90119-06352
9011906353
main90119-06353
9015940027
main90159-40027
9015960078
main90159-60078
9018904131
main90189-04131
9018906006
main90189-06006
9018906013
main90189-06013
9018906094
main90189-06094
9018906104
main90189-06104
9043006002
main90430-06002
9095001604
main90950-01604
9165140610
main91651-40610
36 parts on this diagram · 1 diagram in section
