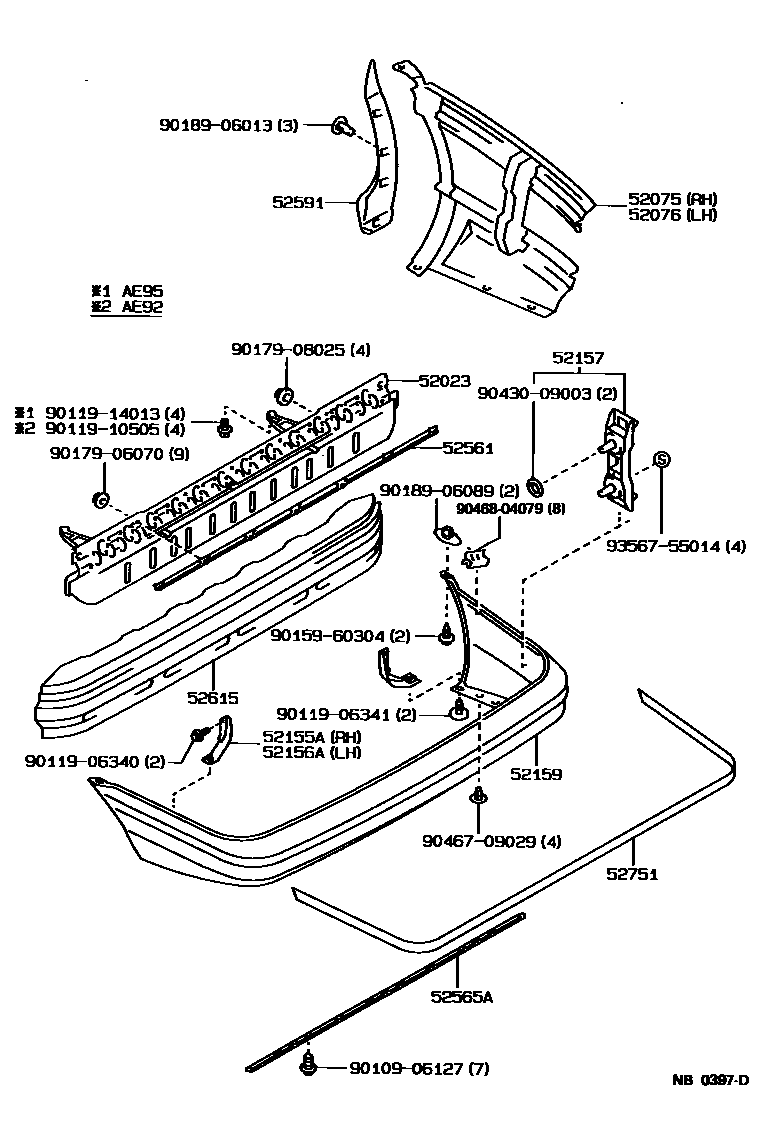

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-12120iAE92..SED198708-199206

main52023-12140iAE95..WG198802-199009

main52023-12160iAE95..SED198808-199008

main52023-13020iAE92..WG198710-199206

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-12010iAE9#..SED198708-199206

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-12010iAE9#..SED198708-199206

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12150iAE9#..SED198708-199206

main52155-13040iAE92..WG198710-199206

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12140iAE92..SED198708-199206

main52156-12170iAE95..SED198808-199008

main52156-13040iAE92..WG198710-199206

52157SUPPORT, REAR BUMPER SIDE, NO.2

main52157-12130iAE9#..SED198708-199206

52159COVER, REAR BUMPER

main52159-12730iAE9#..SED..(DX,STD)198708-199206

W/O(MOULDING)

main52159-12730iAE92..4FC..USA199202-199206

DX PACKAGE

main52159-12840iAE92..LE198708-199008

W(MOULDING)

main52159-12917iAE92..SED..DX198708-199206

TREATED FOR PAINTING

main52159-12917iAE92..4FC..USA199202-199206

DX PACKAGE & TREATED FOR PAINTING

main52159-13040iAE92..WG198710-199206

main52159-1A100iAE95..WG198802-199009

main52159-1A900iAE95..WG198802-199009

TREATED FOR PAINTING

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-12010iAE95..WG198802-199009

main52561-12070iAE9#..SED198708-199206

main52561-13020iAE92..WG198710-199206

52565ARETAINER, REAR BUMPER, LOWER

main52565-12070iAE95..WG198802-199009

main52565-12170iAE9#..SED198708-199206

main52565-13010iAE92..WG198710-199206

52591SEAL, REAR BUMPER SIDE, RH

main52591-12050iAE9#..SED198708-198905

sub52591-12051

main52591-12051iAE9#..SED198905-199206

52615ABSORBER, REAR BUMPER ENERGY

main52615-12080iAE9#..SED198708-199206

main52615-12100iAE95..WG198802-199009

main52615-13020iAE92..WG198710-199206

52751MOULDING, REAR BUMPER

main52751-12130iAE92..LE;AE92..SED..DX..USA..EFI198708-199008

main52751-12240-02iAE92..SED..(DX,LE)199008-199206

RED,4J1 ,8G2

main52751-12240-03iAE92..SED..(DX,LE)199108-199206

SILVER,040 ,183 ,3K4 ,747

main52751-12240-03iAE92..SED..(DX,LE)199008-199108

SILVER,040 ,183 ,3H4

9010906127

main90109-06127

9011906340

main90119-06340

9011906341

main90119-06341

9011910505

main90119-10505

9011914013

main90119-14013

9015960304

main90159-60304

9017906070

main90179-06070

9017908025

main90179-08025

9018906013

main90189-06013

9018906089

main90189-06089

9043009003

main90430-09003

9046709029

main90467-09029

9046804079

main90468-04079

9356755014

main93567-55014

26 parts on this diagram · 3 diagrams in section
