FRONT SPRING & SHOCK ABSORBER

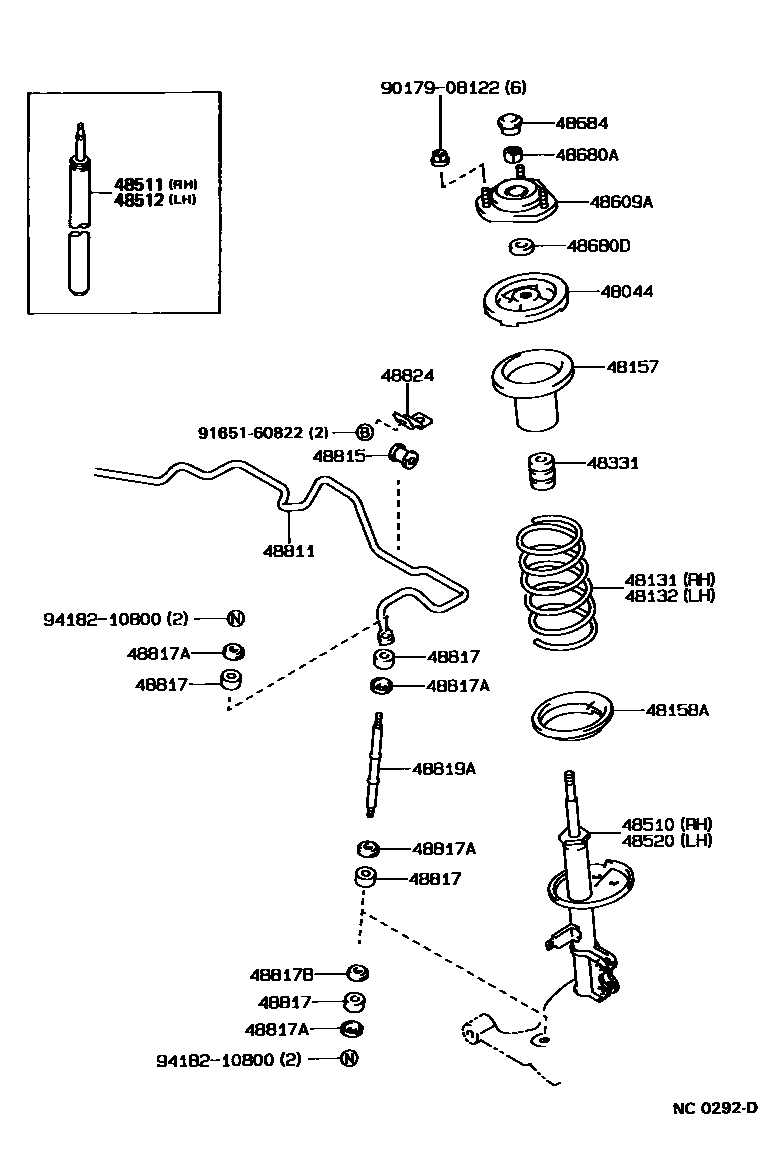

Parts diagram
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
main48044-12090×2i198708-199206
48131SPRING, FRONT COIL, RH
main48131-1E720i198708-198709
W(AIR CONDITIONER)
main48131-1E740i198709-198908
W(AIR CONDITIONER)
main48131-1E760i198709-198908
W(AIR CONDITIONER)
main48131-1E780i198709-198908
W(AIR CONDITIONER)
main48131-1H260i198908-199008
main48131-1H370i198708-198709
main48131-1H550i198908-199008
W(AIR CONDITIONER)
main48131-1H650i198908-199008
W(AIR CONDITIONER)
main48131-1H670i198802-198908
main48131-1H690i198802-198908
W(AIR CONDITIONER)
main48131-1H710i198802-198908
W(AIR CONDITIONER)
main48131-1K040i198908-199009
main48131-1K060i198908-199009
W(AIR CONDITIONER)
main48131-1K080i198908-199009
W(AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
main48131-1E720i198708-198709
main48131-1E740i198708-198709
W(AIR CONDITIONER)
main48131-1E760i198908-199206
W(AIR CONDITIONER)
main48131-1E780i198908-199206
W(AIR CONDITIONER)
main48131-1E800i198908-199206
W(AIR CONDITIONER)
main48131-1H550i198908-199008
main48131-1H650i198908-199008
W(AIR CONDITIONER)
main48131-1H670i198908-199008
W(AIR CONDITIONER)
main48131-1H690i198802-198908
main48131-1H710i198802-198908
W(AIR CONDITIONER)
main48131-1H730i198802-198908
W(AIR CONDITIONER)
main48131-1K060i198908-199009
main48131-1K080i198908-199009
W(AIR CONDITIONER)
main48131-1K100i198908-199009
W(AIR CONDITIONER)
48157INSULATOR, FRONT COIL SPRING, UPPER
main48157-12060×2i198708-199206
48158AINSULATOR, FRONT COIL SPRING, LOWER
main48158-12030×2i198708-199206
48331BUMPER, FRONT SPRING, NO.1
main48331-12100×2i198708-198808
main48331-12120×2i199108-199206
main48331-12130×2i198802-199108
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-12520i198708-199206
sub48510-1A260
main48510-12650i198802-198908
sub48510-12652
main48510-12651i198908-199009
main48510-12660i198808-198908
main48510-12661i198908-199008
sub48510-12600
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
main48511-12310i198708-199206
*90
sub48511-12320
main48511-12360i198802-198908
*90
main48511-12370i198808-198908
*90
main48511-12420i198908-199009
*90
main48511-12430i198908-199008
*90
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
main48511-12310i198708-199206
*90
sub48511-12320
main48511-12360i198802-198908
*90
main48511-12370i198808-198908
*90
main48511-12420i198908-199009
*90
main48511-12430i198908-199008
*90
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-12390i198708-199206
sub48520-1A130
main48520-12520i198802-198908
sub48520-12522
main48520-12521i198908-199009
main48520-12530i198808-198908
main48520-12531i198908-199008
sub48520-12470
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
main48609-12190×2i198708-198808
main48609-12191×2i198808-198905
main48609-12192×4i198905-198908
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94182-11400×2i198708-199206
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
main90303-22049×2i198708-199206
48684COVER, BEARING DUST
main48684-32010×2i198708-199206
48811BAR, STABILIZER, FRONT
main48811-12580i198802-198908
main48811-12670i198908-199008
main48811-12690i198908-199009
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-12140×2i198802-198908
main48815-12180×2i198908-199009
48817CUSHION, FRONT STABILIZER
main48817-30020×8i198802-199009
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02032×8i198802-199009
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-02015×2i198802-199009
48819ABOLT, FRONT STABILIZER
main48819-20030×2i198802-199009
48824BRACKET, STABILIZER, FRONT
main48824-12090×2i198802-199009
9017908122
main90179-08122
9165160822
main91651-60822
9418210800
main94182-10800

24 parts on this diagram · 1 diagram in section
