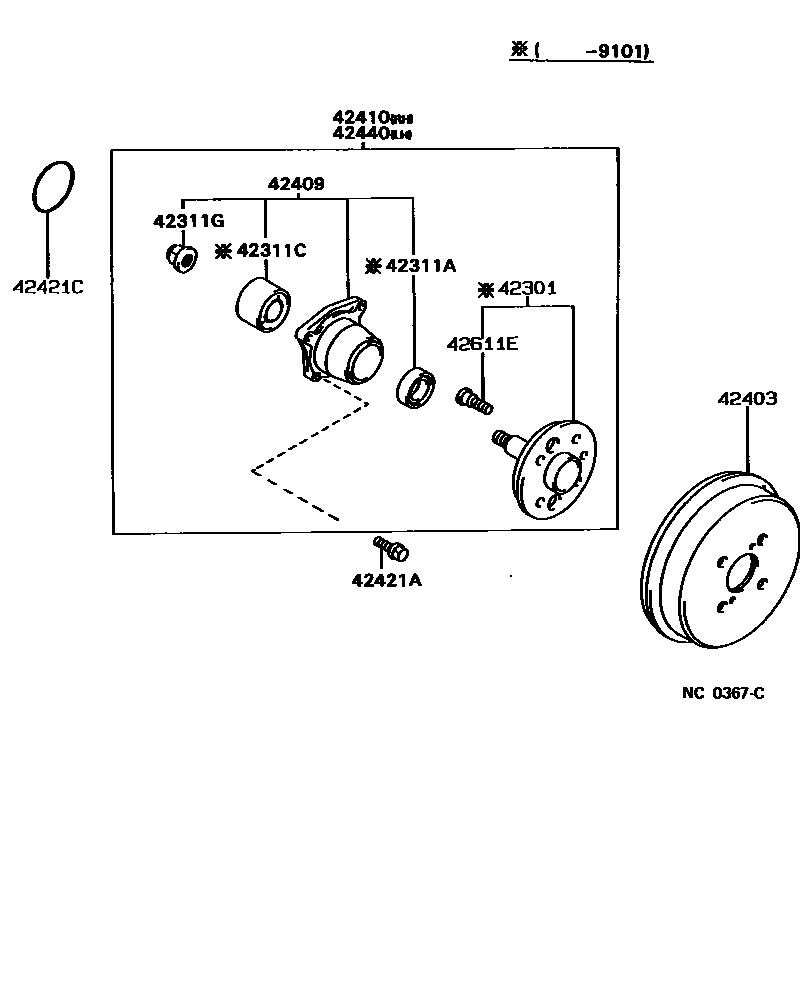

REAR AXLE SHAFT & HUB

0001 1 0002 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-12150×2iAE92198708-199101

42311SHAFT, REAR AXLE

main42311-12200×2iAE95198802-199006

main42311-12201×2iAE95199006-199009

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-41003×2iAE92198708-199101

main90311-42055×2iAE95198802-199009

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-28006×2iAE92198708-199101

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003iAE92198908-199101

main90179-20017iAE92..WG199011-199101

42403DRUM SUB-ASSY, REAR BRAKE

main42431-16031×2iAE95198802-199008

main42431-16040×2iAE95199008-199009

sub42431-16060

main42431-20080×2iAE92198708-199206

42409BEARING SUB-ASSY, REAR AXLE

main42409-19015iAE92199101-199206

main42421-19015×2iAE92..CBR198708-199101

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-12050iAE92198708-199101

main42410-12130iAE92199101-199206

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124×8iAE92198708-199001

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-61002×2iAE92198708-199001

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-12050iAE92198708-199101

main42410-12130iAE92199101-199206

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iAE9#198708-199206

12 parts on this diagram · 2 diagrams in section
