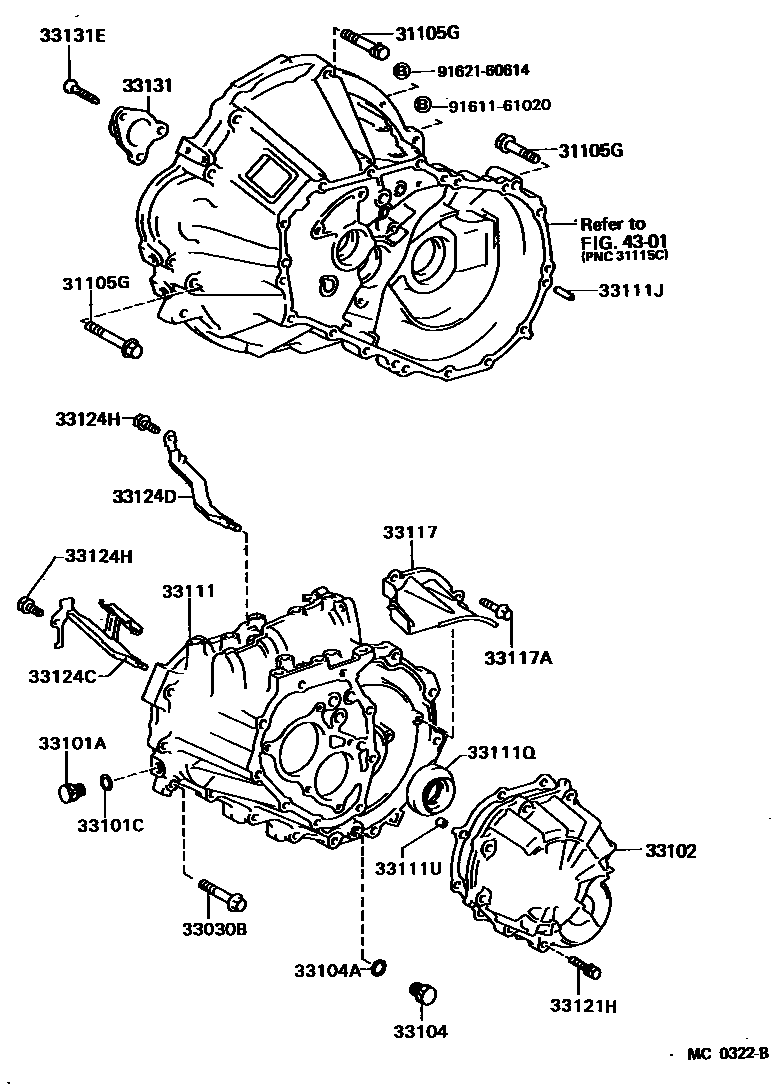

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50 0002 1E55F5,E57F5

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iAE9#..5F198708-199206

*10-1.25PX43-26

main90119-12042iAE92..5F198708-199206

*12-1.25PX75-30

main90119-12128iAE95..5F198802-199009

*12-1.25PX96-30

main90119-12168iAE9#..5F198708-199206

*12-1.25PX55-30

main91611-61025iAE92..5F198708-199206

*10-1.25PX25-25

sub91612-61025

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iAE92..5F198708-199206

*8-1.25PX51-28

sub90105-08353

main90105-08086iAE92..5F198904-199206

*8-1.25PX45-27.5

main90105-08126iAE95..5F198802-199008

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE92..5F198708-199206

main90341-18033iAE95..5F198802-199008

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE9#..5F198708-199206

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAE92..5F198708-199105

sub33102-12021

main33102-12021iAE92..5F199105-199206

main33102-12030iAE95..5F198802-199008

sub33102-12040

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE9#..5F198708-199206

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE9#..5F198708-199206

33111CASE, MANUAL TRANSMISSION

main33101-12150iAE95..5F198802-198907

sub33101-12151

sub90560-10019

sub91511-61016

main33101-12151iAE95..5F198907-199008

sub33101-12160

sub33261-12070

sub90364-15003

main33111-16040iAE92..5F198708-199206

sub33111-16070

sub90109-12073

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAE9#..5F198708-199206

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE92..5F198708-199108

sub90311-34017

main90311-34017iAE92..5F199202-199206

sub90311-34028

main90311-34018iAE92..5F199108-199202

sub90311-34017

main90311-44003iAE95..5F198802-199008

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE92..5F198708-199206

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE92..5F198708-199011

sub33117-16010

main33117-16010iAE92..5F199011-199206

main33117-20020iAE95..5F198802-199009

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE9#..5F198708-199206

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630iAE95..5F198802-199008

main91611-60835iAE92..5F198708-199206

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE92..5F198708-199206

main33124-12030iAE95..5F198802-199008

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE92..5F198708-199206

main33124-12040iAE95..5F198802-199008

sub33124-12041

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE95..5F198802-199008

sub90119-08830

main91611-60820iAE92..5F198708-199206

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE92..5F198708-199206

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE92..5F198708-199206

4301

9161161020

main91611-61020

9162160614

main91621-60614

22 parts on this diagram · 2 diagrams in section
