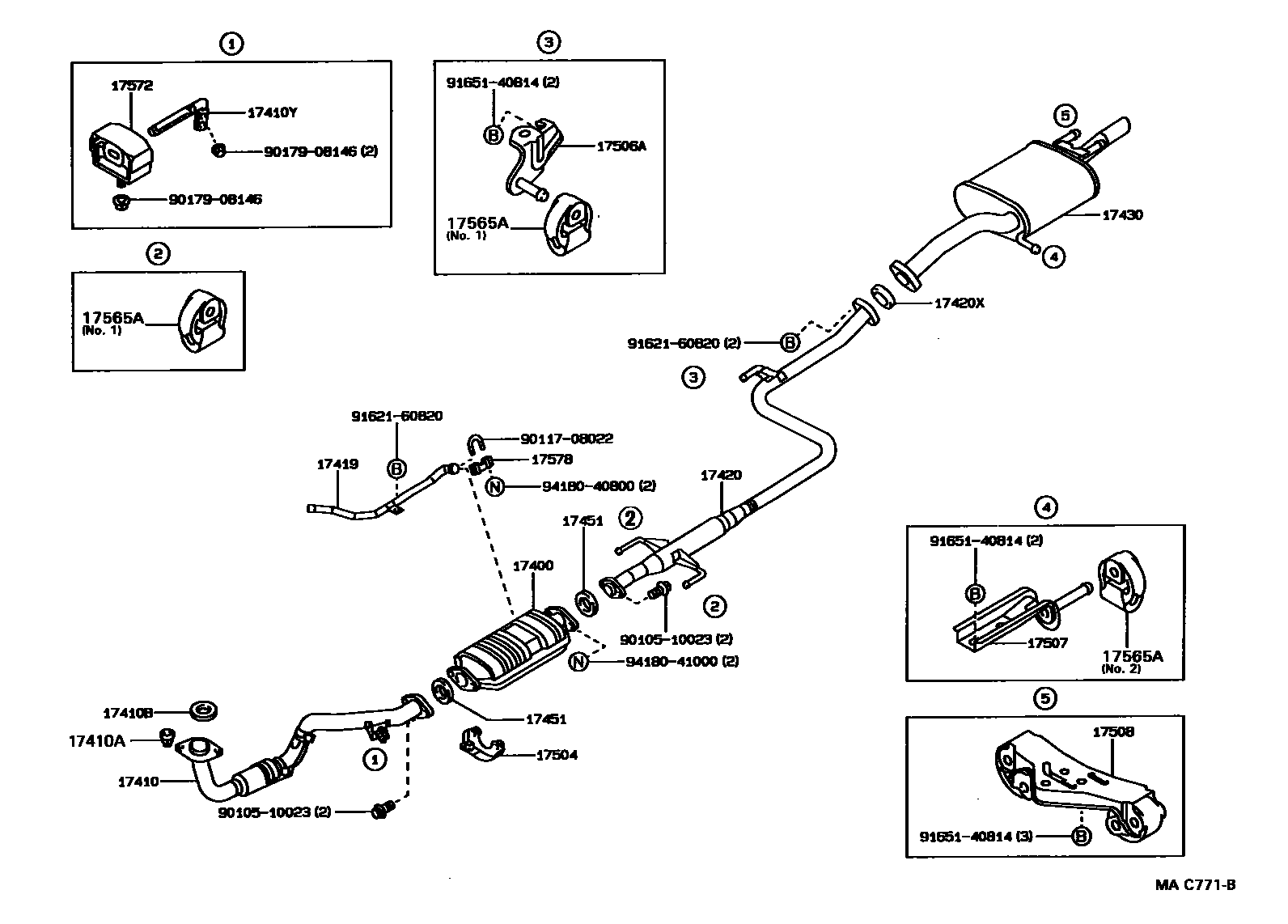

EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17419PIPE, CONVERTER AIR INLET
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.2
NO.1
NO.2
NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17578CLAMP, PIPE
9010510023
main90105-10023
9011708022
main90117-08022
9017908146
main90179-08146
9162160820
main91621-60820
9165140814
main91651-40814
9418040800
main94180-40800
9418041000
main94180-41000
24 parts on this diagram · 3 diagrams in section
