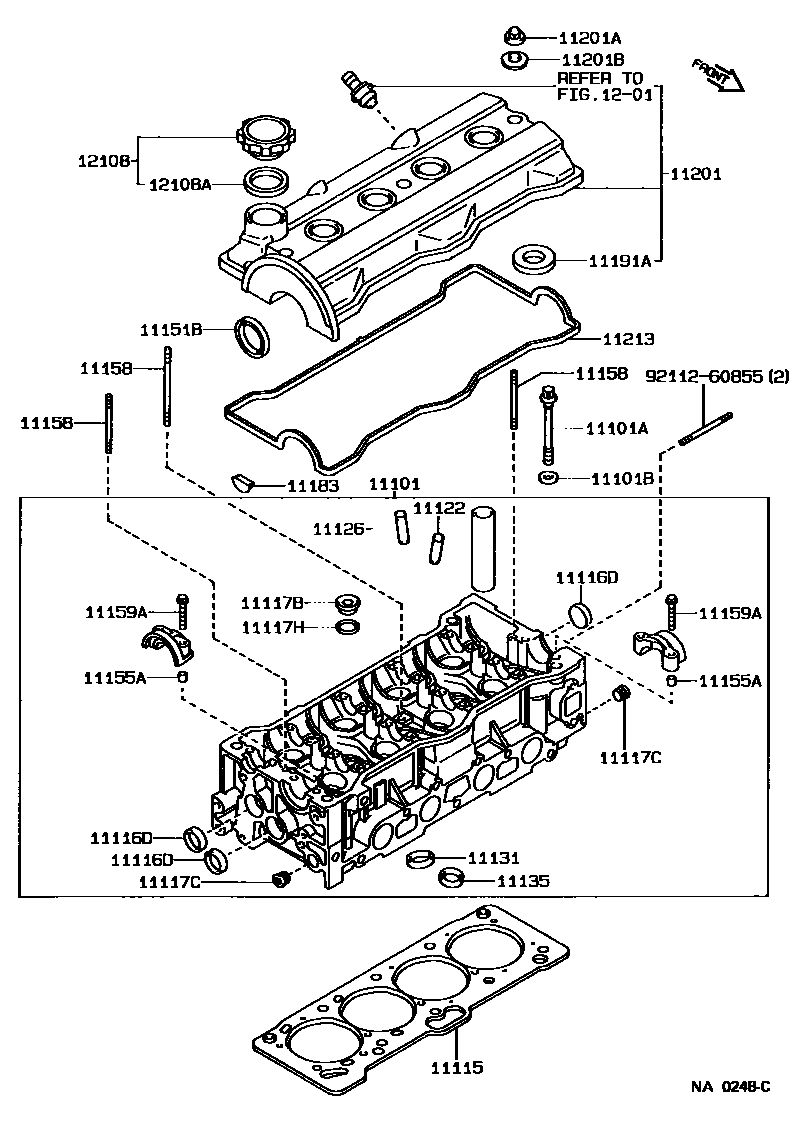

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
CALIFORNIA SPEC
CALIFORNIA SPEC
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11116DPLUG, TIGHT, NO.4
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
CALIFORNIA SPEC
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=108,L=108
L=80,L=80
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11191AGASKET(FOR SPARK PLUG TUBE)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
9211260855
main92112-60855
26 parts on this diagram · 1 diagram in section
