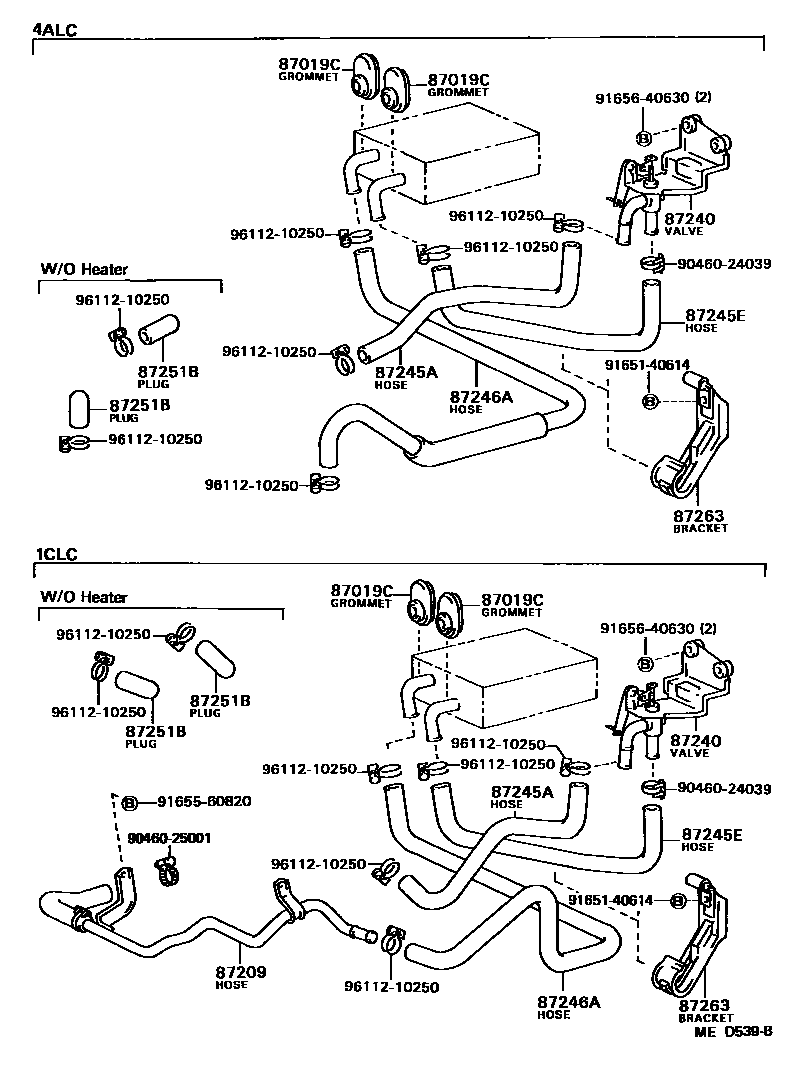

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015×2iAE82,CE80198308-198707

87209HOSE SUB-ASSY, WATER

main87209-12420iCE80198308-198508

87240VALVE ASSY, HEATER WATER

main87240-12200iAE82,CE80198308-198601

main87240-12201iAE82198601-198707

87245AHOSE, HEATER WATER, INLET A

main87245-12730iAE82198308-198707

main87245-12750iCE80198308-198707

87245EHOSE, HEATER WATER, INLET E

main87245-12680iAE82,CE80198308-198707

87246AHOSE, HEATER WATER, OUTLET A

main87245-12740iAE82198308-198707

main87245-12760iCE80198308-198707

87251BPLUG, HEATER WATER

main90339-16007×2iAE82,CE80..USA198308-198707

sub90339-16001

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-12220iAE82,CE80198308-198707

9046024039

main90460-24039

9046025001

main90460-25001

9165140614

main91651-40614

9165560820

main91655-60820

9165640630

main91656-40630

9611210250

main96112-10250

14 parts on this diagram · 1 diagram in section
