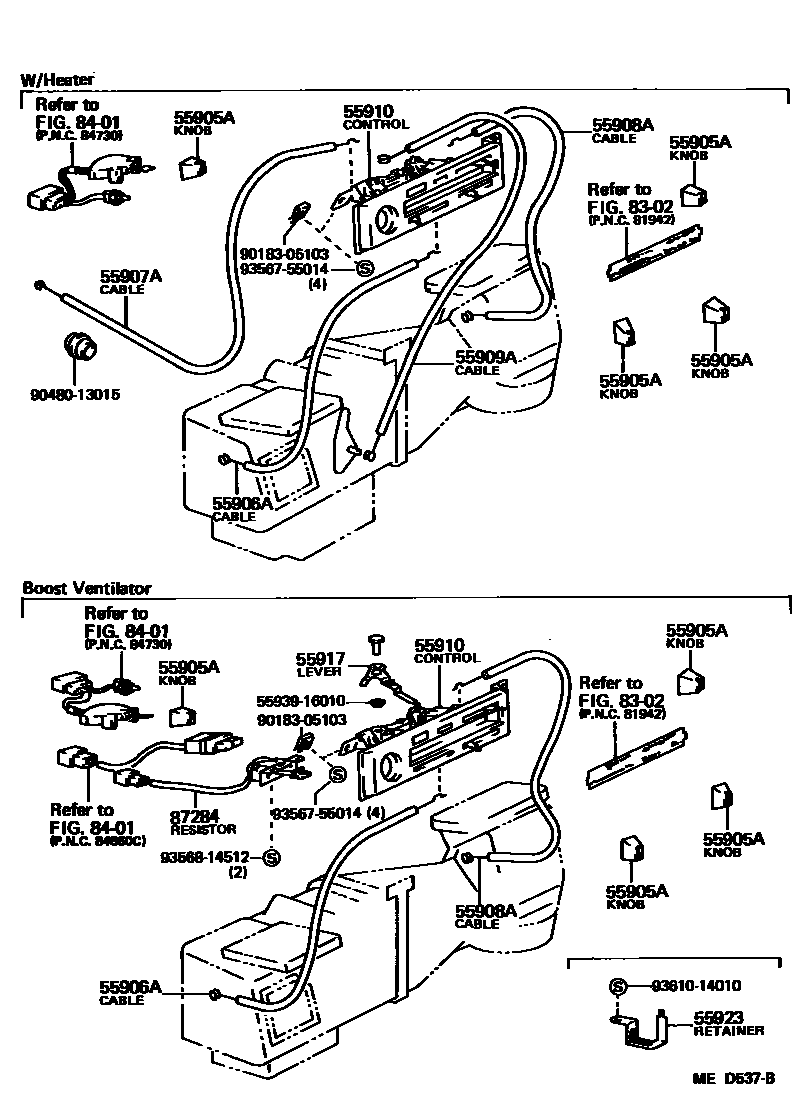

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-12060iAE82,CE80198308-198707

sub55905-12070

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12190iAE82,CE80198308-198707

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12250iAE82,CE80198308-198707

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12170iAE82,CE80198308-198707

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12150iAE82,CE80198308-198707

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12360iAE82,CE80198308-198707

main55910-12400iAE82,CE80..USA198308-198707

W/O HEATER

55917PLATE, AIR INLET DOOR CONTROL

main55917-12070iAE82,CE80..(DX,LE,LEL)..USA198308-198707

W/*BV & COOLER

55923RETAINER, HEATER CONTROL, UPPER

main55923-12060iAE82,CE80..(DX,LE,LEL)..USA198308-198707

W/*BV & COOLER

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12070iAE82,CE80..(DX,LE,LEL)..USA198308-198707

W/*BV & COOLER

5593916010ORNAMENT, HEATER CONTROL

main55939-16010

9018305103

main90183-05103

9048013015

main90480-13015

9356755014

main93567-55014

9356814512

main93568-14512

9361014010

main93610-14010

17 parts on this diagram · 2 diagrams in section
