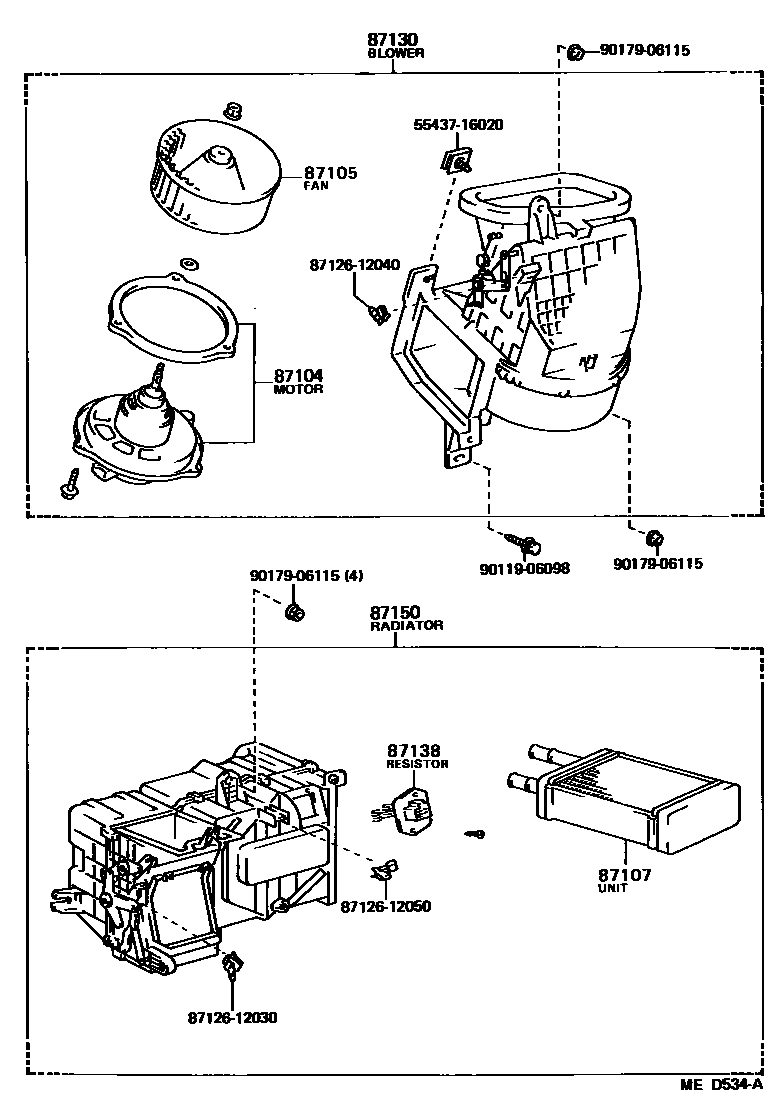

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-12150iAE82,CE80198308-198508

main87104-12170iCE80198308-198508

W/HEAVY HEATER

main87104-12210iAE82198508-198707

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iAE82,CE80198308-198707

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12320iAE82..USA198308-198707

main87107-12340iAE82..CND198308-198707

W/HEAVY HEATER

87130BLOWER ASSY, HEATER, FRONT

main87130-12130iAE82,CE80198308-198508

main87130-12150iCE80198308-198508

W/HEAVY HEATER

main87130-12240iAE82198508-198707

87138RESISTOR, HEATER BLOWER

main87138-12110iAE82198508-198707

main87138-16100iAE82,CE80198308-198508

87150RADIATOR ASSY, HEATER

main87150-12200iAE82..USA198308-198508

main87150-12201iAE82..USA198508-198707

main87150-12220iAE82..CND198308-198508

W/HEAVY HEATER

main87150-12221iAE82..CND198508-198707

W/HEAVY HEATER

main87150-12270iCE80198308-198508

5543716020PROTECTOR, INSTRUMENT PANEL EDGE

main55437-16020

8712612030CLAMP, HEATER CONTROL

main87126-12030

8712612040CLAMP, HEATER CONTROL

main87126-12040

8712612050CLAMP, HEATER CONTROL

main87126-12050

9011906098

main90119-06098

9017906115

main90179-06115

12 parts on this diagram · 2 diagrams in section
