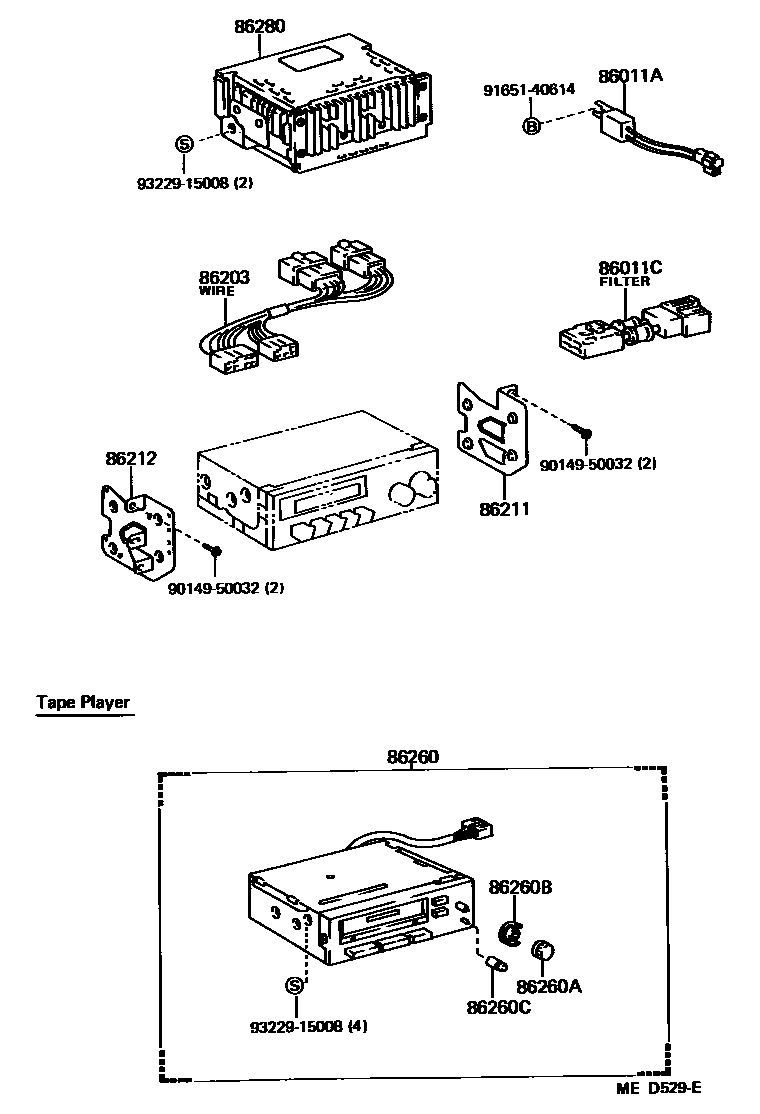

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04041iAE82198308-198410

main90980-04055iAE82198410-198707

86011CFILTER, NOISE

main90980-05049iAE82..CND198608-198707

W/RADIO:*17,B TYPE

86203WIRE, RADIO

main86203-16060iAE82..(DX,LE)..USA198608-198707

W/RADIO:*17,B TYPE

86211BRACKET, RADIO, NO.1

main86211-12140iAE82,CE80198308-198707

86212BRACKET, RADIO, NO.2

main86212-12120iAE82,CE80198308-198707

86260TAPE PLAYER ASSY

main86260-16140iAE82..CND198608-198707

W/RADIO:*19

main86260-19045iAE82,CE80198308-198608

sub86260-14270

main86260-29155iAE82198608-198707

W/RADIO:*17

86260AKNOB, TAPE PLAYER VOLUME

main86128-14300iAE82,CE80198308-198608

86260BKNOB, TAPE PLAYER TONE

main86128-14400iAE82,CE80198308-198608

86260CKNOB, TAPE PLAYER BALANCE

main86128-14380iAE82,CE80198308-198608

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-12030iAE82..LEL198408-198503

9014950032

main90149-50032

9165140614

main91651-40614

9322915008

main93229-15008

13 parts on this diagram · 3 diagrams in section
