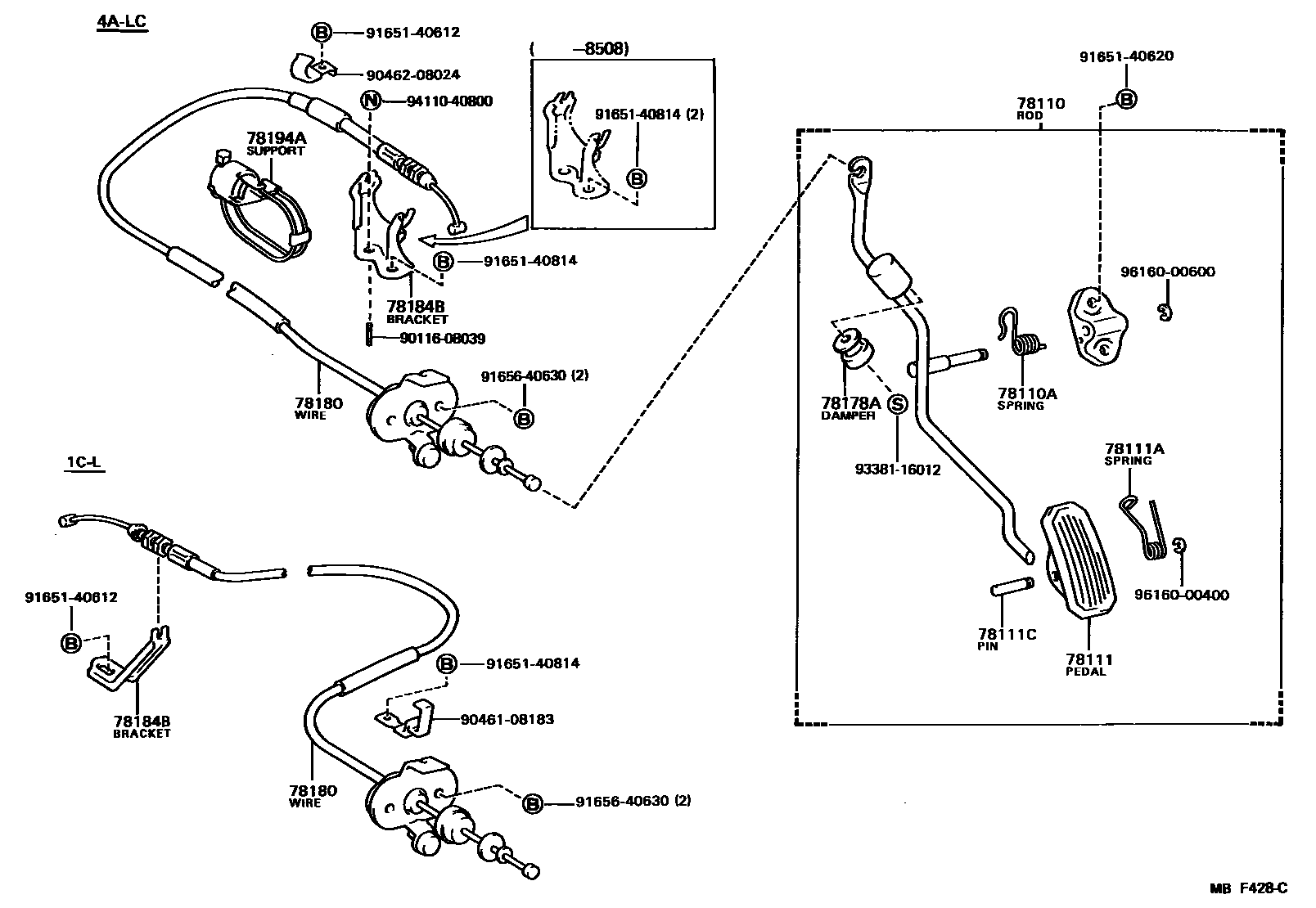

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-12030iCE80..MTM198308-198508

main78120-12040iCE80..3FC198308-198508

main78120-12050iAE82..5F..LE198308-198707

W/AUTO DRIVE

main78120-12050iAE82..ATM198308-198707

main78120-12060iAE82..5F198308-198707

W/O AUTO DRIVE

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE82..5F198308-198707

W/AUTO DRIVE

main90508-18025iAE82,CE80..ATM198308-198707

main90508-26036iAE82,CE80..MTM198308-198707

W/O AUTO DRIVE

78111PEDAL, ACCELERATOR

main78111-32010iAE82,CE80198308-198707

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE82,CE80198308-198707

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE82,CE80198308-198707

78178ADAMPER, ACCELRATOR PEDAL ROD DYNAMIC

main78178-12030iAE82198308-198707

78180WIRE ASSY, ACCELERATOR

main78180-12500iCE80198308-198508

main78180-12550iAE82..LE,LEL198308-198707

W/AUTO DRIVE

main78180-12650iAE82198308-198405

W/O AUTO DRIVE

sub78180-12651

main78180-12651iAE82198405-198707

W/O AUTO DRIVE

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12160iAE82198308-198707

main78184-12170iCE80198308-198508

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-12040iAE82198308-198405

sub78194-12041

main78194-12041iAE82198405-198707

9011608039

main90116-08039

9046108183

main90461-08183

9046208024

main90462-08024

9165140612

main91651-40612

9165140620

main91651-40620

9165140814

main91651-40814

9165640630

main91656-40630

9338116012

main93381-16012

9411040800

main94110-40800

9616000400

main96160-00400

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
