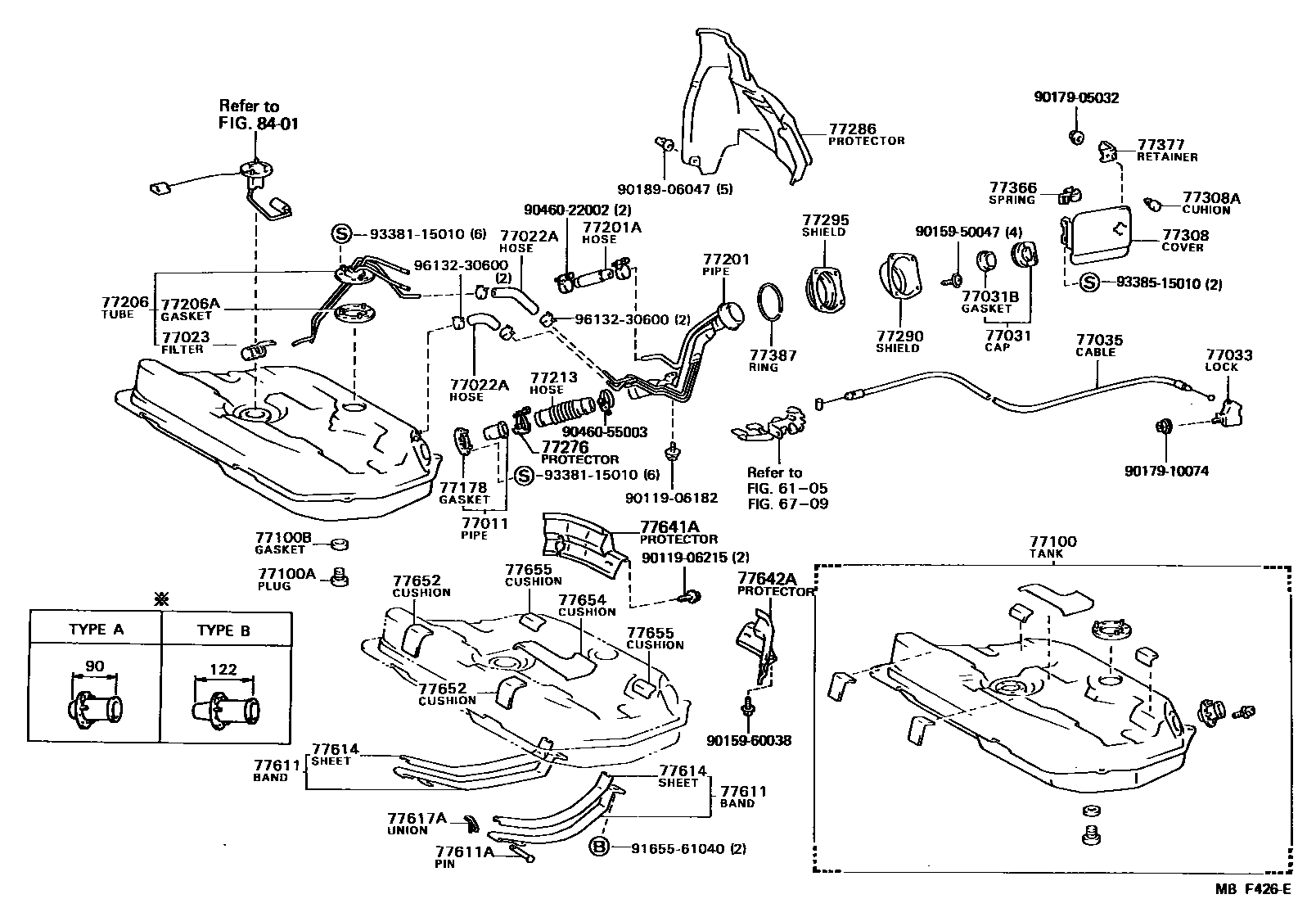

FUEL TANK & TUBE

0001 1 0002 1 0003 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12050iAE82198702-198707

TYPE B

sub77011-16050

main77011-16030iAE82,CE80198308-198702

sub77011-16040

main77011-16040iAE82198702-198707

TYPE A

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-16040iAE82198605-198707

L=135

sub95333-06020

main95332-06020iAE82,CE80198311-198605

L=200(*H,L=140)

sub95333-06020

main95332-06020iAE82,CE80198308-198311

L=200(*H,L=130)

sub95333-06020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE82198308-198707

main77023-22040iCE80198308-198508

77031CAP ASSY, FUEL TANK

main77310-16010iAE82198308-198707

sub77310-16011

main77310-32010iCE80198308-198508

sub77310-32011

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iAE82,CE80198308-198707

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAE82..LE,LEL198503-198707

sub77037-38010

main77037-32010iAE82..LE,LEL198308-198503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12060iAE82..LE,LEL198308-198707

sub77035-14090

77100TANK ASSY, FUEL

main77001-19315iCE80198308-198508

main77001-19405iAE82198308-198707

sub77001-19315

sub77017-16021

77100APLUG(FOR FUEL TANK)

main90341-20004iAE82,CE80198308-198707

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE82,CE80198308-198707

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAE82,CE80198308-198707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77210-12020iAE82198308-198601

sub77210-12100

main77210-12030iCE80198308-198508

main77210-12100iAE82198601-198707

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-16010iAE82,CE80198308-198707

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12201iCE80198308-198508

main77017-16030iAE82198308-198702

sub77017-16100

main77017-16100iAE82198702-198707

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77178-10010iAE82,CE80198308-198707

77213HOSE, FUEL TANK SUB INLET

main77213-16031iAE82,CE80198308-198707

77276PROTECTOR, FUEL HOSE

main77606-12110iAE82,CE80198308-198707

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-12050iAE82,CE80198308-198707

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12020iAE82,CE80198308-198707

77295SHIELD, FUEL FILLER PIPE

main77293-16010iAE82,CE80198308-198707

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12060iAE82,CE80..DX,STD198308-198508

main77350-12070iAE82..LE,LEL198308-198707

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08010iAE82,CE80198308-198707

sub90541-08014

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAE82,CE80198308-198707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12030iAE82..LE,LEL198408-198707

main77377-24010iAE82..LE198308-198408

77387RING, FUEL INLET BOX

main77391-14020iAE82,CE80198308-198707

77611BAND, FUEL TANK

main77601-12080iAE82,CE80198308-198707

RH

main77602-16030iAE82,CE80198308-198707

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE82,CE80198308-198707

77614SEAT, FUEL TANK BAND

main77681-16020iAE82,CE80198308-198707

sub77681-32040

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE82,CE80198308-198707

77641APROTECTOR, FUEL TANK, NO.1

main77641-16011iAE82,CE80198308-198707

77642APROTECTOR, FUEL TANK, NO.2

main77642-16010iAE82,CE80198308-198707

77652CUSHION, FUEL TANK, NO.1

main77652-16050iAE82,CE80198308-198707

sub77652-16060

77654CUSHION, FUEL TANK, NO.2

main77653-16020iAE82,CE80198308-198707

77655CUSHION, FUEL TANK, NO.3

main77654-16010iAE82,CE80198308-198707

8401

9011906182

main90119-06182

9011906215

main90119-06215

9015950047

main90159-50047

9015960038

main90159-60038

9017905032

main90179-05032

9017910074

main90179-10074

9018906047

main90189-06047

9046022002

main90460-22002

9046055003

main90460-55003

9165561040

main91655-61040

9338115010

main93381-15010

9338515010

main93385-15010

9613230600

main96132-30600

50 parts on this diagram · 3 diagrams in section
