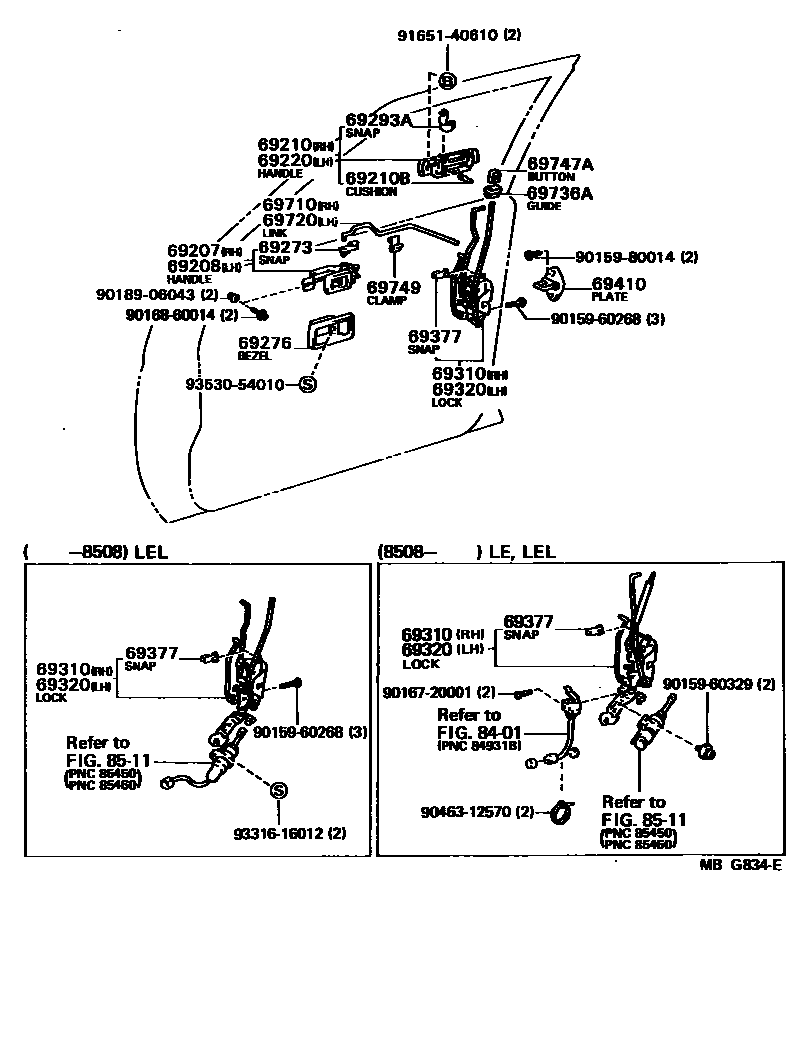

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273SNAP, DOOR INSIDE HANDLE ROD
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
RH
LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
LH
RH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
69749CLAMP, FRONT DOOR LOCK LINK
8401
8511
9015960268
main90159-60268
9015960329
main90159-60329
9015980014
main90159-80014
9016720001
main90167-20001
9016860014
main90168-60014
9018906043
main90189-06043
9046312570
main90463-12570
9165140610
main91651-40610
9331616012
main93316-16012
9353054010
main93530-54010
29 parts on this diagram · 1 diagram in section
