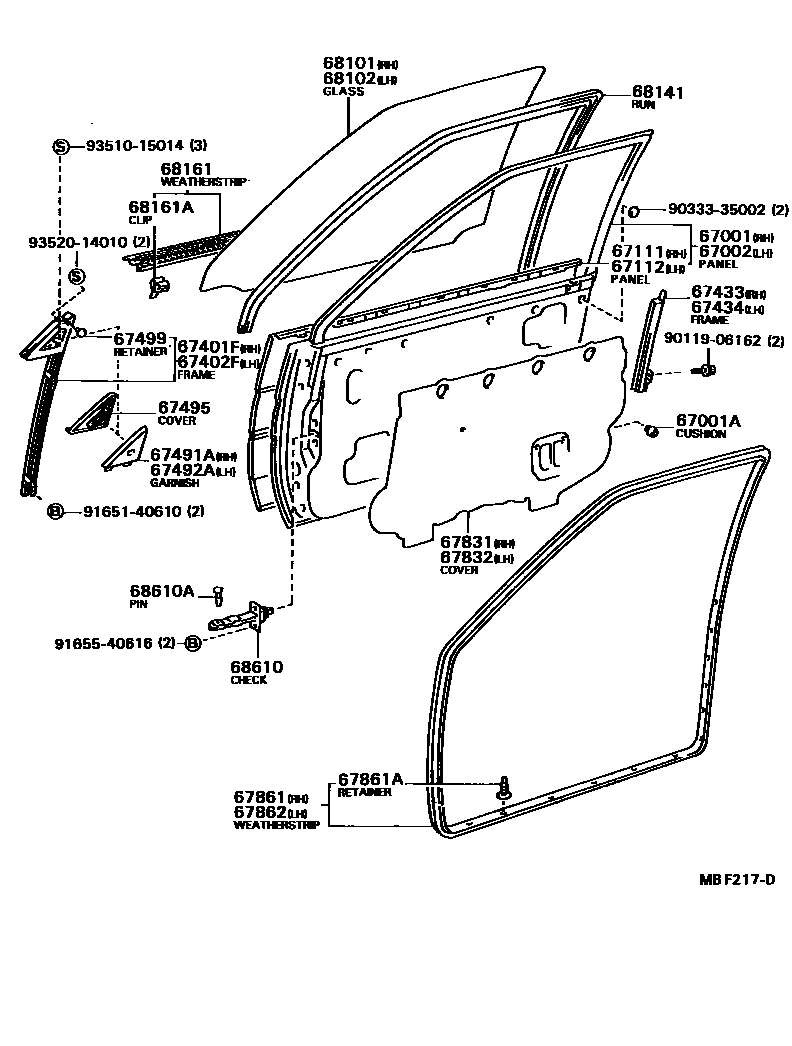

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12780iAE82..SED198608-198707

main67001-12780iAE82,CE80..SED..(DX,LE,STD)198308-198608

W/O ELECTRIC *RCM,*PW

main67001-12790iAE82..SED..(LE,LEL)198508-198608

W/ELECTRIC *RCM OR *PW

sub67001-12780

main67001-12790iAE82..SED..(LE,LEL)..USA198308-198508

W/ELECTRIC *RCM

sub67001-12780

main67001-12830iAE82..LB198608-198707

main67001-12830iAE82,CE80..LB198308-198608

W/O ELECTRIC *RCM,*PW

main67001-12840iAE82..LB..LE..USA198308-198508

W/ELECTRIC *RCM

sub67001-12830

main67001-12840iAE82..LB..LE198508-198608

W/ELECTRIC *RCM OR *PW

sub67001-12830

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iAE82,CE80198308-198707

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12760iAE82..SED198608-198707

main67002-12760iAE82,CE80..SED..(DX,LE,STD)198308-198608

W/O ELECTRIC *RCM,*PW

main67002-12770iAE82..SED..(LE,LEL)198508-198608

W/ELECTRIC *RCM OR *PW

sub67002-12760

main67002-12770iAE82..SED..(LE,LEL)..USA198308-198508

W/ELECTRIC *RCM

sub67002-12760

main67002-12810iAE82,CE80..LB198308-198608

W/O ELECTRIC *RCM,*PW

main67002-12810iAE82..LB198608-198707

main67002-12820iAE82..LB..LE..USA198308-198508

W/ELECTRIC *RCM

sub67002-12810

main67002-12820iAE82..LB..LE198508-198608

W/ELECTRIC *RCM OR *PW

sub67002-12810

67111PANEL, FRONT DOOR, OUTER RH

main67111-12390iAE82,CE80198308-198707

67112PANEL, FRONT DOOR, OUTER LH

main67112-12380iAE82,CE80198308-198707

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12200iAE82..SED198508-198707

W/MIRROR

main67401-12200iAE82,CE80..SED198308-198508

main67401-12210iAE82,CE80..LB198308-198508

main67401-12210iAE82..LB198508-198707

W/MIRROR

main67401-12220iAE82..SED..(DX,LE)198508-198707

W/O MIRROR

main67401-12230iAE82..LB198508-198707

W/O MIRROR

sub67401-12210

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12190iAE82,CE80..SED198308-198707

main67402-12200iAE82,CE80..LB198308-198707

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-12050iAE82,CE80198308-198404

main67403-12080iAE82,CE80198404-198707

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-12050iAE82,CE80198308-198404

main67404-12080iAE82,CE80198404-198707

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12090iAE82..SED..(LE,LEL)..USA198308-198707

W/O *RCM

main67491-12090iAE82..SED..(LE,LEL)..USA198308-198707

W/ELECTRIC *RCM

main67491-12100iAE82..SED198308-198707

W/MANUAL *RCM

main67491-12110iAE82..LB..LE..USA198308-198707

W/O *RCM

main67491-12110iAE82..LB..LE..USA198308-198707

W/ELECTRIC *RCM

main67491-12120iAE82..LB..LE198308-198707

W/MANUAL *RCM

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12090iAE82,CE80..SED..(DX,STD)198308-198707

W/O *RCM

main67492-12090iAE82,CE80..SED..(DX,STD)198308-198707

W/ELECTRIC *RCM

main67492-12100iAE82..SED198308-198707

W/MANUAL *RCM

main67492-12110iAE82..LB..LE..USA198308-198707

W/O *RCM

main67492-12110iAE82..LB..LE..USA198308-198707

W/ELECTRIC *RCM

main67492-12120iAE82..LB..LE198308-198707

W/MANUAL *RCM

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-12050iAE82..SED..LE198308-198707

main67495-12060iAE82,CE80..SED..(DX,STD)198308-198707

main67495-12070iAE82..LB..LE198308-198707

main67495-12080iAE82,CE80..LB..DX198308-198707

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iAE82,CE80198308-198707

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12280iAE82,CE80198308-198508

main67831-12280iAE82..DX,LE198508-198707

W/O *PW

main67831-12330iAE82..LE,LEL198508-198707

W/*PW

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12150iAE82,CE80198308-198707

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12490iAE82,CE80..SED198308-198707

main67861-12530iAE82,CE80..LB198308-198707

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAE82,CE80198308-198707

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12470iAE82,CE80..SED198308-198707

main67862-12510iAE82,CE80..LB198308-198707

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12500iCE80198308-198408

*TEM,T=3.5

sub68111-12510

main68111-12510iAE82,CE80..SED..(DX,LE,LEL)198308-198707

*TT,T=3.5

main68111-12570iAE82,CE80..LB198308-198707

*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12500iCE80198308-198408

*TEM,T=3.5

sub68112-12510

main68112-12510iAE82,CE80..SED..(DX,LE,LEL)198308-198707

*TT,T=3.5

main68112-12570iAE82,CE80..LB198308-198707

*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-12190iAE82,CE80..SED198308-198707

main68141-12210iAE82,CE80..LB198308-198707

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12140iAE82,CE80..DX,STD198308-198707

RH

main68210-12100iAE82,CE80..DX,STD198308-198707

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080iAE82,CE80..DX,STD198308-198707

68610CHECK ASSY, FRONT DOOR

main68610-12030iAE82,CE80198308-198707

sub68610-60040

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iAE82,CE80198311-198507

sub68617-90A00

main68617-22010iAE82,CE80198308-198311

sub68617-12010

main68617-90A00iAE82,CE80198507-198707

sub68617-90A01

9011906162

main90119-06162

9033335002

main90333-35002

9165140610

main91651-40610

9165540616

main91655-40616

9351015014

main93510-15014

9352014010

main93520-14010

31 parts on this diagram · 3 diagrams in section
