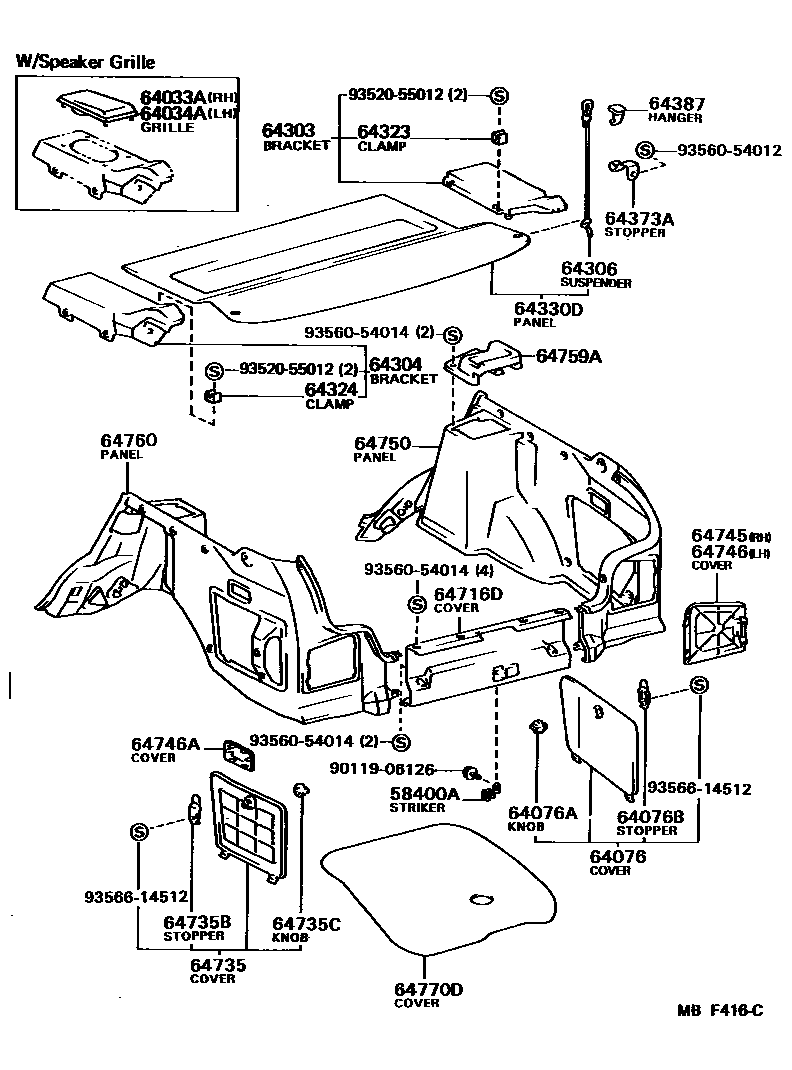

DECK BOARD & DECK TRIM COVER
58400ASTRIKER, LUGGAGE HOLD BELT
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64076COVER, DECK TRIM SIDE JACK
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64076AKNOB, DECK TRIM SIDE JACK COVER
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64076BSTOPPER, DECK TRIM SIDE JACK COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
W/O RR SPEAKER,MAROON,RED/MAROON,TRIM3#
W/O RR SPEAKER,GRAY,GRAY,TRIM1#
W/O RR SPEAKER,BLUE,BLUE,TRIM8#
W/O RR SPEAKER,BROWN,BROWN,TRIM4#
W/RR SPEAKER,MAROON,RED/MAROON,TRIM3#
W/RR SPEAKER,GRAY,GRAY,TRIM1#
W/RR SPEAKER,BLUE,BLUE,TRIM8#
W/RR SPEAKER,BROWN,BROWN,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
W/O RR SPEAKER,MAROON,RED/MAROON,TRIM3#
W/O RR SPEAKER,GRAY,GRAY,TRIM1#
W/O RR SPEAKER,BLUE,BLUE,TRIM8#
W/O RR SPEAKER,BROWN,BROWN,TRIM4#
W/RR SPEAKER,MAROON,RED/MAROON,TRIM3#
W/RR SPEAKER,GRAY,GRAY,TRIM1#
W/RR SPEAKER,BLUE,BLUE,TRIM8#
W/RR SPEAKER,BROWN,BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64330DPANEL ASSY, PACKAGE TRAY TRIM
W/O RR WIPER,GRAY,GRAY,TRIM1#
W/O RR WIPER,BLUE,BLUE,TRIM8#
W/O RR WIPER,BROWN,BROWN,TRIM4#
W/O RR WIPER,GRAY,GRAY,TRIM1#
W/O RR WIPER,BLUE,BLUE,TRIM8#
W/O RR WIPER,BROWN,BROWN,TRIM4#
64373ASTOPPER, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64716DCOVER, DECK TRIM, REAR
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64735COVER, DECK TRIM SIDE SERVICE HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64746ACOVER, DECK TRIM SIDE LAMP HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64750PANEL ASSY, DECK SIDE TRIM, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64759ACOVER, SHOCK ABSORBER HEAD
W/O PACKAGE TRAYTRIM,RH,MAROON,RED/MAROON,TRIM3#
W/O PACKAGE TRAY TRIM,RH,GRAY,GRAY,TRIM1#
W/O PACKAGE TRAY TRIM,RH,BLUE,BLUE,TRIM8#
W/PACKAGE TRAY TRIM,RH,MAROON,RED/MAROON,TRIM3#
W/PACKAGE TRAY TRIM,RH,GRAY,GRAY,TRIM1#
W/PACKAGE TRAY TRIM,RH,BLUE,BLUE,TRIM8#
RH,BROWN,BROWN,TRIM4#
W/O PACKAGE TRAYTRIM,LH,MAROON,RED/MAROON,TRIM3#
W/O PACKAGE TRAY TRIM,LH,GRAY,GRAY,TRIM1#
W/O PACKAGE TRAY TRIM,LH,BLUE,BLUE,TRIM8#
W/PACKAGE TRAY TRIM,LH,MAROON,RED/MAROON,TRIM3#
W/PACKAGE TRAY TRIM,LH,GRAY,GRAY,TRIM1#
W/PACKAGE TRAY TRIM,LH,BLUE,BLUE,TRIM8#
LH,BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
9011906126
main90119-06126
9352055012
main93520-55012
9356054012
main93560-54012
9356054014
main93560-54014
9356614512
main93566-14512
30 parts on this diagram · 2 diagrams in section
