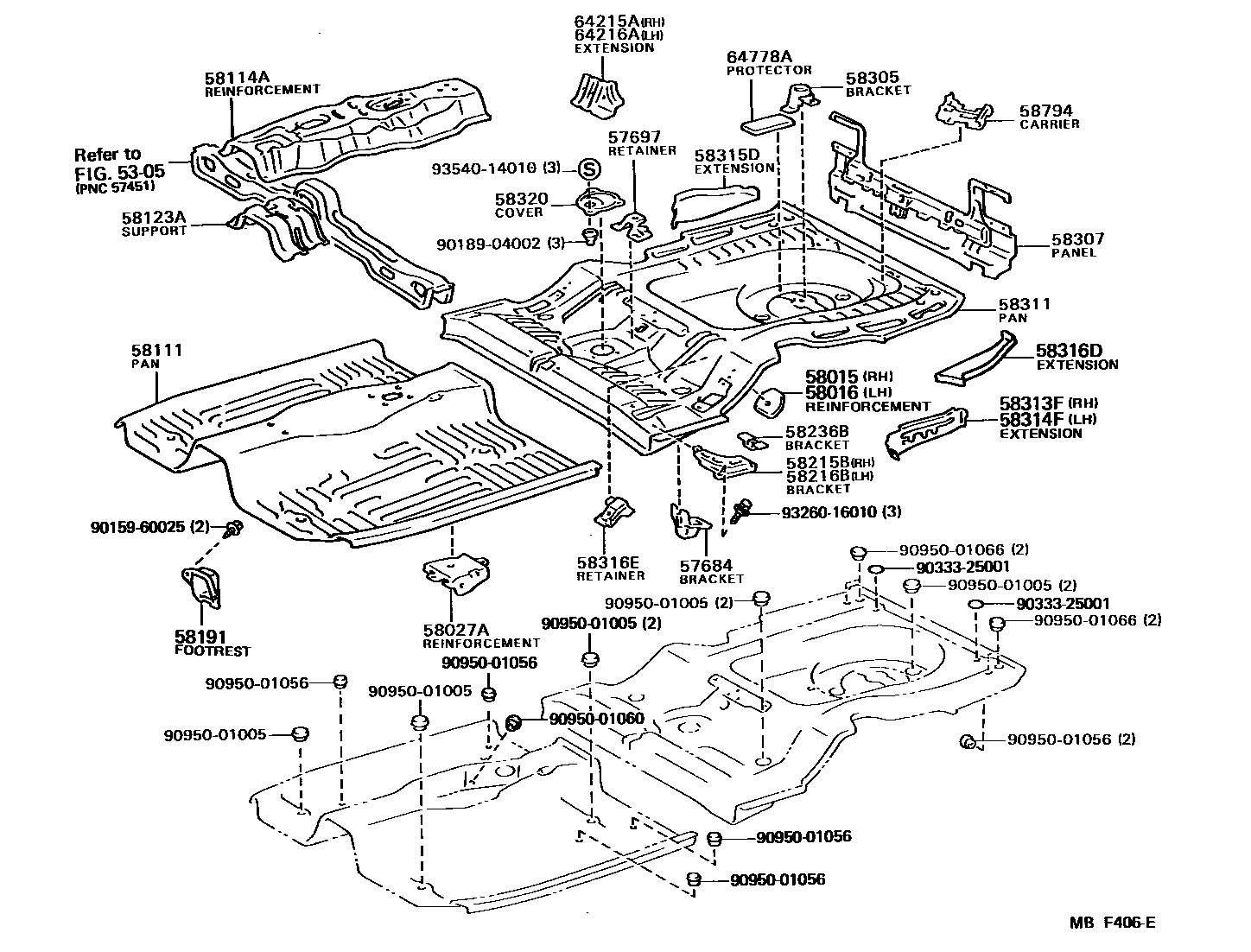

FLOOR PAN & LOWER BACK PANEL
5305
57684BRACKET, FUEL TANK, REAR
RH
LH
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58191FOOTREST, FRONT FLOOR
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58316ERETAINER, REAR SEAT SET
58320COVER, REAR FLOOR SERVICE HOLE
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64778APROTECTOR, SPARE WHEEL
9015960025
main90159-60025
9018904002
main90189-04002
9033325001
main90333-25001
9095001005
main90950-01005
9095001056
main90950-01056
9095001060
main90950-01060
9095001066
main90950-01066
9326016010
main93260-16010
9354014010
main93540-14010
35 parts on this diagram · 2 diagrams in section
