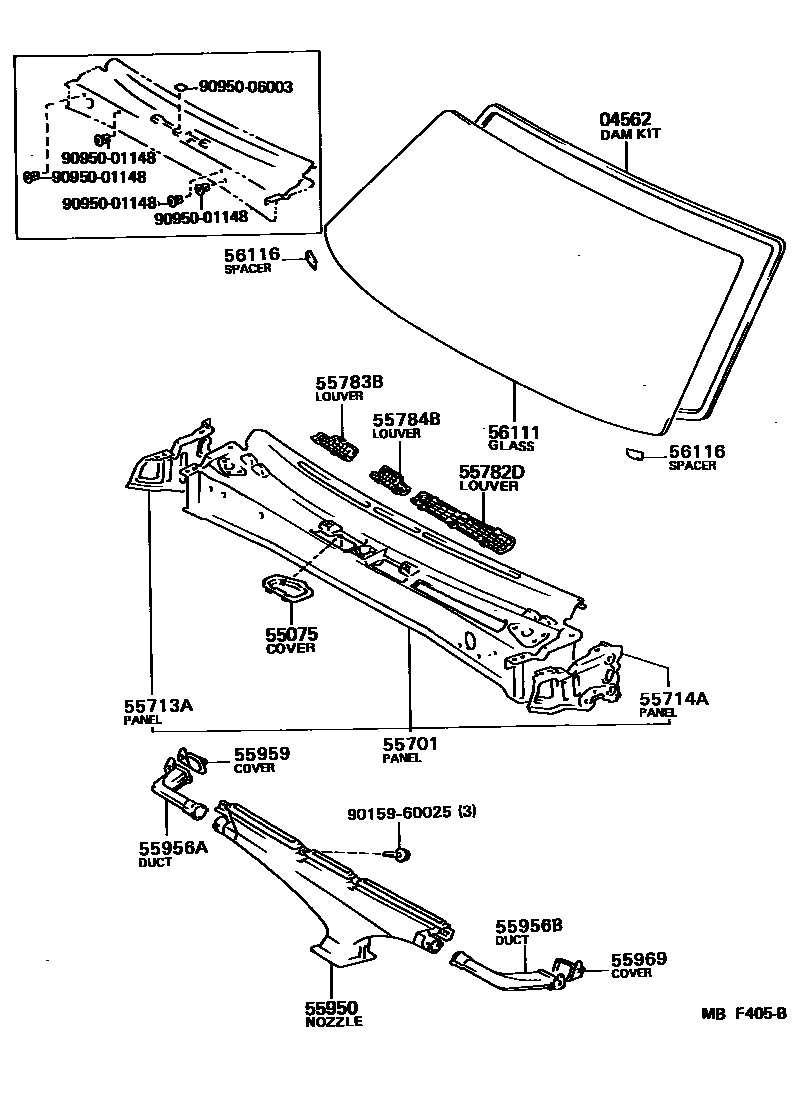

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iAE82,CE80198308-198707

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12070iAE82,CE80..USA198308-198508

55701PANEL SUB-ASSY, COWL

main55700-12290iAE82198308-198707

main55700-12300iCE80198308-198508

55713APANEL, COWL TOP SIDE, RH

main55713-12060iAE82,CE80198308-198707

55714APANEL, COWL TOP SIDE, LH

main55714-12060iAE82,CE80198308-198707

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-12020iAE82..USA198604-198610

main55782-12050iAE82..CND198604-198610

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-12160iAE82,CE80198308-198604

main55783-12190iAE82198610-198707

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12030iAE82,CE80198308-198604

main55784-12060iAE82..CND198604-198610

COLD SPEC

55950NOZZLE ASSY, DEFROSTER

main55950-12070iAE82,CE80198308-198707

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12040iAE82,CE80198308-198707

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12030iAE82,CE80198308-198707

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-12020iAE82,CE80..USA198308-198508

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-12020iAE82,CE80..USA198308-198508

56111GLASS, WINDSHIELD

main56111-12560iAE82,CE80..SED..(DX,STD)198308-198707

*TL,T=5.3

main56111-12610iAE82,CE80..LB..DX198308-198707

*TL,T=5.3

main56111-12680iAE82..SED..(LE,LEL)198308-198707

*TL,T=5.3

main56111-12690iAE82..LB..LE198308-198707

*TL,T=5.3

main56111-12700iAE82,CE80..LB..DX198308-198707

*TL,T=5.3,DUPLATE

main56111-12710iAE82,CE80..SED..(DX,STD)198308-198707

*TL,T=5.3,PILKINGTON

56116SPACER, WINDSHIELD GLASS

main56116-24010×2iAE82,CE80198308-198707

9015960025

main90159-60025

9095001148

main90950-01148

9095006003

main90950-06003

18 parts on this diagram · 1 diagram in section
