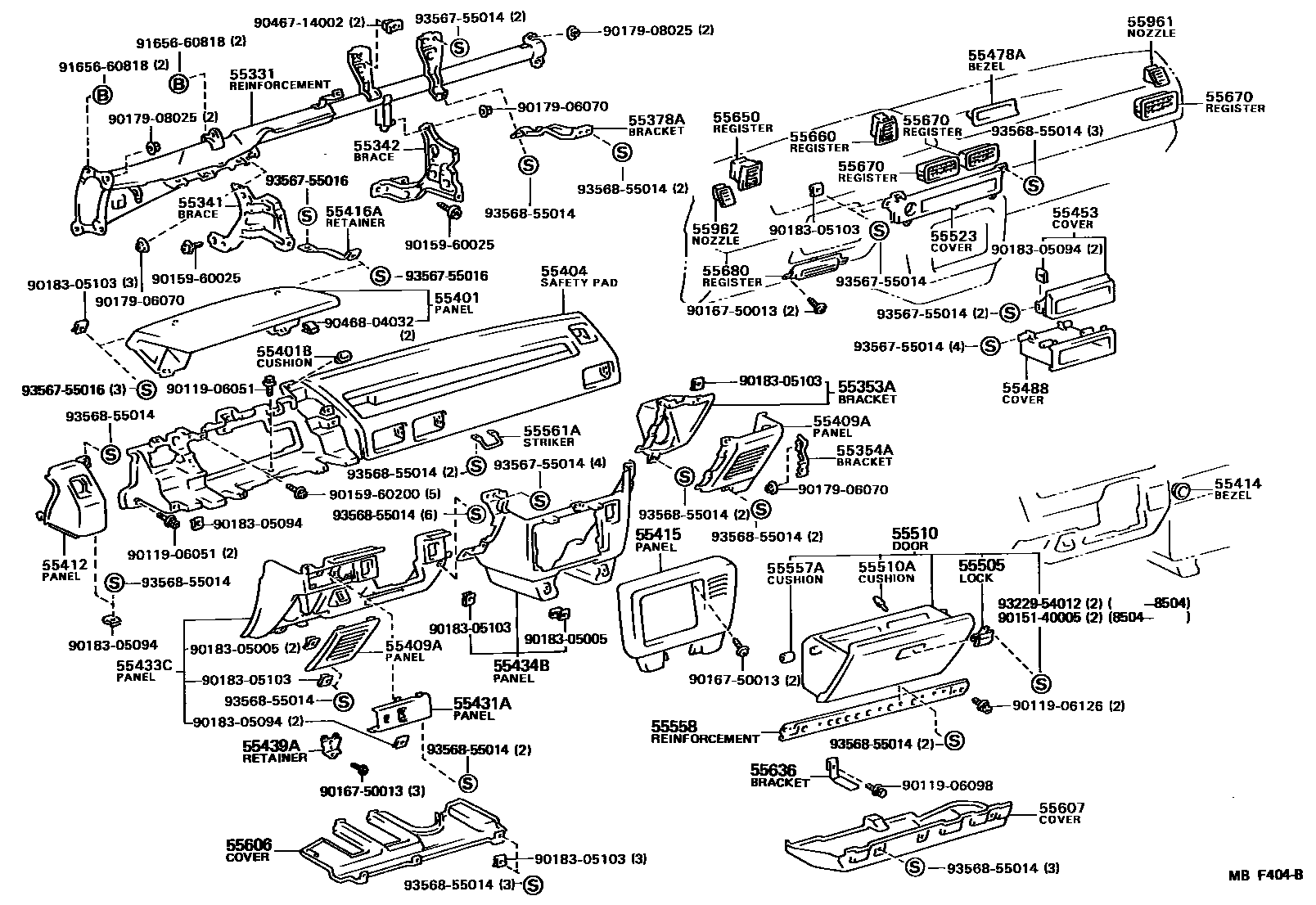

INSTRUMENT PANEL & GLOVE COMPARTMENT
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55353ABRACKET, SPEAKER MOUNTING, NO.1
55354ABRACKET, SPEAKER MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
LH,BEIGE,BEIGE,TRIM3#
LH,BROWN,BROWN,TRIM4#
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
RH,BEIGE,BEIGE,TRIM3#
RH,BROWN,BROWN,TRIM4#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
55412PANEL, INSTRUMENT CLUSTER FINISH, END
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55416ARETAINER, METER HOOD, NO.1
55431APANEL, INSTRUMENT PANEL FINISH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
W/*TIS,BROWN,BROWN,TRIM4#
W/*TIS,GRAY,GRAY,TRIM1#
W/*TIS,BLUE,BLUE,TRIM8#
W/*TIS,GRAY,GRAY,TRIM1#
W/*TIS,BLUE,BLUE,TRIM8#
W/*TIS,BROWN,BROWN,TRIM4#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
W/O *TIS,BROWN,BROWN,TRIM4#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
W/O *TIS,GRAY,GRAY,TRIM1#
W/O *TIS,BLUE,BLUE,TRIM8#
W/O *TIS,BROWN,BROWN,TRIM4#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3
55453COVER, RADIO TUNER OPENING
sub55522-20070
55478ABEZEL, AUTO CLOCK HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55488COVER, STEREO OPENING
sub55521-16030
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55510DOOR ASSY, GLOVE COMPARTMENT
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55523COVER, HEATER CONTROL OPENING
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
9011906051
main90119-06051
9011906098
main90119-06098
9011906126
main90119-06126
9015140005
main90151-40005
9015960025
main90159-60025
9015960200
main90159-60200
9016750013
main90167-50013
9017906070
main90179-06070
9017908025
main90179-08025
9018305005
main90183-05005
9018305094
main90183-05094
9018305103
main90183-05103
9046714002
main90467-14002
9046804032
main90468-04032
9165660818
main91656-60818
9322954012
main93229-54012
9356755014
main93567-55014
9356755016
main93567-55016
9356855014
main93568-55014
56 parts on this diagram · 2 diagrams in section
