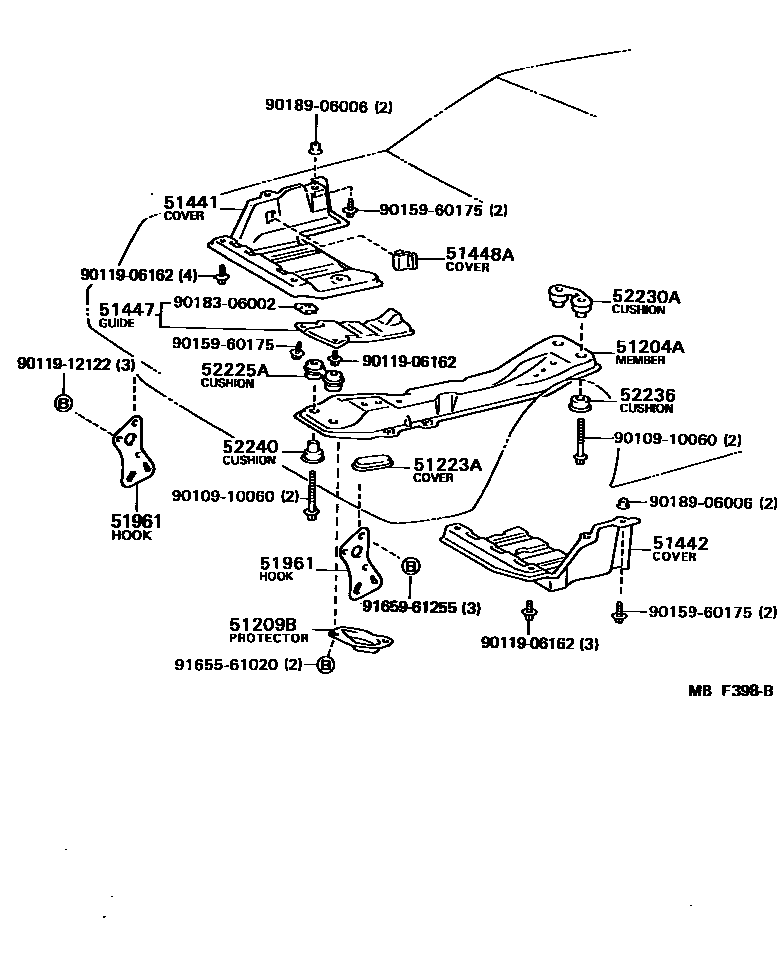

SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12030iAE82,CE80198308-198612

sub51204-12031

main51204-12031iAE82198612-198707

sub51204-12032

sub90119-10474

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE82,CE80198308-198707

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAE82,CE80198308-198707

sub51223-20030

51441COVER, ENGINE UNDER, NO.1

main51441-12130iAE82,CE80198405-198609

sub51441-12131

main51441-12131iAE82198609-198707

main51441-20080iAE82,CE80198308-198405

51442COVER, ENGINE UNDER, NO.2

main51442-20010iAE82,CE80..MTM198308-198707

main51442-20020iAE82,CE80..ATM198308-198707

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAE82198308-198707

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE82,CE80198308-198707

51961HOOK, NO.1

main51963-12080iAE82,CE80198308-198707

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20010iAE82,CE80198308-198707

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20010iAE82,CE80198308-198707

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20010iAE82,CE80198308-198707

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20010iAE82,CE80198308-198707

9010910060

main90109-10060

9011906162

main90119-06162

9011912122

main90119-12122

9015960175

main90159-60175

9018306002

main90183-06002

9018906006

main90189-06006

9165561020

main91655-61020

9165961255

main91659-61255

20 parts on this diagram · 1 diagram in section
