BRAKE BOOSTER & VACUUM TUBE

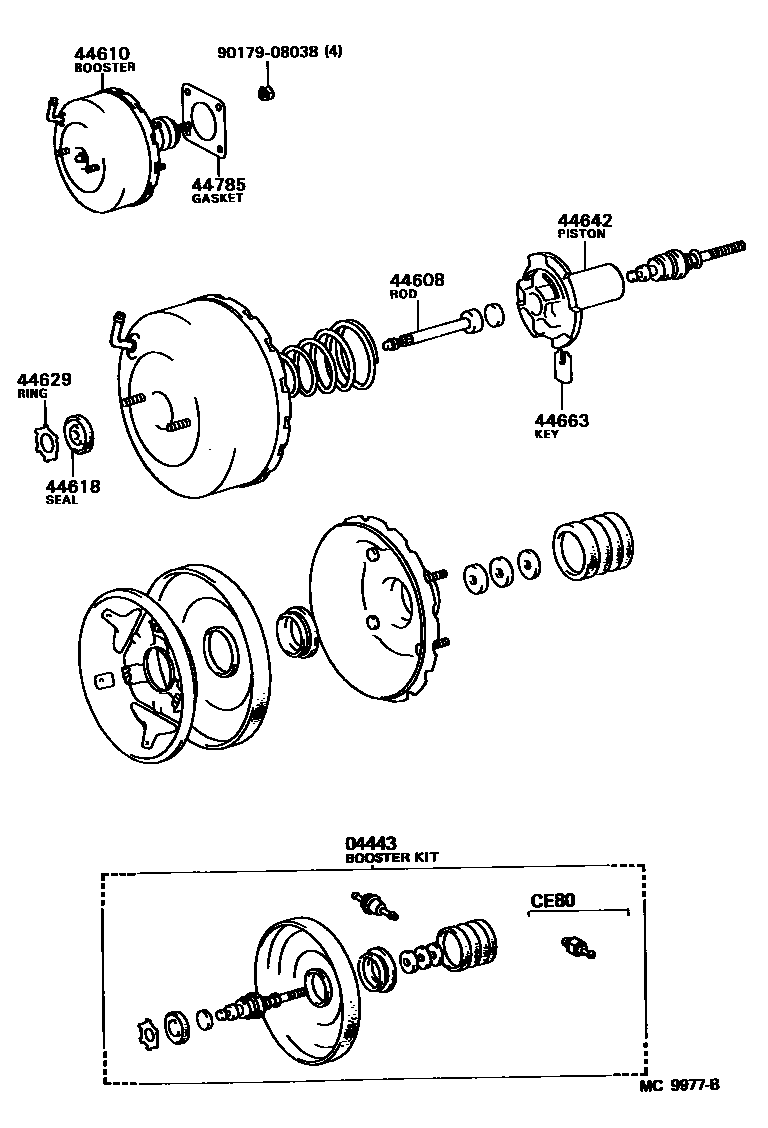

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-12340i198308-198707

main04443-12350i198308-198508

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520i198308-198707

44610BOOSTER ASSY, BRAKE

main44610-12520i198308-198707

44618SEAL, BOOSTER BODY

main44621-28120i198308-198707

44629RING, CIRCULAR INTERNAL

main44628-28120i198308-198707

44642PISTON, BRAKE BOOSTER

main44642-12520i198308-198707

44663KEY, VALVE STOPPER

main44635-28120i198308-198707

44785GASKET, BRAKE BOOSTER

main44785-32010i198308-198707

9017908038

main90179-08038

9 parts on this diagram · 2 diagrams in section
