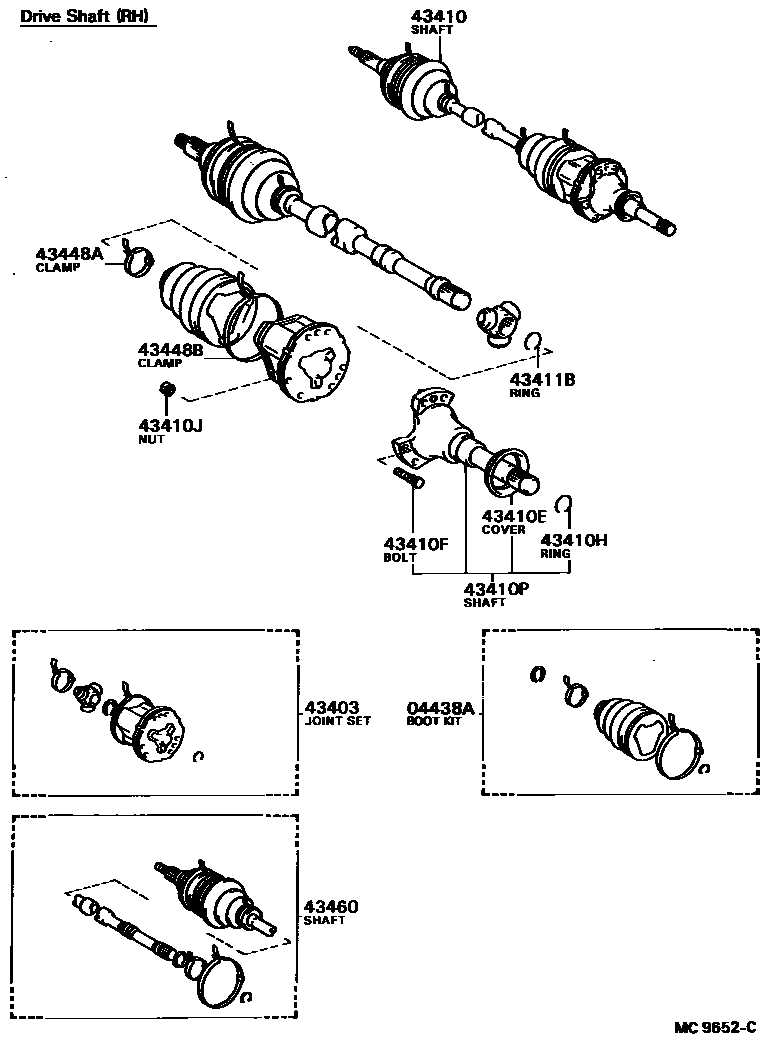

FRONT DRIVE SHAFT

0001 1 0002 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12020iAE82198308-198310

sub04438-12021

main04438-12021iAE82198310-198410

sub04438-17010

main04438-12030iCE80198410-198508

sub04438-12031

main04438-17010iAE82198410-198608

main04438-17011iAE82198608-198703

main04438-17012iAE82198703-198707

main04438-32021iCE80198308-198410

sub04438-12030

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12010iAE82198308-198703

main04438-12011iAE82198703-198707

main04438-32011iCE80198308-198508

sub04438-12050

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19035iAE82198308-198707

main43403-39016iCE80198308-198508

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12020iAE82198308-198310

sub43410-12021

main43410-12021iAE82198310-198410

sub43410-12060

main43410-12050iAE82198410-198707

sub43410-12080

main43410-12070iCE80198410-198508

sub43410-12H00

main43410-20020iCE80198308-198410

sub43410-12070

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010iAE82198308-198707

main41336-32010iCE80198308-198508

RH

main41336-32020iCE80198308-198508

LH

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iAE82,CE80198308-198707

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002iAE82198308-198707

main90521-27005iCE80198308-198508

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iAE82,CE80198308-198707

43410PSHAFT SUB-ASSY, FRONT DRIVE, RH

main41304-12010iAE82198308-198707

main41304-20010iCE80198308-198508

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iCE80198308-198707

main90520-23035iAE82198308-198703

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCE80198308-198508

main90949-01078iAE82198308-198707

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCE80198308-198508

main90949-01079iAE82198308-198707

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19045iAE82198308-198310

sub43460-19046

main43460-19046iAE82198310-198410

sub43460-19095

main43460-19195iAE82198410-198703

sub43460-19196

main43460-19196iAE82198703-198707

sub43460-19116

main43460-29016iCE80198308-198508

sub43460-19105

13 parts on this diagram · 2 diagrams in section
