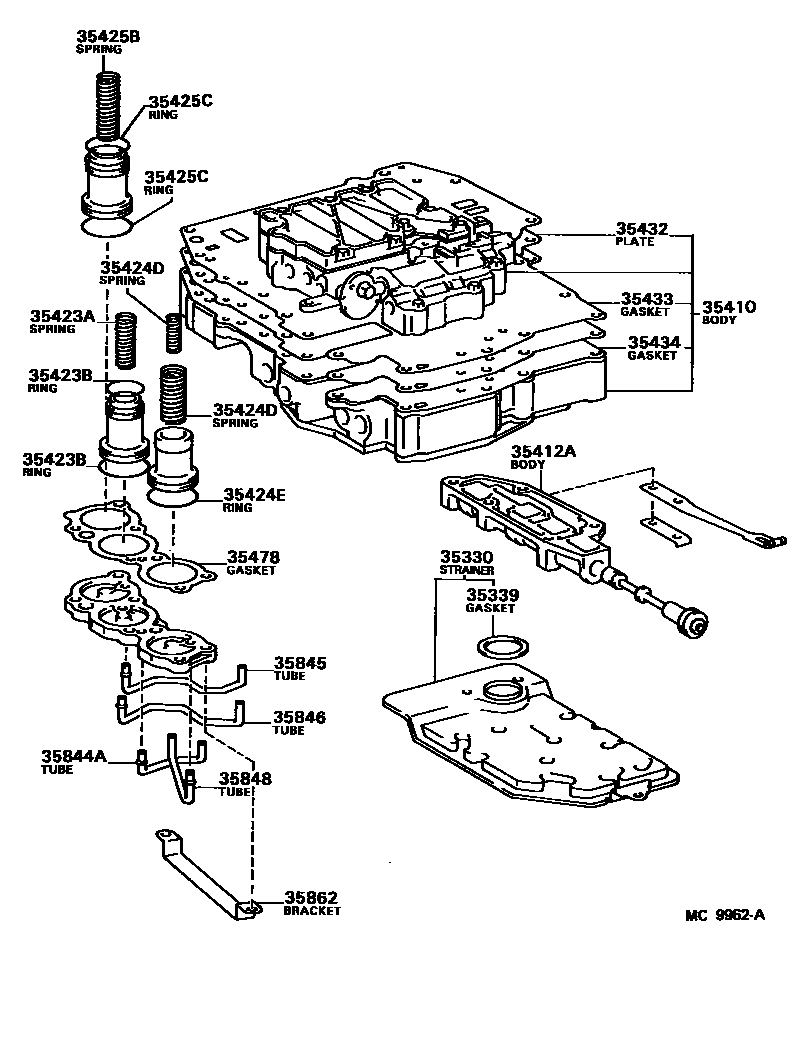

VALVE BODY & OIL STRAINER (ATM)
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
sub35480-32021
AISIN WARNER
TOYOTA
sub35410-20081
35412ABODY, MANUAL VALVE
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPR
LWR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
INNER
OUTER
OUTER
INNER
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPR
UPR
LWR
35433GASKET, VALVE BODY, NO.1
AISIN WARNER
35434GASKET, VALVE BODY, NO.2
35478GASKET, ACCUMULATOR COVER
35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1
AISIN WARNER
35845TUBE, RR CLUTCH ACCUMULATOR
35848TUBE, FORWARD CLUTCH ACCUMULATOR
AISIN WARNER
35862BRACKET, ACCUMULATOR APPLY TUBE
AISIN WARNER
19 parts on this diagram · 11 diagrams in section
