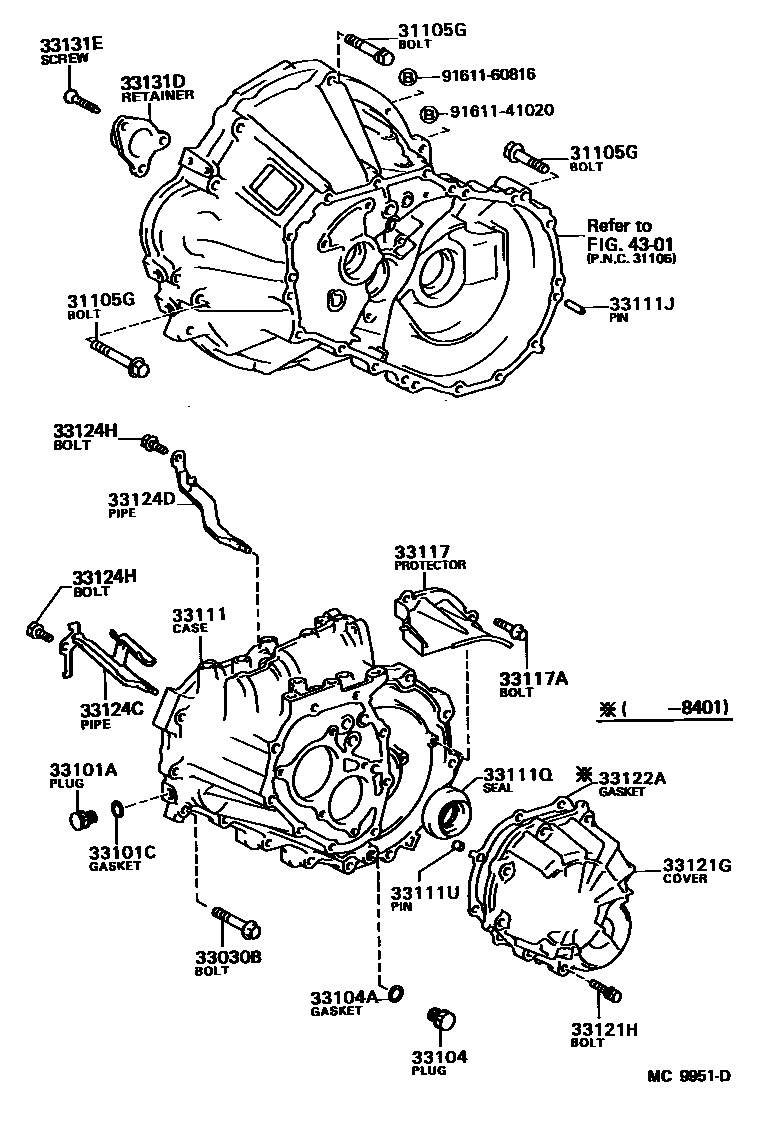

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE80..5F198408-198508

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-10077iAE82,CE80..MTM198308-198707

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12042iAE82..5F198308-198707

*12-1.25PX75-30,*12-1.25PX75-30

main90119-12168iAE82,CE80..MTM198308-198707

*12-1.25PX55-30,*12-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE80..MTM198308-198508

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAE82..5F198308-198707

*8-1.25PX51-28

sub90105-08353

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCE80..MTM198308-198508

main90341-18006iAE82..5F198308-198707

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iAE82,CE80..MTM198308-198408

sub90430-18008

main90430-18008iAE82,CE80..5F198408-198707

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE82,CE80..5F198308-198707

main90341-18057iCE80..MTM198308-198502

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAE82,CE80..MTM198308-198408

sub90430-18008

main90430-18008iAE82,CE80..5F198408-198707

33111CASE, MANUAL TRANSMISSION

main33111-12170iAE82..5F198308-198608

sub33111-16040

main33111-16040iAE82..5F198608-198707

sub33111-16070

sub90109-12073

main33111-32010iCE80..MTM198308-198309

sub33111-32011

main33111-32011iCE80..MTM198309-198404

sub33111-32H00

main33111-32012iCE80..MTM198404-198507

sub33111-32013

sub90341-16001

main33111-32013iCE80..5F198507-198508

sub33111-32014

sub33151-32011

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAE82,CE80..MTM198308-198707

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE82..5F198308-198707

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE82..5F198308-198707

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE82..5F198308-198707

sub33117-16010

main33117-32010iCE80..MTM198308-198408

sub33117-32011

main33117-32011iCE80..5F198408-198508

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE82,CE80..MTM198308-198707

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12020iAE82..5F198308-198707

sub33102-12021

main33102-32010iCE80..MTM198308-198404

sub33102-32011

main33102-32011iCE80..MTM198404-198508

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08057iCE80..MTM198308-198404

main90105-08089iCE80..MTM198404-198508

sub90105-08273

main91611-60835iAE82..5F198308-198707

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-12040iAE82..5F198308-198401

main33122-32010iCE80..MTM198308-198404

sub33122-32011

main33122-32011iCE80..MTM198404-198504

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE82..5F198308-198707

main33124-32010iCE80..MTM198308-198508

sub33124-32011

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE82..5F198308-198707

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60812iAE82..5F198308-198411

sub91611-B0812

main91611-60820iAE82..5F198411-198707

sub91611-G0820

main91651-60618iCE80..MTM198308-198508

33131DRETAINER, BEARING, FRONT

main33131-12070iAE82..5F198308-198707

sub33131-12071

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE82..5F198308-198707

4301

9161141020

main91611-41020

9161160816

main91611-60816

23 parts on this diagram · 2 diagrams in section
