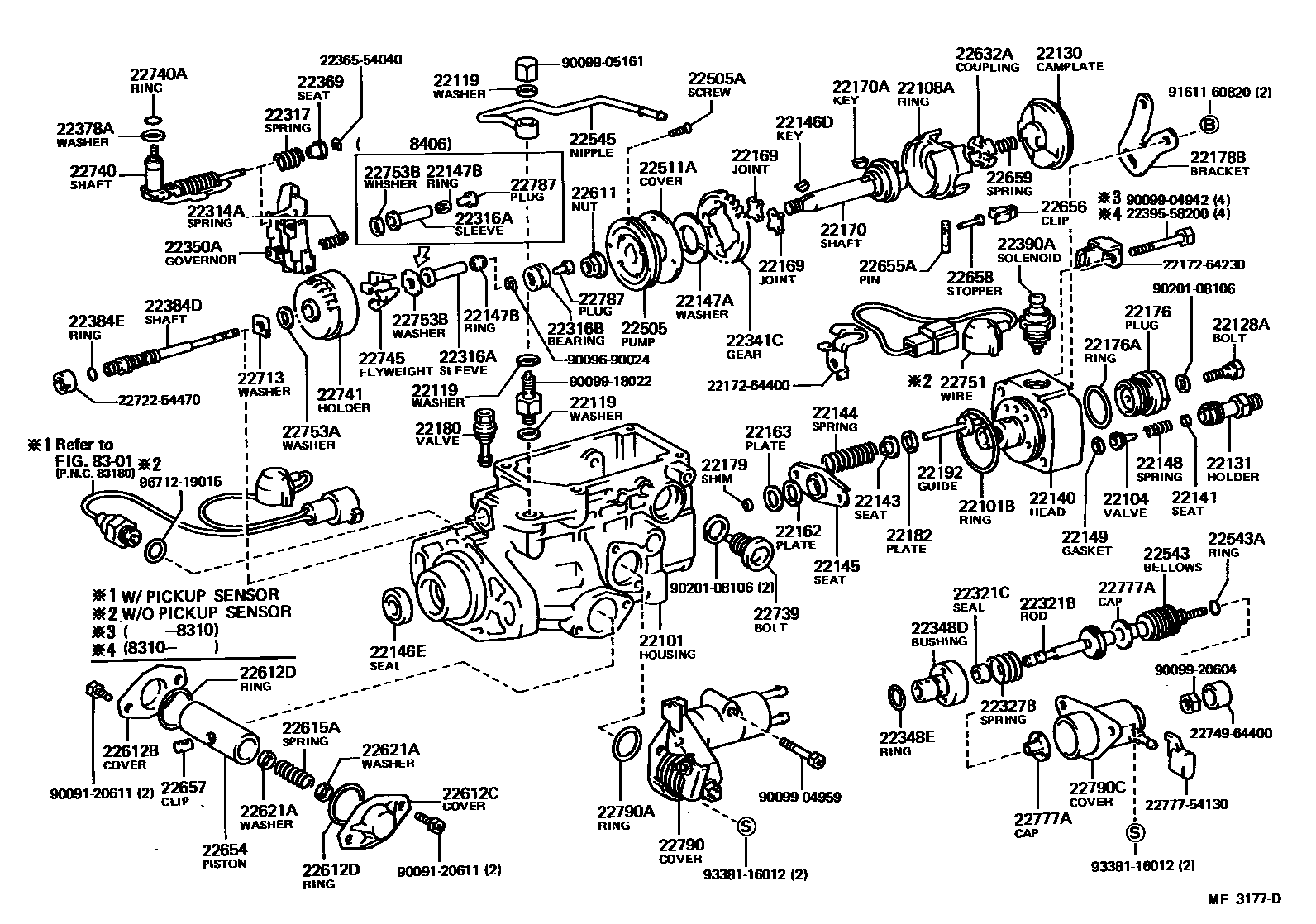

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W/PICKUP SENSOR
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
sub90201-12109
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
sub22544-64740
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9,T=1.9
T=2.0,T=2.0
T=2.1,T=2.1
T=2.2,T=2.2
T=2.3,T=2.3
T=2.4,T=2.4
T=2.5,T=2.5
T=2.6,T=2.6
T=2.7,T=2.7
T=2.8,T=2.8
T=2.9,T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5,T=0.5
T=0.8,T=0.8
T=1.0,T=1.0
T=1.2,T=1.2
T=1.5,T=1.5
T=1.8,T=1.8
T=2.0,T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
MARK 23
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.0
22321BROD, PUSH(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22321CSEAL, OIL(FOR PUSH ROD)
sub22544-54291
22327BSPRING(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22341CGEAR, GOVERNOR DRIVE
22348DBUSHING, GUIDE(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22348ERING, O(FOR GUIDE BUSHING)
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
sub22369-6A250
22378WASHER, DRAIN SCREW
sub22113-77090
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22019-6A510
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22543BELLOWS(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22543ARING, O(FOR BELLOWS SUB-ASSY)
22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
sub90099-14105
22615ASPRING, TIMER OUTER
K=2.30,L=37.9
22621AWASHER, TIMER ADJUSTING
T=0.5,T=0.5
T=1.0,T=1.0
T=0.2,T=0.2
T=0.2,T=0.2
T=0.5,T=0.5
T=1.0,T=1.0
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
sub22658-17840
22659SPRING, COUPLING
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05,T=1.05
T=1.25,T=1.25
T=1.45,T=1.45
T=1.65,T=1.65
T=1.85,T=1.85
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W/O PICKUP SENSOR
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22777CAP, RUBBER(FOR BELLOWS)
22777ACAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22787PLUG, GOVERNOR SLEEVE
L=5.9,L=5.9
L=6.1,L=6.1
L=6.3,L=6.3
L=4.3,T=4.3
L=4.5,L=4.5
L=4.7,L=4.7
L=4.9,L=4.9
L=5.1,L=5.1
L=5.3,L=5.3
L=5.5,L=5.5
L=5.7,L=5.7
L=3.3,L=3.3
L=3.4,L=3.4
L=3.5,L=3.5
L=3.6,L=3.6
L=3.7,L=3.7
L=3.8,L=3.8
L=3.9,L=3.9
L=4.0,L=4.0
L=4.1,L=4.1
L=3.0,L=3.0
L=3.1,L=3.1
L=3.2,L=3.2
22790COVER SUB-ASSY, TIMER
sub22790-6A020
22790ARING, O(FOR TIMER COVER)
sub90099-14105
22790CCOVER, TIMER(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
sub22790-64421
8301
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
2217264400CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64400
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
2274964400COLLAR, SMOKE SET ADJUSTING
main22749-64400
2277754130CAP, RUBBER(FOR BELLOWS)
main22777-54130
9009120611
main90091-20611
9009690024
main90096-90024
9009904942
main90099-04942
9009904959
main90099-04959
9009905161
main90099-05161
9009918022
main90099-18022
9009920604
main90099-20604
9020108106
main90201-08106
9161160820
main91611-60820
9338116012
main93381-16012
9671219015
main96712-19015
