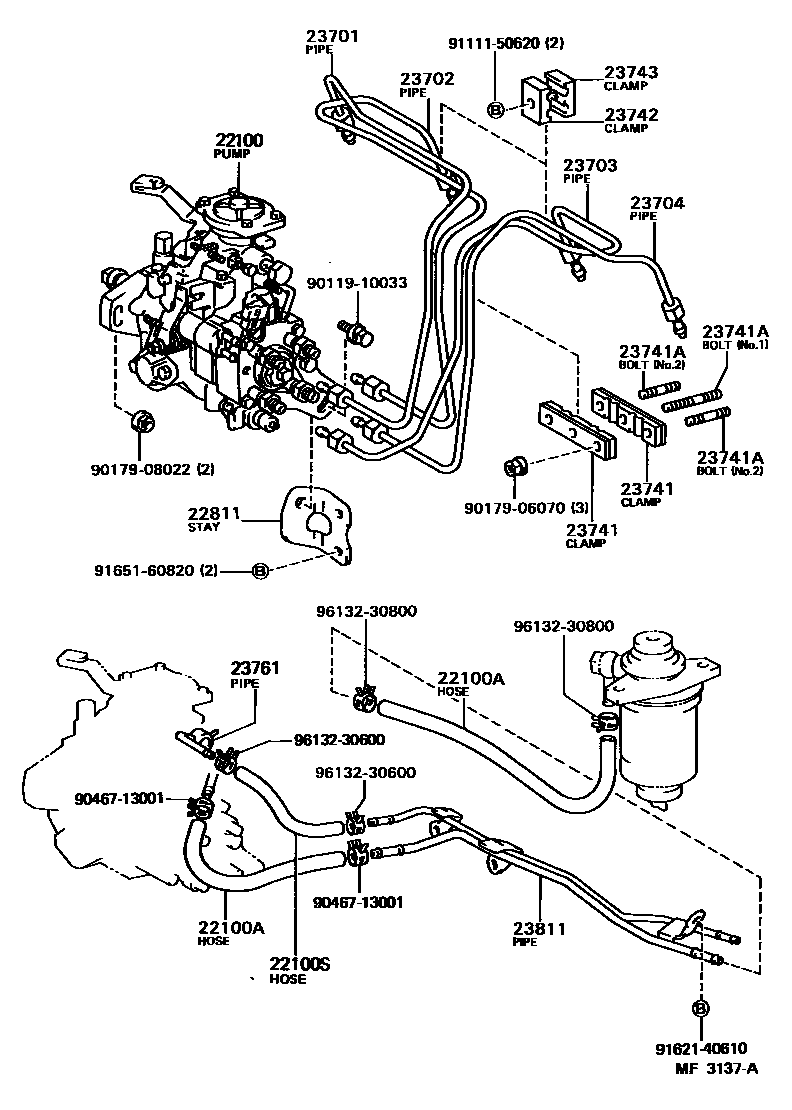

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
sub22100-64470
CALIFORNIA SPEC
sub22100-64470
W/TACHO METER PICKUP
COLD SPEC
COLD SPEC
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
PIPE TO PUMP
FILTER TO PIPE
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
sub23701-64050
23702PIPE SUB-ASSY, INJECTION, NO.2
sub23702-64050
23703PIPE SUB-ASSY, INJECTION, NO.3
sub23703-64050
23704PIPE SUB-ASSY, INJECTION, NO.4
sub23704-64050
23741CLAMP, INJECTION PIPE, NO.1
sub23741-64011
23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)
NO.2
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
23761PIPE, NOZZLE LEAKAGE, NO.1
sub23764-64041
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
9011910033
main90119-10033
9017906070
main90179-06070
9017908022
main90179-08022
9046713001
main90467-13001
9111150620
main91111-50620
9162140610
main91621-40610
9165160820
main91651-60820
9613230600
main96132-30600
9613230800
main96132-30800
23 parts on this diagram · 1 diagram in section
