MANIFOLD
1703
17118STAY, MANIFOLD
17141CPLUG, W/HEAD STRAIGHT SCREW
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17141EPLATE, EXHAUST MANIFOLD
17141FGASKET(FOR EXHAUST MANIFOLD PLATE)
sub89466-20020
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD SIDE
INTAKE MANIFOLD SIDE
17172GASKET, MANIFOLD TO CYLINDER HEAD
sub17172-14011
17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)
17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)
17233CBOLT(FOR COUNTER WEIGHT)
17233DSHIM(FOR COUNTER WEIGHT)
17233ERING, E(FOR COUNTER WEIGHT)
9011908367
main90119-08367
9011910274
main90119-10274
9011910329
main90119-10329
9017908059
main90179-08059
9020110444
main90201-10444
9161160830
main91611-60830
9161160855
main91611-60855
9211240820
main92112-40820
9321915016
main93219-15016
9418041000
main94180-41000
9418111000
main94181-11000

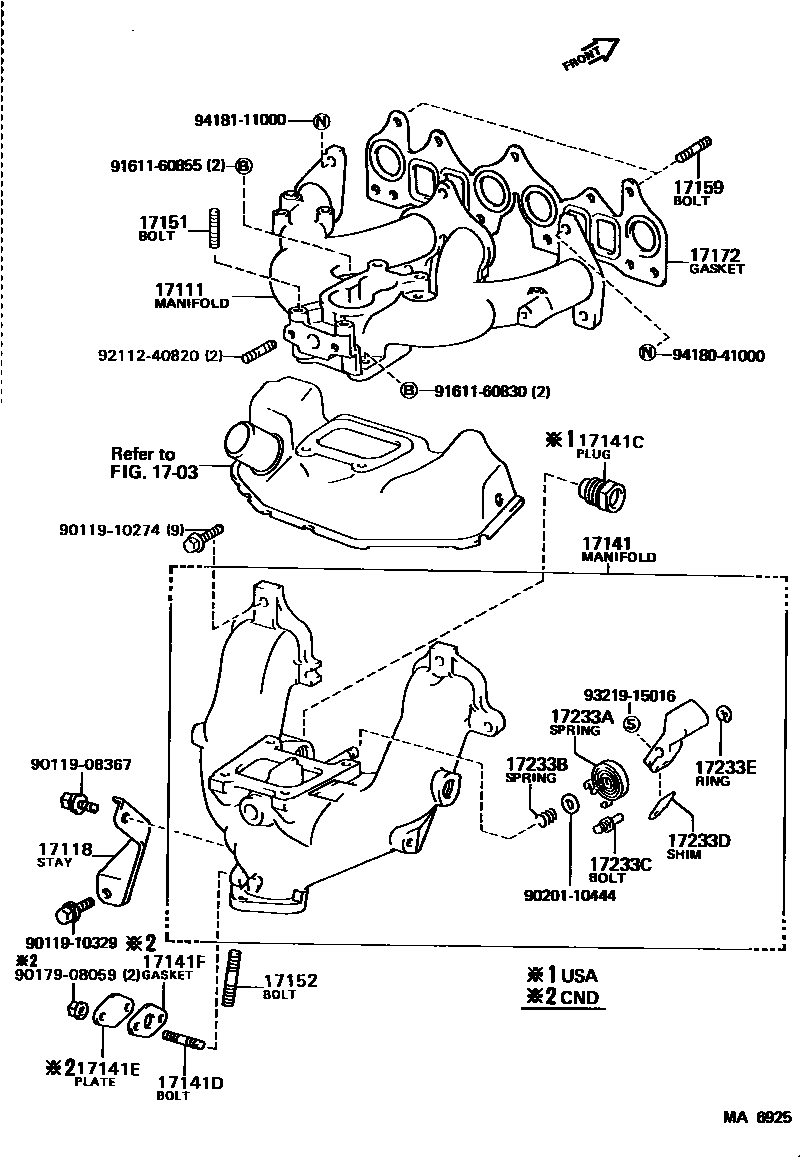

28 parts on this diagram · 2 diagrams in section
