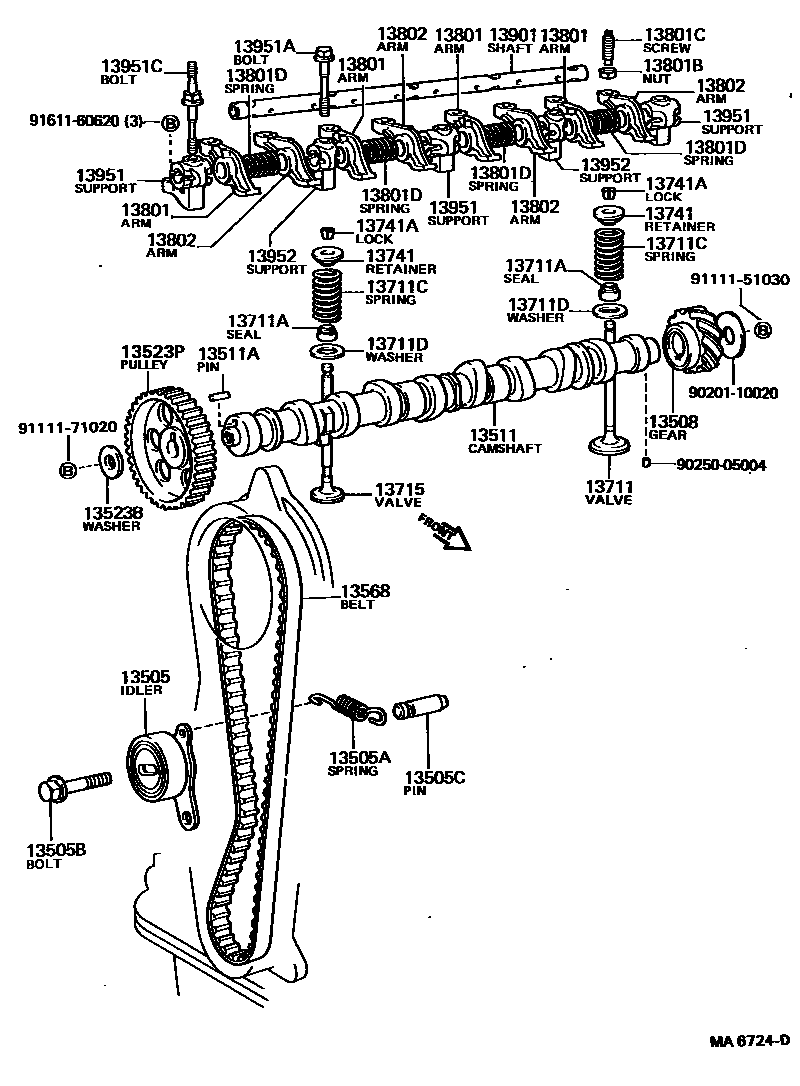

CAMSHAFT & VALVE
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13508GEAR SUB-ASSY, DISTRIBUTOR DRIVE
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523BWASHER, PLATE(FOR TIMING GEAR)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
9020110020
main90201-10020
9025005004
main90250-05004
9111151030
main91111-51030
9111171020
main91111-71020
9161160620
main91611-60620
32 parts on this diagram · 2 diagrams in section
